Blackmagic ATEM Mini Extreme ISO

39.000.000₫ 38.180.000₫
Công ty TNHH TMĐT Chu Vũ chuyên cung cấp Blackmagic Design Chính hãng giá tốt. Quý khách có nhu cầu vui lòng liên hệ: 0939 24 0939 để được tư vấn sản phẩm và giá tốt nhất tại thời điểm mua hàng.   Gồm các tính năng của ATEM Mini Extreme cộng với 9...
- +

Công ty TNHH TMĐT Chu Vũ chuyên cung cấp Blackmagic Design Chính hãng giá tốt. Quý khách có nhu cầu vui lòng liên hệ: 0939 24 0939 để được tư vấn sản phẩm và giá tốt nhất tại thời điểm mua hàng.

  Gồm các tính năng của ATEM Mini Extreme cộng với 9 record stream cho nguồn cấp dữ liệu sạch của tất cả các đầu vào. DaVinci project được lưu để biên tập và liên kết với các tệp Blackmagic RAW để hoàn thiện Ultra HD.

TÍNH NĂNG NỔI BẬT

• Có thiết kế dựa trên bảng điều khiển thu nhỏ.
• Hỗ trợ kết nối tối đa 8 camera hoặc máy tính.
• Hỗ trợ phát trực tuyến qua Ethernet hoặc điện thoại kết nối qua USB.
• Kết nối với điện thoại 5G hoặc 4G để phát trực tuyến từ xa trên di động.
• Ghi vào đĩa flash USB ở H.264.
• Hai stereo audio input để kết nối micrô để bàn hoặc micrô cài áo.
• Tự động chuyển đổi các tiêu chuẩn và đồng bộ lại tất cả các đầu vào HDMI.
• Bao gồm ATEM Software Control miễn phí cho Mac và Windows.
• Media nội bộ đồ họa 20 RGBA cho title, opening plate và logo.
• 4 upstream ATEM Advanced Chroma keyer cho màn hình xanh lục / xanh lam.
• 2 DVE độc lập cộng với SuperSource với 4 DVE bổ sung.
• Multiview16 chiều để giám sát tất cả các camera, ghi và trạng thái phát trực tuyến.
•9 record stream cho nguồn cấp dữ liệu sạch của tất cả các đầu vào
• DaVinci project được lưu để biên tập

Connections

Total Video Inputs: 8

Total Outputs: 4

Total Aux Outputs: 2

Total Audio Inputs : 2 x 3.5mm stereo mini jack.

Total Audio Outputs: 1 x 3.5mm stereo mini jack.

Timecode Connection: None

HDMI Video Inputs  :8 x HDMI type A, 10-bit HD switchable.2 channel embedded audio.

Video Input Re-Sync

On all 8 HDMI inputs.

Frame Rate and Format Converters

On all 8 HDMI inputs.

HDMI Program Outputs: 2

Ethernet

Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.

Computer Interface: 2 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.

ATEM Mini Extreme ISO

Standards

HD Video Input Standards

720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60

HD Video Output Standards

1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

Video Streaming Standards

1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

Ultra HD Video Standards: None

Video Sampling: 4:2:2 YUV

Color Precision: 10-bit

Color Space: Rec 709

HDMI Input Resolutions from Computers

1280 x 720p 50Hz, 59.94Hz and 60Hz
1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60Hz
1920 x 1080i 50, 59.94Hz and 60Hz

Colorspace Conversion

Hardware based real time.

Product Specifics

Upstream Keyers: 4

Downstream Keyers: 2

Advanced Chroma Keyers: Up to 4

Linear/Luma Keyers: Up to 4

Transition Keyer: DVE only.

Total Number of Layers: 9

Pattern Generators; 5

Color Generators: 2

DVE With Borders and Drop Shadow: 2

Interface: Minimum monitor resolution of 1366 x 768.

Audio: Audio Mixer

11 input x 2 channel mixer.
Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel.
Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.

Analog Input

Unbalanced stereo

Analog Input Delay

Up to 8 frames

Input Impedance

1.8k

Max Input Level

+6dBV

Mic Plug In Power

Available on both 3.5mm mini jack connections.

Streaming

Direct Streaming

ATEM Mini Extreme ISO supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB‑C.

Recording

Direct Recording Video and Audio

USB-C 3.1 Gen 1 expansion port can record directly to external media.

Video Recording

8 x HDMI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio.

1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio.

Audio Recording

10 x 2 channel audio inputs recorded as separate 24‑bit 48KHz .wav files. Including 2 x analog 2 channel audio inputs and 8 x HDMI 2 channel embedded audio inputs.

Switching

Program switching recorded as a DaVinci Resolve project .drp file.

Media Format

Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system.

Multi View Monitoring

Multi View Monitoring

Configurable to 16, 13, 10, 7 or 4 up views including Program, Preview, 8 HDMI inputs, SuperSource, Clean Feed, Media Player, Streaming Status, Recording Status and Audio Meters.

Multi View Video Standard: HD

Media Player

Media Players: 2

Channels

Fill and key for each Media Player.

Media Pool Still Image Capacity

20 with fill and key.

Media Pool Still Image Format

PNG, TGA, BMP, GIF, JPEG and TIFF.

Control

Control Panel

Built in control panel. Software control panel with camera control included. Supports optional hardware panel.

Control Panel Connection

Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM Mini Extreme ISO also supports direct USB‑C connection. Ethernet or USB‑C used for updating the software.

Control Panel Compatibility

Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel, ATEM 2 M/E Advanced Panel and ATEM 4 M/E Advanced Panel. ATEM Mini Extreme ISO can be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro.

Control Panel Included

ATEM Software Control Panel included free for Mac 10.14 Mojave, Mac 10.15 Catalina, Mac 11 Big Sur or later and Windows 10 64 bit only.

Software

Software Updates

Using USB or Ethernet connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility.

Configuration

Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.

Operating Systems

Mac icon

Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.

Windows Icon

Windows 10, 64-bit.

Power Requirements

Power Supply

1 x External 12V power supply.

Power Usage

36W

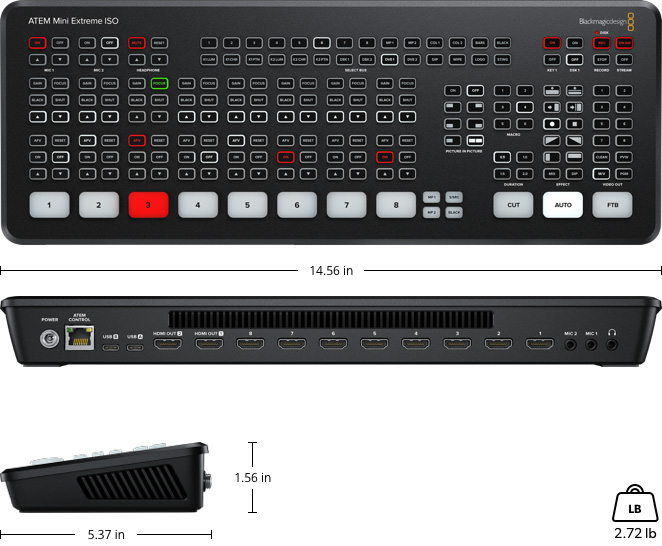

Physical Specifications

ATEM Mini Extreme ISO
