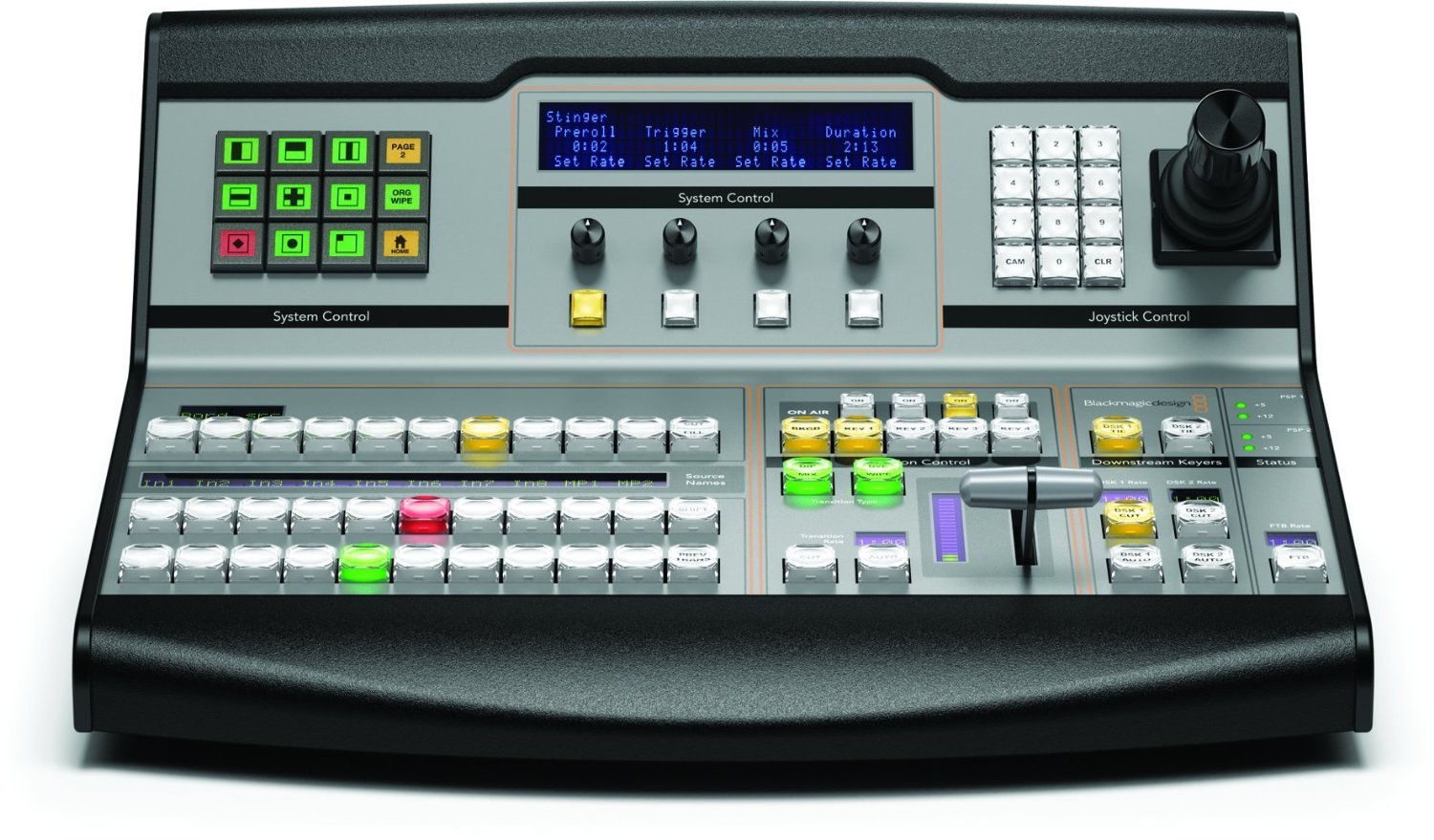

ATEM 1 M/E Broadcast Panel

Technical Specifications

Description

When the software control panel is too limited, the ATEM 1 M/E Broadcast Panel is a professional panel with the highest quality buttons, knobs and controls for the most demanding 24/7 live production environment. The ATEM 1 M/E Broadcast Panel is compact so it fits within a rack width! You get full control of your switcher, including cameras, transitions, keyers, fader, DVE control and more. ATEM 1 M/E Broadcast Panel connects via ethernet and includes a loop thru connection for more than one panel or computer.

Connections

Ethernet

10/100/1000 BaseT with loop output for additional control panels or computers.

Software Updates

1 x USB for firmware updates

Software

Software Applications

ATEM Software Control Panel.

Operating Systems

Mac OS X 10.10 Yosemite,
Mac OS X 10.11 El Capitan or later.

Aerospace Certified Embedded OS.

Windows 8.1 64-bit or
Windows 10 64-bit.

Aerospace Certified Embedded OS.

Product Specifics

Direct Cross Points

10

Shifted Cross Points

20

Crosspoint Button Type

Tri-Color LED.

Crosspoint Label

4 Character LED.

Next Transition Selectors

BKG, Key 1 - Key 4.

On-Air indicator

Yes

DSK Transition Selectors

Auto, Cut, Tie/Pvw.

Preview Transition

Yes

Transition Rate Displays

Yes

Menu Control

LCD Bitmap Buttons.

Fader Bar

1

3 Axis Joystick

Yes

Numeric Keypad

Yes

Power Requirements

Redundant Power

Yes

Input Voltage

100V to 240V internal power supply.

Power Usage

40W

Physical Specifications

Environmental Specifications

Operating Temperature

0-40 degrees celsius

Storage Temperature

-20 - 60 degrees celsius

Relative Humidity

Up to 95%

What's Included

ATEM 1 M/E Broadcast Panel

Power Supply

Warranty

Product Warranty

12 Month Limited Manufacturer's Warranty

Repair Policy

Warranty details can be found in the ATEM Switchers Operation Manual in the support page at www.blackmagicdesign.com
