Total Video Inputs
10
Công ty TNHH TMĐT Chu Vũ chuyên cung cấp Blackmagic Design Chính hãng giá tốt. Quý khách có nhu cầu vui lòng liên hệ: 0939 24 0939 để được tư vấn sản phẩm và giá tốt nhất tại thời điểm mua hàng.
Connections
Total Video Outputs
6
SDI Rates
1.5G, 3G, 6G, 12G
Total Audio Inputs
2 x balanced 1/4 inch Jack,
1 x 5 pin XLR Talkback.
Total Audio Outputs
1 x 5 pin XLR Talkback.
SDI Audio Inputs
16 Ch embedded audio on all SDI inputs.
SDI Audio Outputs
16 Ch embedded audio on all SDI outputs.
Timecode Connections
None
Reference Input
Tri-Sync or Black Burst.
Video Input Re-Sync
On all 10 inputs.
Frame Rate and Format Converters
On all 10 inputs.
SDI Aux Outputs
Any of the 6 SDI outputs.
SDI Preview Outputs
Any of the 6 SDI outputs.
SDI Program Outputs
Any of the 6 SDI outputs.
Down Converted SDI Program Output
1
Webcam Output
1 x USB-C supporting 720p or 1080p at PGM frame rate.
Total Multi Views
1 x 12G-SDI
Control Panel Connection
Ethernet. Direct connection between panel and chassis, or via network.
Internal Timecode Generator
Yes
Talkback
RJ45 for 3rd party talkback systems.
Tally Output
Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).
Ethernet
Supports 10/100/1000 BASE-T.
Computer Interface
1 x USB-C supports USB 2.0
Standards
SD Video Standards
None
HD Video Standards
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97
2160p30, 2160p50, 2160p59.94, 2160p60
SDI Compliance
SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B.
SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10.
Video Sampling
4:2:2
Color Precision
10-bit.
Color Space
REC 709, REC 2020
SDI Auto Switching
Automatically detects between 1.5G‑SDI, level A or level B 3G‑SDI, 6G‑SDI and 12G‑SDI.
Product Specifics
Upstream Keyers
4
Downstream Keyers
1
Advanced Chroma Keyers
4
DVEs
1
Linear/Luma Keyers
5
Transition Keyer (Stinger/DVE)
1 Stinger, 1 DVE.
Total Number of Layers
7
Pattern Generators
5
Color Generators
2
Control Panel
Front fascia emergency switching, software or optional hardware panel.
Routable Windows
16
Windows Source Labels
Yes
Tally
Red for program and green for preview indication.
Talkback Support
Yes
Mix Minus Support
Yes
Multi View Monitoring
Multi View Monitoring
1 x multi view configurable to 16, 13, 10, 7 or 4 up views. Includes monitoring of Program, Preview, Inputs, Media Players, Key Masks, Clean Feed with optional labels and audio meters.
Multi View Video Standard
HD or Ultra HD
Media Player
Media Players
2
Channels
Fill and key for each media player.
Media Pool Still Image Capacity
20
Media Pool Clip Capacity
2 x up to 2160p60.
Media Player Clip Length in 720 HD
1600 frames.
Media Player Clip Length in 1080 HD
800 frames.
Media Player Clip Length in 2160 UHD
200 frames.
Media Pool Still Image Format
PNG, TGA, BMP, GIF, JPEG and TIFF.
Media Pool Video File Format
TGA Sequence.
Media Pool Audio File Format
WAV, MP3 and AIFF.
Display

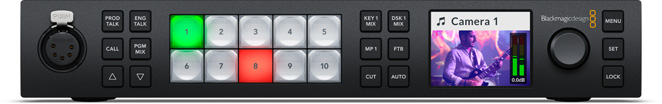

Front panel
Built in 2.2 inch LCD monitor for video, 10 LED buttons for setup and emergency switching, 4 source buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.
Processing
Processing Delay
< 10 lines.
Audio Mixer
28 Channel mixer
Selectable On/Off/Audio-Follow-Video.
Level and Peak metering.
Master gain control.
6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter.
Down Conversion
1 x selectable HD down converted output
