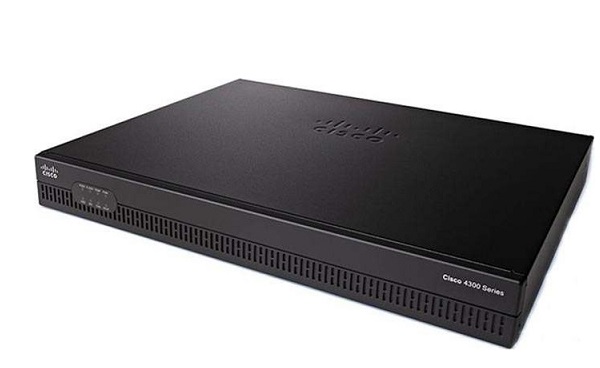

Router Integrated ISR 4321 Cisco ISR4321/K9
- Cisco 4321 Integrated Services router is design to deliver advanced services to the small enterprise branch environment. It delivers 50Mbps thoughtput by default. With pay-as-you-grow performance, you can increase forwarding capacity to 100Mbps by buying FL-4320-PERF-K9 licenses.
- Support 2-port 10/100/1000Mbps WAN or LAN.
- Aggregate Throughput: 50Mbps to 100Mbps.
- Memory: 4GB (default)/8GB (maximum).
- Rack height: 1 RU.
- Dimensions (H x W x D): 44.55 x 369.57 x 294.64 mm.
- Weight: 9.19 Kg.
Specifications
Model | Cisco ISR4321/K9 |
Aggregate Throughput | 50 Mbps to 100 Mbps |
Total onboard WAN or LAN 10/100/1000 ports | 2 |
RJ-45-based ports | 2 |
SFP-based ports | 1 |
NIM slots | 2 |
OIR (all I/O modules) | Yes |
Onboard ISC slot | 1 |
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes) |
4 GB |
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) | 8 GB |
Default flash memory | 4 GB |
Maximum flash memory | 8 GB |
External USB 2.0 slots (type A) | 1 |
USB console port -type B mini (up to 115.2 kbps) | 1 |
Serial console port - RJ45 (up to 115.2 kbps) | 1 |
Serial auxiliary port - RJ45 (up to 115.2 kbps) | 1 |
Power-supply options | External: AC and PoE |
AC input voltage | 100 to 240 VAC autoranging |
AC input frequency | 47 to 63 Hz |
AC input current range, AC power supply (maximum) | 1.5 to 0.6A |
AC input surge current | 90A peak and less than 3 Arms per half cycle |
Typical power (no modules) (watts) | 36 |
Maximum power with AC power supply (watts) | 125 |
Maximum power with PoE power supply (platform only) (watts) | 260 |
Maximum endpoint PoE power available from PoE power supply (watts) | 120 |
