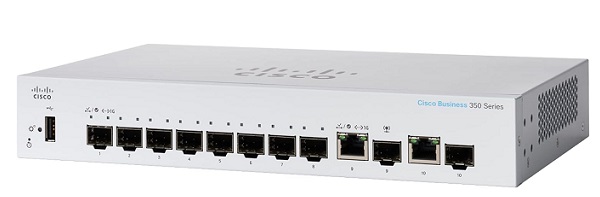

Thiết bị mạng Cisco CBS350-8S-E-2G-EU

CBS350-8S-E-2G-EU ~~9.680.000₫~~ 8.200.000₫

10-Port Gigabit Ethernet Managed Switch CISCO CBS350-8S-E-2G - Support 8 x Gigabit SFP Slots; 2 x Gigabit Ethernet combo. - Jumbo frames: Frame sizes up to 9K bytes. The default MTU is 2K bytes. - MAC table: 16K addresses. - Console port: Cisco standard RJ45 console port. - Flash: 256MB - CPU: 800MHz ARM - DRAM: 512MB - Dimensions...

Số lượng:

- +

10-Port Gigabit Ethernet Managed Switch CISCO CBS350-8S-E-2G

- Support 8 x Gigabit SFP Slots; 2 x Gigabit Ethernet combo.

- Jumbo frames: Frame sizes up to 9K bytes. The default MTU is 2K bytes.

- MAC table: 16K addresses.

- Console port: Cisco standard RJ45 console port.

- Flash: 256MB

- CPU: 800MHz ARM

- DRAM: 512MB

- Dimensions (W x D x H): 280 x 170 x 44 mm.

- Weight: 1.0kg.

Đặc tính kỹ thuật

Performance
Switching capacity and forwarding rate	Capacity in Millions of Packets per Second (mpps) (64-byte packets): 14.88
Switching capacity and forwarding rate	Switching Capacity in Gigabits per Second (Gbps): 20.0
General
Jumbo frames	Frame sizes up to 9K bytes. The default MTU is 2K bytes
MAC table	16K addresses
Discovery
Bonjour	The switch advertises itself using the Bonjour protocol
Link Layer Discovery Protocol (LLDP) (802.1ab) with LLDP‑MED extensions	LLDP allows the switch to advertise its identification, configuration, and capabilities to neighboring devices that store the data in a MIB. LLDP-MED is an enhancement to LLDP that adds the extensions needed for IP phones
Cisco Discovery Protocol	The switch advertises itself using the Cisco Discovery Protocol. It also learns the connected device and its characteristics via Cisco Discovery Protocol
Hardware
Power consumption (worst case)	System Power Consumption: 110V=11.1W 220V=11.9W
	Power Consumption (with PoE)
	Heat Dissipation (BTU/hr): 40.6
Ports	Total System Ports: 10 x Gigabit Ethernet
	RJ-45 Ports: 8 x Gigabit SFP Slots
	Combo Ports (RJ45 + Small form-factor pluggable [SFP]): 2 x Gigabit Ethernet combo
Console port	Cisco standard RJ45 console port
USB slot	USB Type-A slot on the front panel of the switch for easy file and image management
Buttons	Reset button
Cabling type	Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T
LEDs	System, Link/Act, PoE, Speed
Flash	256 MB
CPU	800 MHz ARM
DRAM	512 MB
Packet Buffer	1.5 MB
Environmental
Unit dimensions (W x D x H)	280 x 170 x 44 mm
Unit weight	1.0kg
Power	100-240V 50-60 Hz, external
Certification	UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Operating temperature	32° to 122°F (0° to 50°C)
Storage temperature	-13° to 158°F (-25° to 70°C)
Operating humidity	10% to 90%, relative, noncondensing
Storage humidity	10% to 90%, relative, noncondensing
Acoustic noise and Mean Time Between Failure (MTBF)	FAN (Number): Fanless
	Acoustic Noise: N/A
	MTBF at 25°C (hours): 2,242,229
Layer 2 Switching
Spanning Tree Protocol	Standard 802.1d Spanning Tree support Fast convergence using 802.1w (Rapid Spanning Tree [RSTP]), enabled by default Multiple Spanning Tree instances using 802.1s (MSTP); 8 instances are supported Per-VLAN Spanning Tree Plus (PVST+) and Rapid PVST+ (RPVST+); 126 instances are supported
Port grouping/link aggregation	Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP) - Up to 8 groups - Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation
VLAN	Support for up to 4,094 VLANs simultaneously Port-based and 802.1Q tag-based VLANs; MAC-based VLAN; protocol-based VLAN; IP subnet-based VLAN Management VLAN Private VLAN with promiscuous, isolated, and community port Private VLAN Edge (PVE), also known as protected ports, with multiple uplinks Guest VLAN, unauthenticated VLAN Dynamic VLAN assignment via RADIUS server along with 802.1x client authentication CPE VLAN
Voice VLAN	Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS. Voice Services Discovery Protocol (VSDP) delivers network wide zero-touch deployment of voice endpoints and call control devices
Multicast TV VLAN	Multicast TV VLAN allows the single multicast VLAN to be shared in the network while subscribers remain in separate VLANs. This feature is also known as Multicast VLAN Registration (MVR)
VLAN Translation	Support for VLAN One-to-One Mapping. In VLAN One-to-One Mapping, on an edge interface customer VLANs (C-VLANs) are mapped to service provider VLANs (S-VLANs) and the original C-VLAN tags are replaced by the specified S-VLAN
Q-in-Q	VLANs transparently cross a service provider network while isolating traffic among customers
Selective Q-in-Q	Selective Q-in-Q is an enhancement to the basic Q-in-Q feature and provides, per edge interface, multiple mappings of different C-VLANs to separate S-VLANs Selective Q-in-Q also allows configuring of Ethertype (Tag Protocol Identifier [TPID]) of the S-VLAN tag Layer 2 protocol tunneling over Q-in-Q is also supported
Generic VLAN Registration Protocol (GVRP)/Generic Attribute Registration Protocol (GARP)	Generic VLAN Registration Protocol (GVRP) and Generic Attribute Registration Protocol (GARP) enable automatic propagation and configuration of VLANs in a bridged domain
Unidirectional Link Detection (UDLD)	UDLD monitors physical connection to detect unidirectional links caused by incorrect wiring or cable/port faults to prevent forwarding loops and black holing of traffic in switched networks
Dynamic Host Configuration Protocol (DHCP) Relay at Layer 2	Relay of DHCP traffic to DHCP server in different VLAN; works with DHCP Option 82
Internet Group Management Protocol (IGMP) versions 1, 2, and 3 snooping	IGMP limits bandwidth-intensive multicast traffic to only the requesters; supports 2K multicast groups (source-specific multicasting is also supported)
IGMP Querier	IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router
IGMP proxy	The IGMP proxy provides a mechanism for multicast forwarding based on IGMP membership information without the need for more complicated multicast routing protocols
Head-of-Line (HOL) blocking	HOL blocking prevention
Loopback Detection	Loopback detection provides protection against loops by transmitting loop protocol packets out of ports on which loop protection has been enabled. It operates independently of STP
Layer 3
IPv4 routing	Wirespeed routing of IPv4 packets Up to 990 static routes and up to 128 IP interfaces
IPv6 routing	Wirespeed routing of IPv6 packets
Layer 3 Interface	Configuration of Layer 3 interface on physical port, Link Aggregation (LAG), VLAN interface, or loopback interface
Classless Interdomain Routing (CIDR)	Support for classless interdomain routing
RIP v2	Support for Routing Information Protocol version 2 for dynamic routing
