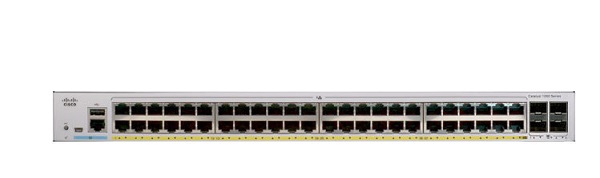

Thiết bị mạng Cisco CBS350-48T-4X-EU

CBS350-48T-4X-EU 29.900.000₫ 27.000.000₫
48-port Gigabit Ethernet + 4-port 10G SFP+ Managed Switch CISCO CBS350-48T-4X-EU - Support 48-port Gigabit Ethernet and 4-port 10G SFP+. - Switching Capacity: 176Gbps. - Stacking: Up to 4 units in a stack. Up to 192 ports managed as a single system with hardware failover. - Jumbo frames: Frame sizes up to 9K bytes....
- +

48-port Gigabit Ethernet + 4-port 10G SFP+ Managed Switch CISCO CBS350-48T-4X-EU

- Support 48-port Gigabit Ethernet and 4-port 10G SFP+.

- Switching Capacity: 176Gbps.

- Stacking: Up to 4 units in a stack. Up to 192 ports managed as a single system with hardware failover.

- Jumbo frames: Frame sizes up to 9K bytes. The default MTU is 2K bytes.

- MAC table: 16K addresses.

- Cabling type: Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T.

- Flash: 256MB.

- CPU: 800MHz ARM.

- DRAM: 512MB.

- Dimensions (W x D x H): 445 x 288 x 44 mm.

- Weight: 3.95kg.

Đặc tính kỹ thuật

Model CBS350-48T-4X-EU
Performance
Capacity in Millions of Packets per Second (mpps) (64-byte packets) 130.94mpps
Switching Capacity 176Gbps
General
Jumbo frames Frame sizes up to 9K bytes. The default MTU is 2K bytes
MAC table 16K addresses
Buttons Reset button
Cabling type Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T
LEDs System, Link/Act, Speed
Flash 256 MB
CPU 800MHz ARM
DRAM 512 MB
Packet buffer 3 MB
Ports
Total System Ports 48 Gigabit Ethernet + 4 x 10G
RJ-45 Ports 48 x Gigabit Ethernet
Combo Ports (RJ45 + Small form-factor pluggable [SFP]) 4 x SFP+
Console port Cisco standard mini USB Type-B/RJ45 console port
USB slot USB Type-A slot on the front panel of the switch for easy file and image management
Power consumption (worst case)
System Power Consumption 110V=51.01W
220V=50.58W
Heat Dissipation (BTU/hr) 93.32
Environmental
Unit dimensions (W x D x H) 445 x 288 x 44 mm
Unit weight 3.95kg
Power 100-240V, 50-60 Hz, internal, universal
Certification UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Operating temperature -5° to 50°C
Storage temperature -25° to 70°C
Operating humidity 10% to 90%, relative, noncondensing
Storage humidity 10% to 90%, relative, noncondensing
Acoustic noise and Mean Time Between Failure (MTBF)
FAN (Number) 1
Acoustic Noise 25°C: 29.7 dBA
MTBF at 25°C (hours) 1,452,667
Stacking
Hardware stacking Up to 4 units in a stack. Up to 192 ports managed as a single system with hardware failover
High availability Fast stack failover delivers minimal traffic loss. Support link aggregation across multiple units in a stack
Plug-and-play stacking configuration/management Active/standby for resilient stack control
Autonumbering
Hot swap of units in stack
Ring and chain stacking options, auto stacking port speed, flexible stacking port options
High-speed stack interconnects Cost-effective high-speed 10G fiber interfaces.
