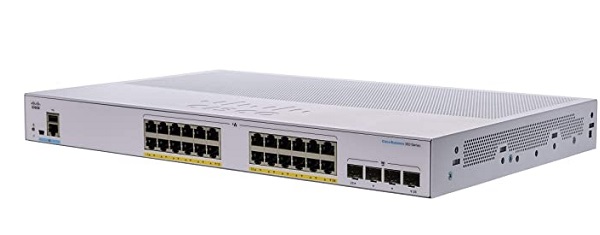

Thiết bị mạng Cisco CBS350-24P-4G-EU

CBS350-24P-4G-EU ~~14.680.000₫~~ 12.800.000₫

28-port Gigabit Ethernet PoE Managed Switch CISCO CBS350-24P-4G-EU - Support 24 Gigabit PoE+ ports with 195W power budget and 4 Gigabit SFP ports. - Switching Capacity: 56Gbps. - Jumbo frames: Frame sizes up to 9K bytes. The default MTU is 2K bytes. - MAC table: 16K addresses. - Cabling type: Unshielded Twisted Pair (UTP) Category...

Số lượng:

- +

28-port Gigabit Ethernet PoE Managed Switch CISCO CBS350-24P-4G-EU

- Support 24 Gigabit PoE+ ports with 195W power budget and 4 Gigabit SFP ports.

- Switching Capacity: 56Gbps.

- Jumbo frames: Frame sizes up to 9K bytes. The default MTU is 2K bytes.

- MAC table: 16K addresses.

- Cabling type: Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T.

- Flash: 256MB.

- CPU: 800MHz ARM.

- DRAM: 512MB.

- Dimensions (W x D x H): 268 x 308 x 44 mm.

- Weight: 2.49kg.

Đặc tính kỹ thuật

Model	CBS350-24P-4G-EU
Performance
Capacity in millions of packets per second (mpps) (64-byte packets)	41.66 mpps
Switching capacity	56Gbps
General
Jumbo frames	Frame sizes up to 9K bytes. The default MTU is 2K bytes
MAC table	16K addresses
Hardware
Total System Ports	28 x Gigabit Ethernet
RJ-45 Ports	24 x Gigabit Ethernet
Combo Ports (RJ45 + Small form-factor pluggable [SFP])	4 x SFP
Number of Ports That Support PoE	24
Power Dedicated to PoE	195W
Console port	Cisco standard mini USB Type-B/RJ45 console port
USB slot	USB Type-A slot on the front panel of the switch for easy file and image management
Buttons	Reset button
Cabling type	Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T
LEDs	System, Link/Act, PoE, Speed
Flash	256 MB
CPU	800 MHz ARM
DRAM	512 MB
Packet buffer	1.5 MB
Power consumption (worst case)
System Power Consumption	110V=34.42W 220V=33.09W
Power Consumption (with PoE)	110V=239.7W 220V=236.4W
Heat Dissipation (BTU/hr)	820.62
Environmental
Unit dimensions (W x D x H)	445 x 299 x 44 mm
Unit weight	3.53 kg
Power	100-240V, 50-60 Hz, internal, universal
Certification	UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Operating temperature	-5° to 50°C
Storage temperature	-25° to 70°C
Operating humidity	10% to 90%, relative, noncondensing
Storage humidity	10% to 90%, relative, noncondensing
Acoustic noise and Mean Time Between Failure (MTBF)
FAN (Number)	Fanless
MTBF at 25°C (hours)	698,220
