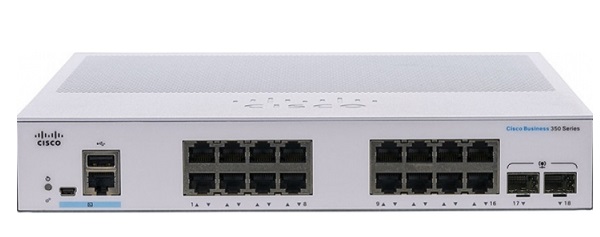

Thiết bị mạng Cisco CBS350-16T-2G-EU

CBS350-16T-2G-EU 8.000.000₫ 7.560.000₫
18-Port Gigabit Ethernet Managed Switch CISCO CBS350-16T-2G-EU - Support 16-port Gigabit Ethernet and 2-port SFP. - Switching Capacity: 36.0Gbps. - Jumbo frames: Frame sizes up to 9K bytes. The default MTU is 2K bytes. - MAC table: 16K addresses. - Cabling type: Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T. - Flash: 256MB. - CPU:...
- +

18-Port Gigabit Ethernet Managed Switch CISCO CBS350-16T-2G-EU

- Support 16-port Gigabit Ethernet and 2-port SFP.

- Switching Capacity: 36.0Gbps.

- Jumbo frames: Frame sizes up to 9K bytes. The default MTU is 2K bytes.

- MAC table: 16K addresses.

- Cabling type: Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T.

- Flash: 256MB.

- CPU: 800MHz ARM.

- DRAM: 512MB.

- Dimensions (W x D x H): 268 x 272 x 44 mm.

- Weight: 1.78kg.

Đặc tính kỹ thuật

Model CBS350-16T-2G-EU
Performance
Capacity in Millions of Packets per Second (mpps) (64-byte packets) 26.78mpps
Switching Capacity 36.0Gbps
General
Jumbo frames Frame sizes up to 9K bytes. The default MTU is 2K bytes
MAC table 16K addresses
Buttons Reset button
Cabling type Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T
LEDs System, Link/Act, Speed
Flash 256 MB
CPU 800MHz ARM
DRAM 512 MB
Packet buffer 1.5 MB
Ports
Total System Ports 18 x Gigabit Ethernet
RJ-45 Ports 16 x Gigabit Ethernet
Combo Ports (RJ45 + Small form-factor pluggable [SFP]) 2 x SFP
Console port Cisco standard mini USB Type-B/RJ45 console port
USB slot USB Type-A slot on the front panel of the switch for easy file and image management
Discovery
Bonjour The switch advertises itself using the Bonjour protocol
Link Layer Discovery Protocol (LLDP) (802.1ab) with LLDP‑MED extensions LLDP allows the switch to advertise its identification, configuration, and capabilities to neighboring devices that store the data in a MIB. LLDP-MED is an enhancement to LLDP that adds the extensions needed for IP phones
Cisco Discovery Protocol The switch advertises itself using the Cisco Discovery Protocol. It also learns the connected device and its characteristics via Cisco Discovery Protocol
Power consumption (worst case)
System Power Consumption 110V=18.63W
220V=18.37W
Heat Dissipation (BTU/hr) 64.46
Environmental
Unit dimensions (W x D x H) 268 x 272 x 44 mm
Unit weight 1.78 kg
Power 100-240V, 50-60 Hz, internal, universal
Certification UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Operating temperature -5° to 50°C
Storage temperature -25° to 70°C
Operating humidity 10% to 90%, relative, noncondensing
Storage humidity 10% to 90%, relative, noncondensing
Acoustic noise and Mean Time Between Failure (MTBF)
FAN (Number) Fanless
MTBF at 25°C (hours) 2,165,105
