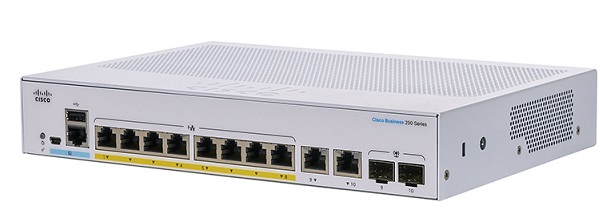

Thiết bị mạng Cisco CBS250-8PP-E-2G-EU

CBS250-8PP-E-2G-EU ~~5.880.000₫~~ 5.250.000₫

10-Port Gigabit Ethernet PoE Smart Switch CBS250-8PP-E-2G-EU - Support 8 10/100/1000 PoE+ ports with 45W power budget and 2 Gigabit copper/SFP combo ports. - Switching Capacity: 20.0Gbps. - Jumbo frames: Frame sizes up to 9K bytes. The default MTU is 2K bytes. - MAC table: 8K addresses. - Cabling type: Unshielded Twisted Pair (UTP) Category...

Số lượng:

- +

10-Port Gigabit Ethernet PoE Smart Switch CBS250-8PP-E-2G-EU

- Support 8 10/100/1000 PoE+ ports with 45W power budget and 2 Gigabit copper/SFP combo ports.

- Switching Capacity: 20.0Gbps.

- Jumbo frames: Frame sizes up to 9K bytes. The default MTU is 2K bytes.

- MAC table: 8K addresses.

- Cabling type: Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T.

- Flash: 256 MB.

- CPU: 800MHz ARM.

- DRAM: 512MB.

- Dimensions (W x D x H): 268 x 185 x 44 mm.

- Weight: 1.53 kg.

Đặc tính kỹ thuật

Model	CBS250-8PP-E-2G-EU
Performance
Capacity in millions of packets per second (64-byte packets)	14.88 mpps
Switching capacity	20.0 Gbps
General
Jumbo frames	Frame sizes up to 9K bytes. The default MTU is 2K bytes
MAC table	8K addresses
Hardware
Total system ports	10 Gigabit Ethernet
RJ-45 ports	8 Gigabit Ethernet
Combo ports (RJ-45 + SFP)	2 Gigabit Ethernet combo
Number of ports that support PoE	8
Power dedicated to PoE	45W
Console port	Cisco Standard mini USB Type-B/RJ45 console port
USB slot	Cisco Standard mini USB Type-B/RJ45 console port
USB slot	USB Type-A slot on the front panel of the switch for easy file and image management
Buttons	Reset button
Cabling type	Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T
LEDs	System, Link/Act, PoE, Speed
Flash	256 MB
CPU	800 MHz ARM
DRAM	512 MB
Packet buffer	1.5 MB
Environmental
Unit dimensions (W x D x H)	268 x 185 x 44 mm
Unit weight	1.53 kg
Power	100 to 240V, 50 to 60 Hz, external
Certification	UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Operating temperature	23° to 122°F (-5° to 50°C)
Storage temperature	-13° to 158°F (-25° to 70°C)
Operating humidity	10% to 90%, relative, noncondensing
Storage humidity	10% to 90%, relative, noncondensing
Power consumption (worst case)
System power consumption	110V=14.34W 220V=14.47W
Power consumption (with PoE)	110V=65.29W 220V=66.02W
Heat dissipation (BTU/hr)	222.79
Acoustic noise and Mean Time Between Failures (MTBF)
Fan (number)	Fanless
MTBF at 25°C (hours)	1,706,649
