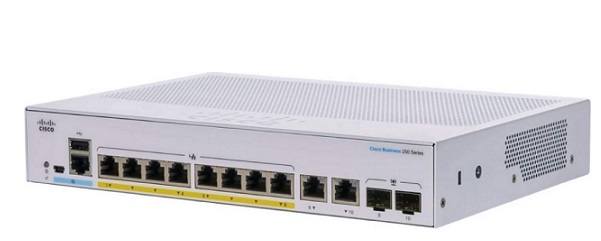

Thiết bị mạng Cisco CBS250-8FP-E-2G-EU

CBS250-8FP-E-2G-EU ~~6.790.000₫~~ 6.300.000₫

10-Port Gigabit Ethernet PoE Unmanaged Switch CISCO CBS250-8FP-E-2G-EU - Support 8 Gigabit PoE+ ports with 120W power budget. - Support 2 Gigabit copper/SFP combo ports. - Switching capacity: 20Gbps. - Jumbo frames: Frame sizes up to 9K bytes. The default MTU is 2K byte. - Cabling type: Unshielded Twisted Pair (UTP) Category 5e or better...

Số lượng:

- +

10-Port Gigabit Ethernet PoE Unmanaged Switch CISCO CBS250-8FP-E-2G-EU

- Support 8 Gigabit PoE+ ports with 120W power budget.

- Support 2 Gigabit copper/SFP combo ports.

- Switching capacity: 20Gbps.

- Jumbo frames: Frame sizes up to 9K bytes. The default MTU is 2K byte.

- Cabling type: Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T.

- Flash: 256MB.

- CPU: 800MHz ARM.

- CPU memory: 512MB.

- Dimensions (W x D x H): 268 x 185 x 44 mm.

- Weight: 1.53kg.

Đặc tính kỹ thuật

Model	CBS250-8FP-E-2G-EU
Performance
Capacity in millions of packets per second (mpps) (64-byte packets)	14.88 mpps
Switching capacity	20Gbps
General
Jumbo frames	Frame sizes up to 9K bytes. The default MTU is 2K bytes
MAC table	8K addresses
Hardware
Total system ports	10 Gigabit Ethernet
RJ-45 ports	8 Gigabit Ethernet
Combo ports (RJ-45 + SFP)	2 Gigabit Ethernet combo
Number of ports that support PoE	8
Power dedicated to PoE	120W
Console port	Cisco Standard mini USB Type-B/RJ45 console port
USB slot	USB Type-A slot on the front panel of the Switch for easy file and image management
Buttons	Reset button
Cabling type	Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T
LEDs	System, Link/Act, PoE, Speed
Flash	256MB
CPU	800MHz ARM
DRAM	512 MB
Packet buffer	1.5 MB
Power consumption (worst case)
System power consumption	110V=17.07W 220V=16.68W
Power consumption (with PoE)	110V=147.48W 220V=145.26W
Heat dissipation (BTU/hr)	503.22
Environmental
Unit dimensions (W x D x H)	268 x 185 x 44 mm
Unit weight	1.53kg
Power	100 to 240V, 50 to 60 Hz, external
Certification	UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Operating temperature	-5° to 50°C
Storage temperature	-25° to 70°C
Operating humidity	10% to 90%, relative, noncondensing
Storage humidity	10% to 90%, relative, noncondensing
Acoustic noise and Mean Time Between Failures (MTBF)
Fan (number)	Fanless
MTBF at 25°C (hours)	1,706,649

Chức năng nhận xét chưa được kích hoạt

Chức năng đánh giá chưa được kích hoạt
