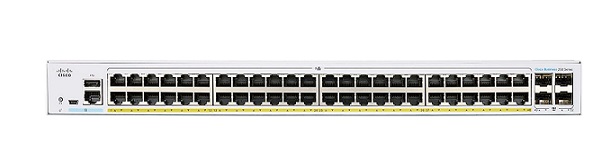

Thiết bị mạng Cisco CBS250-48P-4G-EU

CBS250-48P-4G-EU 23.790.000₫ 20.500.000₫
52-Port Gigabit Ethernet PoE Unmanaged Switch CISCO CBS250-48P-4G-EU - Support 48 Gigabit PoE+ ports with 370W power budget and 4 Gigabit SFP ports. - Switching capacity: 104Gbps. - Jumbo frames: Frame sizes up to 9K bytes. The default MTU is 2K byte. - Cabling type: Unshielded Twisted Pair (UTP) Category 5e or better for...
- +

52-Port Gigabit Ethernet PoE Unmanaged Switch CISCO CBS250-48P-4G-EU

- Support 48 Gigabit PoE+ ports with 370W power budget and 4 Gigabit SFP ports.

- Switching capacity: 104Gbps.

- Jumbo frames: Frame sizes up to 9K bytes. The default MTU is 2K byte.

- Cabling type: Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T.

- Flash: 256MB.

- CPU: 800MHz ARM.

- CPU memory: 512MB.

- Dimensions (W x D x H): 445 x 350 x 44 mm.

- Weight: 5.43kg.

Đặc tính kỹ thuật

Model CBS250-48P-4G-EU
Performance
Capacity in millions of packets per second (mpps) (64-byte packets) 77.38 mpps
Switching capacity 104Gbps
General
Jumbo frames Frame sizes up to 9K bytes. The default MTU is 2K bytes
MAC table 8K addresses
Hardware
Total system ports 52 Gigabit Ethernet
RJ-45 ports 48 Gigabit Ethernet
Combo ports (RJ-45 + SFP) 4 SFP
Number of ports that support PoE 48
Power dedicated to PoE 370W
Console port Cisco Standard mini USB Type-B/RJ45 console port
USB slot USB Type-A slot on the front panel of the switch for easy file and image management
Buttons Reset button
Cabling type Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T
LEDs System, Link/Act, PoE, Speed
Flash 256MB
CPU 800MHz ARM
DRAM 512 MB
Packet buffer 3 MB
Power consumption (worst case)
System power consumption 110V=60.77W
220V=59.73W
Power consumption (with PoE) 110V=451.95W
220V=445.85W
Heat dissipation (BTU/hr) 1,542.12
Environmental
Unit dimensions (W x D x H) 445 x 350 x 44 mm
Unit weight 5.43 kg
Power 100 to 240V, 50 to 60 Hz, internal, universal
Certification UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Operating temperature -5° to 50°C
Storage temperature -25° to 70°C
Operating humidity 10% to 90%, relative, noncondensing
Storage humidity 10% to 90%, relative, noncondensing
Acoustic noise and Mean Time Between Failures (MTBF)
Fan (number) 1
Acoustic noise 25°C: 37.3 dBA
MTBF at 25°C (hours) 856,329
