Thiết bị mạng Cisco CBS250-24PP-4G-EU

CBS250-24PP-4G-EU ~~9.280.000₫~~ 9.100.000₫

28-Port Gigabit Ethernet PoE Smart Switch CBS250-24PP-4G-EU - Support 24 10/100/1000 PoE+ ports with 100W power budget and 4 Gigabit SFP ports. - Switching Capacity: 56Gbps. - Jumbo frames: Frame sizes up to 9K bytes. The default MTU is 2K bytes. - MAC table: 8K addresses. - Cabling type: Unshielded Twisted Pair (UTP) Category 5e...

Số lượng:

- +

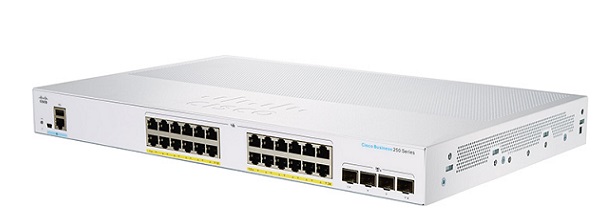

28-Port Gigabit Ethernet PoE Smart Switch CBS250-24PP-4G-EU

- Support 24 10/100/1000 PoE+ ports with 100W power budget and 4 Gigabit SFP ports.

- Switching Capacity: 56Gbps.

- Jumbo frames: Frame sizes up to 9K bytes. The default MTU is 2K bytes.

- MAC table: 8K addresses.

- Cabling type: Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T.

- Flash: 256 MB.

- CPU: 800MHz ARM.

- DRAM: 512MB.

- Dimensions (W x D x H): 445 x 299 x 44 mm.

- Weight: 3.53kg.

Đặc tính kỹ thuật

Model	CBS250-24PP-4G-EU
Performance
Capacity in millions of packets per second (64-byte packets)	41.66 mpps
Switching capacity	56.0Gbps
General
Jumbo frames	Frame sizes up to 9K bytes. The default MTU is 2K bytes
MAC table	8K addresses
Hardware
Total system ports	28 Gigabit Ethernet
RJ-45 ports	24 Gigabit Ethernet
Combo ports (RJ-45 + SFP)	4 SFP
Number of ports that support PoE	24
Power dedicated to PoE	100W
Console port	Cisco Standard mini USB Type-B/RJ45 console port
USB slot	Cisco Standard mini USB Type-B/RJ45 console port
USB slot	USB Type-A slot on the front panel of the switch for easy file and image management
Buttons	Reset button
Cabling type	Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T
LEDs	System, Link/Act, PoE, Speed
Flash	256 MB
CPU	800 MHz ARM
DRAM	512 MB
Packet buffer	1.5 MB
Environmental
Unit dimensions (W x D x H)	445 x 299 x 44 mm
Unit weight	3.53 kg
Power	100 to 240V, 50 to 60 Hz, internal, universal
Certification	UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Operating temperature	23° to 122°F (-5° to 50°C)
Storage temperature	-13° to 158°F (-25° to 70°C)
Operating humidity	10% to 90%, relative, noncondensing
Storage humidity	10% to 90%, relative, noncondensing
Power consumption (worst case)
System power consumption	110V=34.4W 220V=33.11W
Power consumption (with PoE)	110V=138.9W 220V=138.1W
Heat dissipation (BTU/hr)	476.68
Acoustic noise and Mean Time Between Failures (MTBF)
Fan (number)	Fanless
MTBF at 25°C (hours)	698,220
