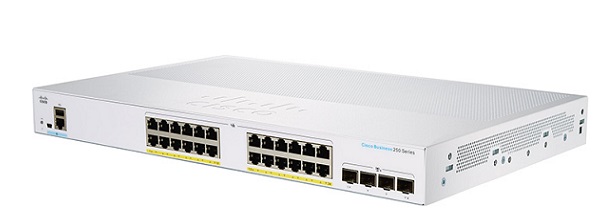

24-Port Gigabit Ethernet + 4-Port 10G SFP+ PoE Smart Switch CBS250-24FP-4X-EU
- Support 24 10/100/1000 PoE+ ports with 370W power budget and 4 10Gigabit SFP+ ports.
- Switching Capacity: 128.0Gbps.
- Jumbo frames: Frame sizes up to 9K bytes. The default MTU is 2K bytes.
- MAC table: 8K addresses.
- Cabling type: Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T.
- Flash: 256 MB.
- CPU: 800MHz ARM.
- DRAM: 512MB.
- Dimensions (W x D x H): 445 x 345 x 44 mm.
- Weight: 4.6kg.
Đặc tính kỹ thuật
Model | CBS250-24FP-4X-EU |
Performance | |
Capacity in millions of packets per second (64-byte packets) | 95.23 mpps |
Switching capacity | 128.0Gbps |
General | |
Jumbo frames | Frame sizes up to 9K bytes. The default MTU is 2K bytes |
MAC table | 8K addresses |
Hardware | |
Total system ports | 24 Gigabit Ethernet + 4 10 Gigabit Ethernet |
RJ-45 ports | 24 Gigabit Ethernet |
Combo ports (RJ-45 + SFP) | 4 SFP+ |
Number of ports that support PoE | 24 |
Power dedicated to PoE | 370W |
Console port | Cisco Standard mini USB Type-B/RJ45 console port |
USB slot | Cisco Standard mini USB Type-B/RJ45 console port |
USB slot | USB Type-A slot on the front panel of the switch for easy file and image management |
Buttons | Reset button |
Cabling type | Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T |
LEDs | System, Link/Act, PoE, Speed |
Flash | 256 MB |
CPU | 800 MHz ARM |
DRAM | 512 MB |
Packet buffer | 1.5 MB |
Environmental | |
Unit dimensions (W x D x H) | 445 x 345 x 44 mm |
Unit weight | 4.6kg |
Power | 100 to 240V, 50 to 60 Hz, internal, universal |
Certification | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
Operating temperature | 23° to 122°F (-5° to 50°C) |
Storage temperature | -13° to 158°F (-25° to 70°C) |
Operating humidity | 10% to 90%, relative, noncondensing |
Storage humidity | 10% to 90%, relative, noncondensing |
Power consumption (worst case) | |
System power consumption | 110V=47.14W 220V=47.01W |
Power consumption (with PoE) | 110V=451.8W 220V=437.4W |
Heat dissipation (BTU/hr) | 1,543.99 |
Acoustic noise and Mean Time Between Failures (MTBF) | |
Fan (number) | 1 |
Acoustic noise | 25°C: 34.8 dBA |
MTBF at 25°C (hours) | 698,220 |
