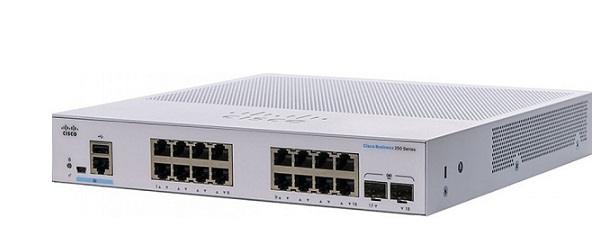

Thiết bị mạng Cisco CBS250-16T-2G-EU

CBS250-16T-2G-EU ~~6.000.000₫~~ 5.550.000₫

18-Port Gigabit Ethernet Smart Switch CBS250-16T-2G-EU - Support 16-port Gigabit Ethernet and 2-port Small Form-Factor Pluggable (SFP). - Switching Capacity: 36.0Gbps. - Jumbo frames: Frame sizes up to 9K bytes. The default MTU is 2K bytes. - MAC table: 8K addresses. - Cabling type: Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T. - Flash:...

Số lượng:

- +

18-Port Gigabit Ethernet Smart Switch CBS250-16T-2G-EU

- Support 16-port Gigabit Ethernet and 2-port Small Form-Factor Pluggable (SFP).

- Switching Capacity: 36.0Gbps.

- Jumbo frames: Frame sizes up to 9K bytes. The default MTU is 2K bytes.

- MAC table: 8K addresses.

- Cabling type: Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T.

- Flash: 256 MB.

- CPU: 800MHz ARM.

- DRAM: 512MB.

- Dimensions (W x D x H): 268 x 272 x 44 mm.

- Weight: 1.78kg.

Đặc tính kỹ thuật

Model	CBS250-16T-2G-EU
Performance
Capacity in millions of packets per second (mpps) (64-byte packets)	26.78
Switching capacity	36.0Gbps
General
Jumbo frames	Frame sizes up to 9K bytes. The default MTU is 2K bytes
MAC table	8K addresses
System power consumption	110V=18.63W 220V=18.37W
Heat dissipation (BTU/hr)	64.46
Buttons	Reset button
Cabling type	Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T
LEDs	System, Link/Act, Speed
Flash	256 MB
CPU	800MHz ARM
DRAM	512 MB
Packet buffer	1.5 MB
Ports
Total system ports	18 Gigabit Ethernet
RJ-45 ports	16 Gigabit Ethernet
Combo ports (RJ-45 + SFP)	2 Small Form-Factor Pluggable (SFP)
Console port	Cisco Standard mini USB Type-B/RJ45 console port
USB slot	USB Type-A slot on the front panel of the Switch for easy file and image management
Environmental
Unit dimensions (W x D x H)	268 x 272 x 44 mm
Unit weight	1.78 kg
Power	100 to 240V 50 to 60 Hz, internal, universal
Certification	UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Operating temperature	-5° to 50°C
Storage temperature	-25° to 70°C
Operating humidity	10% to 90%, relative, noncondensing
Storage humidity	10% to 90%, relative, noncondensing
Acoustic noise and Mean Time Between Failures (MTBF)
Fan (number)	Fanless
MTBF at 25°C (hours)	2,165,105
