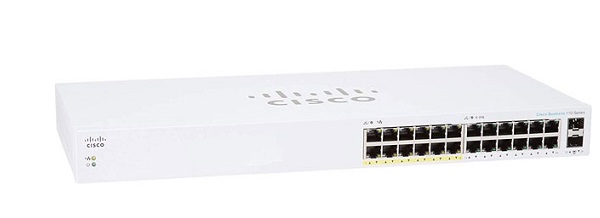

Thiết bị mạng Cisco CBS110-24PP-EU

CBS110-24PP-EU ~~6.790.000₫~~ 6.500.000₫

24-Port Gigabit Ethernet + 2-port SFP PoE Unmanaged Switch CISCO CBS110-24PP-EU - Support 24-port Gigabit Ethernet (12 support PoE with 100W power budget) and 2-port Gigabit SFP (combo with 2 10/100/1000 ports). - Head-of-line (HOL) blocking: HOL blocking prevention. - Jumbo frame: 9216 bytes. - Quality of Service (QoS): 802.1p priority based, 4 hardware...

Số lượng:

- +

24-Port Gigabit Ethernet + 2-port SFP PoE Unmanaged Switch CISCO CBS110-24PP-EU

- Support 24-port Gigabit Ethernet (12 support PoE with 100W power budget) and 2-port Gigabit SFP (combo with 2 10/100/1000 ports).

- Head-of-line (HOL) blocking: HOL blocking prevention.

- Jumbo frame: 9216 bytes.

- Quality of Service (QoS): 802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR).

- Cabling type: Category 5e or better.

- Mounting options: Desktop, wall-mount or rack mount.

- Flash: 8MB.

- CPU: 400MHz ARM.

- CPU memory: 64MB.

- Dimensions (W x D x H): 440 x 203 x 44 mm.

- Weight: 2.98kg.

Đặc tính kỹ thuật

Model	CBS110-24PP-EU
Performance
Capacity in millions of packets per second (64-byte packets)	35.7 mpps
Switching capacity	48 Gbps
General
Head-of-line (HOL) blocking	HOL blocking prevention
MAC table	8K addresses
Jumbo frame	9216 bytes
Quality of Service (QoS)	802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR)
Loop detection	Helps discover loops in the network to avoid broadcast storms
Cable diagnostics	Quickly identify and troubleshoot network cable faults and/or shorts
Media-dependent interface	Automatic Media Dependent Interface (MDI) and MDI crossover (MDI-X)
Standards	IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet
Hardware
Total system ports	24 Gigabit Ethernet
RJ-45 ports	24 Gigabit Ethernet
Combo ports (RJ-45 + Small Form-factor Pluggable [SFP])	2 SFP (combo with 2 Gigabit Ethernet)
Number of ports that support PoE	12
Power dedicated to PoE	100W
LEDs	Power, link/activity (cable diagnostics, loop detection), Gigabit, PoE, Max PoE.
Cabling type	Category 5e or better
Mounting options	Desktop, wall-mount or rack mount
Physical security lock	Kensington lock slot
Flash	8MB
CPU	400MHz ARM
CPU memory	64MB
Packet buffer	2 Mbit
Environmental
Unit dimensions (W x D x H)	440 x 203 x 44 m
Unit weight	2.98 kg
Power	110-240VAC, 50-60 Hz, internal, universal
Green (power efficiency)	Supports IEEE 802.3az on all copper Gigabit Ethernet ports
Compliance/certifications	UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Operating temperature	0° to 40°C
Storage temperature	–20° to 70°C
Operating humidity	10% to 90%, relative, noncondensing
Storage humidity	5% to 90%, relative, noncondensing
Power consumption (worst case)
System power consumption	110V=17.21W 220V=17.29W
Power consumption (with PoE)	110V=135.67W 220V=133.82W
Heat dissipation (BTU/hr)	462.93
Acoustic noise and Mean Time Between Failures (MTBF)
Fan (number)	Fanless
MTBF at 25°C (hours)	340,703
