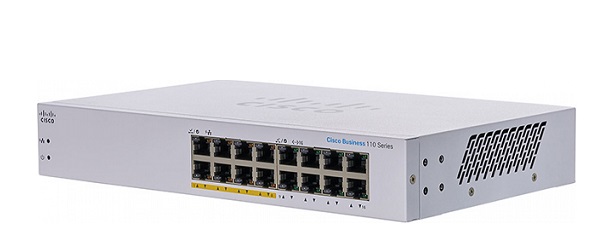

Thiết bị mạng Cisco CBS110-16PP-EU

CBS110-16PP-EU 5.288.000₫ 5.290.000₫
16-Port Gigabit Ethernet PoE Unmanaged Switch CISCO CBS110-16PP-EU - Support 16-port Gigabit Ethernet (8 support PoE with 64W power budget). - Head-of-line (HOL) blocking: HOL blocking prevention. - Jumbo frame: 9216 bytes. - Quality of Service (QoS): 802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR). - Cabling type: Category 5e or...
- +

16-Port Gigabit Ethernet PoE Unmanaged Switch CISCO CBS110-16PP-EU

- Support 16-port Gigabit Ethernet (8 support PoE with 64W power budget).

- Head-of-line (HOL) blocking: HOL blocking prevention.

- Jumbo frame: 9216 bytes.

- Quality of Service (QoS): 802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR).

- Cabling type: Category 5e or better.

- Mounting options: Desktop, wall-mount or rack mount.

- Flash: 16MB.

- CPU: 400MHz ARM.

- CPU memory: 128MB.

- Dimensions (W x D x H): 279 x 170 x 44 mm.

- Weight: 1.30kg.

Đặc tính kỹ thuật

Model  CBS110-16PP-EU
Performance
Capacity in millions of packets per second (64-byte packets) 23.8 mpps
Switching capacity 32 Gbps
General
Head-of-line (HOL) blocking HOL blocking prevention
MAC table 8K addresses
Jumbo frame 9216 bytes
Quality of Service (QoS) 802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR)
Loop detection Helps discover loops in the network to avoid broadcast storms
Cable diagnostics Quickly identify and troubleshoot network cable faults and/or shorts
Media-dependent interface Automatic Media Dependent Interface (MDI) and MDI crossover (MDI-X)
Standards IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet
Hardware
Total system ports 16 Gigabit Ethernet
RJ-45 ports 16 Gigabit Ethernet
Number of ports that support PoE 8
Power dedicated to PoE 64W
LEDs Power, link/activity (cable diagnostics, loop detection), Gigabit, PoE,  Max PoE.
Cabling type Category 5e or better
Mounting options Desktop, wall-mount or rack mount
Physical security lock Kensington lock slot
Flash 16MB
CPU 400MHz ARM
CPU memory 128MB
Packet buffer 2 Mbit
Environmental
Unit dimensions (W x D x H) 279 x 170 x 44 mm
Unit weight 1.30 kg
Power 110-240VAC, 50-60 Hz, internal, universal
Green (power efficiency) Supports IEEE 802.3az on all copper Gigabit Ethernet ports
Compliance/certifications UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Operating temperature 0° to 40°C
Storage temperature –20° to 70°C
Operating humidity 10% to 90%, relative, noncondensing
Storage humidity 5% to 90%, relative, noncondensing
Power consumption (worst case)
System power consumption 110V=11.16W
220V=11.41W
Power consumption (with PoE) 110V=80.28W
220V=80.38W
Heat dissipation (BTU/hr) 274.27
Acoustic noise and Mean Time Between Failures (MTBF)
Fan (number) Fanless
MTBF at 25°C (hours) 1,971,811
