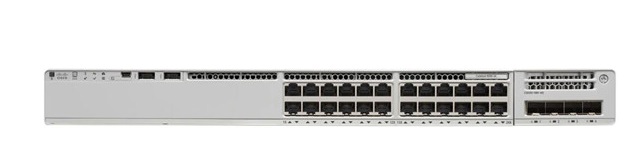

Thiết bị mạng Cisco C9200L-24T-4G-E

C9200L-24T-4G-E ~~33.790.000₫~~ 30.000.000₫

24-port Gigabit Ethernet Data Switch Cisco C9200L-24T-4G-E - C9200L-24T-4G-E is the Catalyst 9200L 24-port Data 4x1G uplink Switch, with Network Essentials software. Cisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst...

Số lượng:

- +

24-port Gigabit Ethernet Data Switch Cisco C9200L-24T-4G-E

- C9200L-24T-4G-E is the Catalyst 9200L 24-port Data 4x1G uplink Switch, with Network Essentials software. Cisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT simplified.

- Catalyst 9200L 24-port data, 4 x 1G, Network Essentials.

- Downlinks total 10/100/1000 or PoE+ copper ports: 24 ports data.

- Uplink configuration: 4x 1G fixed uplinks.

- Default primary AC power supply: PWR-C5-125WAC.

- Fans: Fixed redundant.

- Software: Network Essentials.

- Stacking bandwidth: 80 Gbps.

- DRAM: 2 GB.

- Flash: 4 GB.

- Switching capacity: 56 Gbps.

- Forwarding rate: 83.33 Mpps.

- Chassis Dimensions: 4.4 x 44.5 x 28.8 cm.

- Weight: 4.35 Kg.

Specification

Model	C9200L-24T-4G-E
Downlinks total 10/100/1000 or PoE+ copper ports	24 ports data
Uplink configuration	4x 1G fixed uplinks
Default primary AC power supply	PWR-C5-125WAC
Fans	Fixed redundant
Software	Network Essentials
Chassis Dimensions	4.4 x 44.5 x 28.8 cm
Weight	4.35 kg
Virtual Networks	1
Stacking bandwidth	80 Gbps
Total number of MAC addresses	16,000
Total number of IPv4 routes (ARP plus learned routes)	11,000 (8,000 direct routes and 3,000 indirect routes)
IPv4 routing entries	3,000
IPv6 routing entries	1,500
Multicast routing scale	1,000
QoS scale entries	1,000
ACL scale entries	1,500
Packet buffer per SKU	6 MB buffers for 24- or 48-port Gigabit Ethernet models
Flexible NetFlow (FNF) entries	16,000 flows on 24- and 48-port Gigabit Ethernet models
DRAM	2 GB
Flash	4 GB
VLAN IDs	1024
Total Switched Virtual Interfaces (SVIs)	512
Jumbo frames	9198 bytes
Switching capacity	56 Gbps
Forwarding rate	83.33 Mpps
Mean time between failures (hours)	531,030
Weight	4.35 kg
