Thiết bị mạng Cisco C1000FE-24T-4G-L

C1000FE-24T-4G-L ~~7.680.000₫~~ 7.000.000₫

24-port 10/100Mbps Ethernet Switch Cisco C1000FE-24T-4G-L - 24 x 10/100 Ethernet ports, 2 x 1G SFP and RJ-45 combo uplinks and 2x 1G SFP uplinks. - CLI and/or intuitive web UI manageability options. - Network monitoring through sampled flow (sFlow). - Security with 802.1X support for connected devices, Switched Port Analyzer (SPAN), and Bridge...

Số lượng:

- +

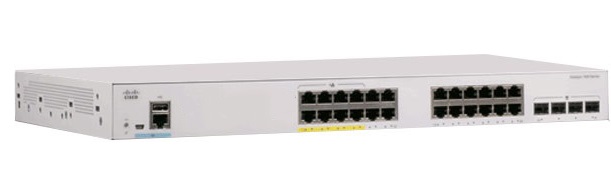

24-port 10/100Mbps Ethernet Switch Cisco C1000FE-24T-4G-L

- 24 x 10/100 Ethernet ports, 2 x 1G SFP and RJ-45 combo uplinks and 2x 1G SFP uplinks.

- CLI and/or intuitive web UI manageability options.

- Network monitoring through sampled flow (sFlow).

- Security with 802.1X support for connected devices, Switched Port Analyzer (SPAN), and Bridge Protocol Data Unit (BPDU) Guard.

- Device management support with over-the-air access via Bluetooth, Simple Network Management Protocol (SNMP), RJ-45, or USB console acces.

- Reliability with a higher Mean Time Between Failures (MTBF) and an Enhanced Limited Lifetime Warranty support (E-LLW).

Specifications

Model	C1000FE-24T-4G-L
General
Gigabit Ethernet / FE ports	24 10/100 RJ45 Data
Uplink interfaces	2 SFP/ RJ-45 combo and 2 SFP
Fanless	Y
Dimensions (WxDxH)	17.32 x 11.34 x 1.73 inch
Weight	3.56kg
RJ-45 Ethernet	1
USB mini-B	1
USB-A port for storage and Bluetooth console	1
Memory and processor
CPU	ARM v7 800 MHz
DRAM	512 MB
Flash memory	256 MB
Performance
Forwarding bandwidth	6.4 Gbps
Switching bandwidth	12.8 Gbps
Forwarding rate (64‑byte L3 packets)	9.52 Mpps
MAC addresses	16000
IPv4 unicast direct routes	542
IPv4 unicast indirect routes	256
IPv6 unicast direct routes	414
IPv6 unicast indirect routes	128
IPv4 multicast routes and IGMP groups	1024
IPv6 multicast groups	1024
IPv4/MAC security ACEs	384
IPv6 security ACEs	256
Maximum active VLANs	256
VLAN IDs available	4094
Maximum STP instances	64
Maximum SPAN sessions	4
MTU-L3 packet	9198 bytes
Jumbo Ethernet frame	10,240 bytes
Environmental
Up to 5,000ft (1500 m)	-5 to 45 deg C
Upto 10,000 (3000 m)	-5 to 40 deg C
Operating altitude	10,000 ft (3,000m)
Operating relative humidity	5% to 90% at 40 deg C (non-condensing)
Storage temperature	-13 to 158F (-25 to 70C)
Storage altitude	15,000 ft (4500m)
Storage relative humidi	5% to 95% at 65 deg C (non-condensing)
Electrical
Voltage (auto ranging)	110 to 220V AC in
Frequency	50 to 60 Hz
Current	0.12A to 0.34A
Power rating (maximum consumption)	0.02 kVA
