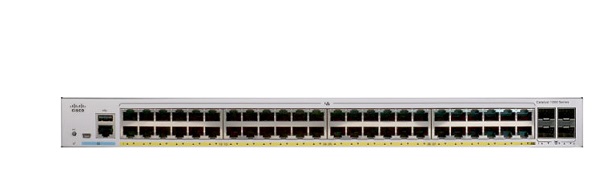

48-port 10/100/1000 Ethernet + 4-port 1G SFP Uplink Switch Cisco C1000-48T-4G-L
- Cisco C1000-48T-4G-L is one of the Cisco Catalyst 1000 Series Switches. Cisco Catalyst 1000 Series Switches are fixed managed Gigabit Ethernet and Fast Ethernet enterprise-class Layer 2 switches designed for small businesses and branch offices.
- Cisco Catalyst 1000 operate on Cisco IOS Software and support simple device management and network management via a Command-Line Interface (CLI) as well as an on-box web UI. These switches deliver enhanced network security, network reliability, and operational efficiency for small organizations.
- Support 48 x 10/100/1000 Ethernet ports, 4 x 1G SFP uplinks.
- CPU: ARM v7 800MHz.
- DRAM: 512 MB.
- Flash memory: 256 MB.
- Dimensions (WxDxH): 17.48 x 10.73 x 1.73 inch.
Đặc tính kỹ thuật
Model | C1000-48T-4G-L |
General | |
Gigabit Ethernet / FE ports | 48 10/100/1000 RJ45 Data |
Uplink interfaces | 4 SFP |
Fanless | Y |
Dimensions (WxDxH) | 17.48 x 10.73 x 1.73 inch |
Weight | 3.95 kg |
Console ports | |
RJ-45 Ethernet | 1 |
USB mini-B | 1 |
USB-A port for storage and Bluetooth console | 1 |
Memory and processor | |
CPU | ARM v7 800 MHz |
DRAM | 512 MB |
Flash memory | 256 MB |
Performance | |
Forwarding bandwidth | 52 Gbps |
Switching bandwidth | 104 Gbps |
Forwarding rate (64‑byte L3 packets) | 77.38 Mpps |
MAC addresses | 16000 |
IPv4 unicast direct routes | 542 |
IPv4 unicast indirect routes | 256 |
IPv6 unicast direct routes | 414 |
IPv6 unicast indirect routes | 128 |
IPv4 multicast routes and IGMP groups | 1024 |
IPv6 multicast groups | 1024 |
IPv4/MAC security ACEs | 600 |
IPv6 security ACEs | 600 |
Maximum active VLANs | 256 |
VLAN IDs available | 4094 |
Maximum STP instances | 64 |
Maximum SPAN sessions | 4 |
MTU-L3 packet | 9198 bytes |
Jumbo Ethernet frame | 10,240 bytes |
Dying Gasp | Yes |
MTBF in hours (data) | 1,452,667 |
MTBF in hours (PoE) | 856,329 |
MTBF in hours (Full PoE) | 856,329 |
