Thiết bị mạng Cisco C1000-24T-4G-L

C1000-24T-4G-L ~~13.900.000₫~~ 12.000.000₫

24-port 10/100/1000 Ethernet + 4-port 1G SFP Uplink Switch Cisco C1000-24T-4G-L - Support 24 x 10/100/1000 Ethernet ports and 4 x 1G SFP uplinks. - CPU: ARM v7 800 MHz. - DRAM: 512 MB. - Flash memory: 256 MB. - Dimensions (WxDxH): 17.48 x 9.45 x 1.73 inch. Đặc tính kỹ thuật Model C1000-24T-4G-L General Gigabit Ethernet ports 24 10/100/1000 RJ45...

Số lượng:

- +

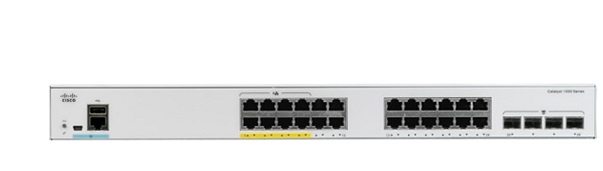

24-port 10/100/1000 Ethernet + 4-port 1G SFP Uplink Switch Cisco C1000-24T-4G-L

- Support 24 x 10/100/1000 Ethernet ports and 4 x 1G SFP uplinks.

- CPU: ARM v7 800 MHz.

- DRAM: 512 MB.

- Flash memory: 256 MB.

- Dimensions (WxDxH): 17.48 x 9.45 x 1.73 inch.

Đặc tính kỹ thuật

Model	C1000-24T-4G-L
General
Gigabit Ethernet ports	24 10/100/1000 RJ45 Data
Uplink interfaces	4 SFP
Fanless	Y
Dimensions (WxDxH)	17.48 x 9.45 x 1.73 inch
Weight	2.63 kg
Console ports
RJ-45 Ethernet	1
USB mini-B	1
USB-A port for storage and Bluetooth console	1
Memory and processor
CPU	ARM v7 800 MHz
DRAM	512 MB
Flash memory	256 MB
Performance
Forwarding bandwidth	28 Gbps
Switching bandwidth	56 Gbps
Forwarding rate (64‑byte L3 packets)	41.67 Mpps
MAC addresses	16000
IPv4 unicast direct routes	542
IPv4 unicast indirect routes	256
IPv6 unicast direct routes	414
IPv6 unicast indirect routes	128
IPv4 multicast routes and IGMP groups	1024
IPv6 multicast groups	1024
IPv4/MAC security ACEs	600
IPv6 security ACEs	600
Maximum active VLANs	256
VLAN IDs available	4094
Maximum STP instances	64
Maximum SPAN sessions	4
MTU-L3 packet	9198 bytes
Jumbo Ethernet frame	10,240 bytes
Dying Gasp	Yes
MTBF in hours (data)	2026793
Safety and compliance
Safety	UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, IEC 62368-1, UL 62368-1 GB 4943.1-2011
EMC: Emissions	47CFR Part 15 Class A, AS/NZS CISPR32 Class A, CISPR32 Class A, EN55032 Class A, ICES-003 Class A, VCCI-CISPR32 Class A, EN61000-3-2, EN61000-3-3, KN32 Class A, CNS13438 Class A
EMC: Immunity	EN55024 (including EN 61000-4-5), EN300386, KN35
Environmental	Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
Telco	Common Language Equipment Identifier (CLEI) code
U.S. government certifications	USGv6 and IPv6 Ready Logo
Connectors and interfaces
Indicator LEDs	Per-port status: link integrity, disabled, activity
Indicator LEDs	System status: System
Console cables	CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45
Console cables	CAB-CONSOLE-USB Console cable 6 ft. with USB Type A and mini-B connectors
Power	Use the supplied AC power cord to connect the AC power connector to an AC power outlet Models have external power supply
