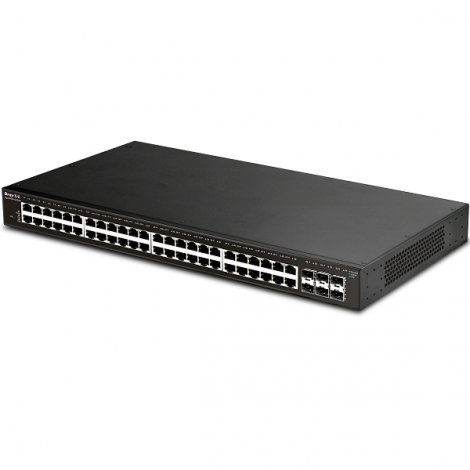

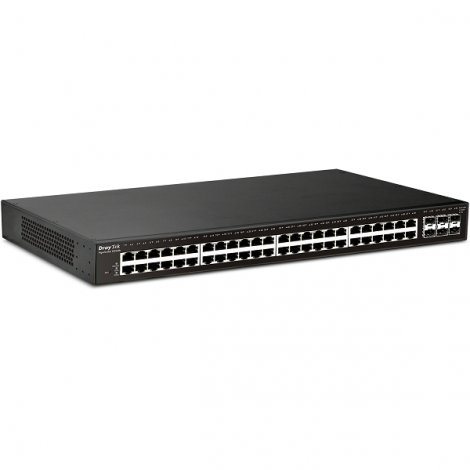

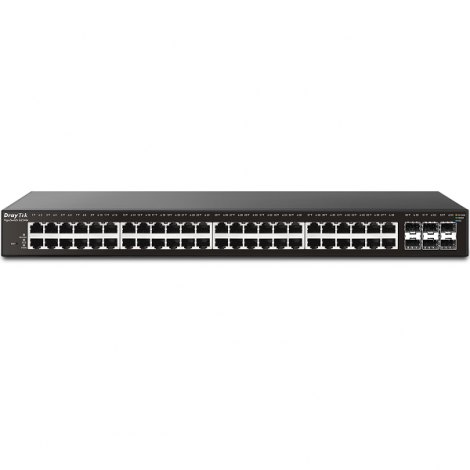

Thiết Bị Mạng Switch DrayTek VigorSwitch G2540xs

OpenVPN Client, User Authentication: Local Database, RADIUS, TACACS+, sFlow, SNMP: v1, v2c, v3, Private MIB, RMON Group: 1, 2, 3, 9. LLDP, SNTP. DHCP server/ Static Route/ VLAN route.

10 Gbps (SFP); 1 Gbps (Ethernet)

Factory reset

802.3 10Base-T, 802.3u 100Base-T, 802.3ab 1000Base-T, IEEE802.3ae 10GBase-X, 802.3x Flow Control, 802.3 Auto-Negotiation, 802.1q Tag-based VLAN, 802.1p Class of Service, 802.1d STP, 802.1w RSTP, 802.1s MSTP, 802.3ad LACP, 802.1ad QinQ, 802.1x Port Access Control, 802.1AB LLDP, 802.3az EEE

48 x 1 Gbps RJ-45, 6 x 1/10 GbE SFP

0 đến 45°C

• Access Control List: MAC, IPv4, IPv6
• Storm Control: Broadcast, Unknown Multicast, Unknown Unicast
• DoS Defense: yes
• 802.1x Port Access Control: yes
• IP Source Guard
• IP Conflict PreventionLoop Protection
• Dynamic ARP Inspection
• DHCP Snooping with Option 82

441 mm x 270 mm x 45 mm

3.97 kg

24 tháng

• - 802.1q Tag-based
• - MAC-based
• - 802.1v Protocol-Based
• - Management VLAN
• - Voice VLAN
• - Surveillance VLAN

-40 đến 70°C

• Multiple User Account
• Two-level Security (Admin/User)
• HTTP(s) Web User Interface
• Simple Network Time Protocol
• Link Layer Discovery Protocol
• LLDP-MED, Media Endpoint Discovery Extension
• Simple Network Management Protocl v1/v2c/v3
• Support Generic Traps
• Command Line Interface (CLI) via Telnet/SSH
• DrayTek Switch Management


• QoS
• Number of QoS Queues: 8
• Queue Scheduling: SPQ, WRR
• QoS (Class of Service): 802.1p CoS, DSCP, CoS-DSCP, IP Precedence
• Rate Limit & Shaping: yes

10 to 90%, không ngưng tụ

5 to 90%, không ngưng tụ
