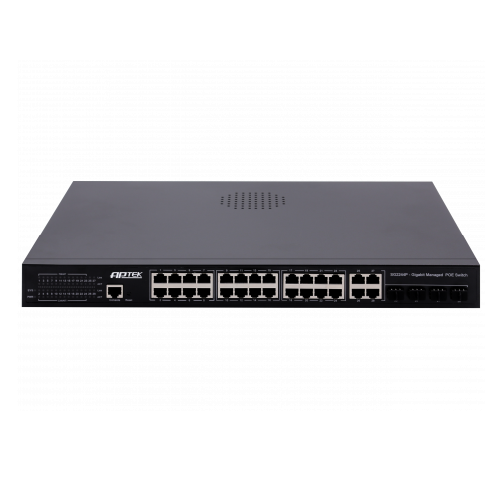

• 24 port x Gigabit Ethernet with PoE+ PSE, RJ-45 (Chuẩn IEEE 802.3af / 802.3at)
• 4 port uplink Gigabit, 2 port gigabit RJ45 và 2 port Gigabit SFP.
• 1 x Console Port, RJ45.

• Nguồn: 100 ~ 240VAC
• Tổng công suất PoE đạt 400 Watt

• Đèn báo nguồn, báo port.

• Nút Reset Factor

• 445mm× 285mm× 45mm

• IEEE 802.3 1 0Base-T
• IEEE 802.3u 1 00Base-T
• IEEE 802.3ab 1 000Base-T
• IEEE 802.3x Flow Control Capability
• ANSI/IEEE 802.3 Auto-negotiation
• IEEE 802. 1p Class of Service
• IEEE 802. 1d Spanning Tree
• IEEE 802. 1w Rapid Spanning Tree
• IEEE 802. 1s Multiple Spanning Tree
• IEEE 802.3ad P ort T runk with LACP
• IEEE 802. 1x Port Based Network Access Control

• Static Manual Aggregation
• LACP Dynamic Aggregation  QoS
• Class of Service  - 802.1p CoS  - DSCP  - Source IP, Destination IP, Port Number
• Queue Setting  - WRR  - Strict Priority
• Rate Limit

Security

• Storm Control

Broadcast, Unknown Multicast, Unknown Unicast

• DoS Defend
• Protected Port
• Access Control List

MAC/IPv4/IPv6

• Port Securit y
• IP Source Guard and ARP Inspection
• DHCP Snooping with Option 82

Multicast

• Up to 256 Multicast Groups

Multicast Group Filtering/Throttling

• IGMP Snooping v2/v3 (BISS)
• MLD Snooping v1/v2(Basic)

IGMP/MLD Querier

Immediate Leave

• Multicast VLAN Registration

Link Aggregation

• Support 8 Link Aggregation Groups with Static & LACP types

Up to 8 Ports for Each Group

• Support Traffic Load Balancing

VLAN

• IEEE 802.3Q VLAN

Tag-based

Port-based

• QinQ (Basic)
• General VLAN Registration Protocol
• Supports Following Types of VLANs

Voice VLAN (OUI Mode)

Surveillance VLAN (OUI Mode)

Protocol VLAN

MAC-based VLAN

Management VLAN

PoE

• PoE Mode: Switch allocates sufficient power the PoE PD asked for, and dynamically distribute power to all devices.
• Status: Status includes class and consumed power by PDs.
• Scheduling: Support scheduling rules, applying multiple ports.
• Power Limit: Supports customizing maximum supplying power per port.

AAA

• 1x – Single/Multiple

Port-based

MAC-Based

• Guest VLAN
• External AAA server using RADIUS

Diagnostics

• CPU/RAM/Port Utilization
• Syslog

Violate/Non-Violate Memory

External Server

• Port Mirroring
• Ping
• Port-based Cable Test

• Operating: 0 ~ 55 °C
• Storage: 0 ~ 70 °C
• Operating Humidity: 10% ~ 90% (Non-condensing)
