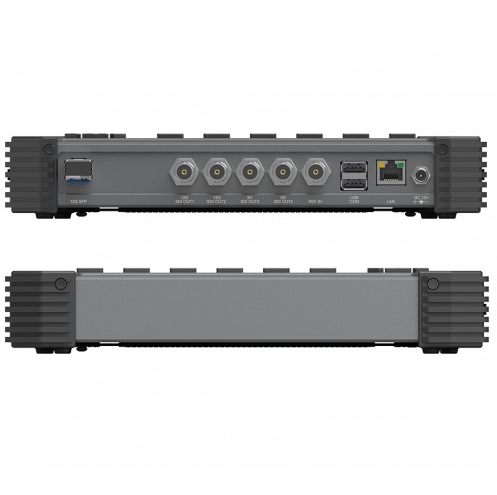

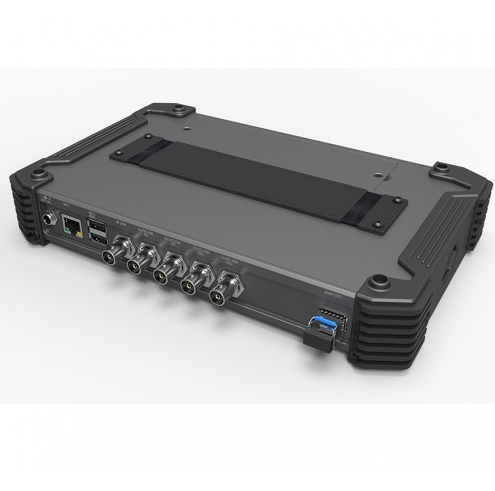

Avmatrix PG4K – 12G-SDI & 4K HDMI2.0 Pattern Generator

Công ty TNHH TMĐT Chu Vũ chuyên cung cấp hàng. Chính hãng giá tốt. Quý khách có nhu cầu vui lòng liên hệ: 0939 24 0939 để được tư vấn sản phẩm và giá tốt nhất tại thời điểm mua hàng.

To test color temperature and gray scale of monitor with various types of patterns, such as color bar, monochrome display and customized pictures.

Preset & importable patterns

Custom : Free to create any color picture, based on two different color space -- RGB or YCbCr.

Picture :  Built-in a plenty of preset patterns, and user-definable pictures imported to the generator to meet various test requirements.

Signal Compatibility

Supports SD, HD, 3G, 6G and 12G-SDI signals; SDI and Fiber signals up to 4K 60Hz. SDI conversion among of different link structures, SQ and 2SI.

Mode Options : Selection among of 12G-SDI/6G-SDI/3G-SDI/HD-SDI/SD-SDI signal formats.

Raster Options : Different resolutions options corresponding to different Modes.

Refresh Options : Different Raster rates corresponding to different Modes & Raster.

Sampling Options : Different GBR & YCbCr sampling rates based on the above options.

Signal Output Types

Selectable from the internal menus and setup system, the SG-12G unit has a full compliment of output signals to test with. The table below details the 12G and 6G signals supported

Audio Monitoring

A comprehensive audio monitoring tool supports up to 16 channels embedded AES/EBU audio, with -60dB to 0dB range. And a 20 to 20000 frequency.

Channel Options : 16-channel SDI audio ranges from CH0 to CH15 for optional.

Switch Options : Off, On, All Off and All On are optional for 16-channel audio switch.

Phase Options : Options among of 0, 90, 180 and 270 for phase.

Frequency Options : Freq options can be customized from 20 to 20000 byusers.

DB(-) Options : Freq options can be customized from -60bB to 0dB by users.
