Mixer Soundcraft NANO-M16

Công ty TNHH TMĐT Chu Vũ chuyên cung cấp Mixers Soundcraft chính hãng giá tốt. Quý khách có nhu cầu vui lòng liên hệ: 0939 24 0939 để được tư vấn sản phẩm và giá tốt nhất tại thời điểm mua hàng.

Mixer Nano M16 có thiết kế nhỏ gọn, mỏng nhẹ là lựa chọn tối ưu cho việc biểu diễn của ban nhạc, ghi âm trong phòng thu hoặc lắp đặt cố định.

NANO Series multi-channel analog mixing console inherits legendary SOUNDCRAFT craftsmanship and is designed to meet various application requirements from live performance, studio recording and fixed installations. NANO Series owns two models in its product portfolio: M16 (16 channels) and M24 (24 channels) and represents a new level of design, quality and performance.

Soundcraft Nano M16 offer all the functionalities required for live mixing and studio recording: 8/16 mono input channels with ultra-low noise discrete MIC preamp and +48V phantom power; 4 stereo input channels; each mono input channel equipped with 3-band EQ and sweepable MID; each stereo input channel equipped with 4-band EQ; 4 auxiliary controls; 12-segment output level meter; 2-track input routable to main mix, control room / headphones.

Mixer Nano M16 có đầy đủ các chức năng cần thiết để hòa trộn trực tiếp và ghi âm trong phòng thu

Nano M16 identify themselves for their cutting-edge and eye-catching appearance. The uniquely-designed Atmos Meter showcases SOUNDCRAFT’s dedication to engineering innovation and adds extra visual effects to live performance. The built-in USB player supports MP3 playback and recording. 24-bit DSP processor provides up to 100 effect presets. Main mix out comes with a 7-band GEQ and an insert point.

Mixer M16 accommodate all the control and connection elements in a robust steel case and install connectors built from metallic materials of highest industrial standards. Compact and ultra-light build, cutting-edge design, and acclaimed SOUNDCRAFT artisanship make NANO an optimal choice for band gigging, studio recording or fixed installation.

SOUNDCRAFT NANO M16 Features

• Ultra-low noise discrete MIC preamp with +48V phantom power.
• 8 / 16 mono input channels and 4 stereo input channels.
• Each input channel accepts balanced XLR MIC input and TRS LINE input.
• Low cut for each MIC input.
• Each mono input channel is equipped with 3-band EQ, sweepable MID and PEAK LED.
• 2 stereo input channels accept mono XLR or TRS input; 2 stereo input channels accepts RCA input.
• Each stereo input channel is equipped with 4-band EQ and PEAK LED.
• 8 compressor controls and 8 channel insert points.
• AUX 1 & AUX 2 send post/pre-fader signal for monitoring or external effects; AUX 3 & FX send post-fader for internal effects or monitoring.
• PFL/MUTE and 60mm fader for each channel.
• GR1/2, GR3/4 and MAIN L-R buss assignment for each channel.
• MAIN MIX installs a pair of balanced XLR and a pair of unbalanced TRS connectors and can be equalized via a 7-band GEQ.
• MAIN MIX supports external effect insert.
• 24-bit DSP processor provides up to 100 effect presets.
• USB player for MP3 playback and recording.
• Switch-mode power supply for 100-240Voltage.
• USB port for MAIN MIX recording or playback through CH 15/16 (M16) or CH 23/24 (M24).
• Cutting-edge and eye-catching design. Uniquely-designed Atmos Meter
  adds extra visual effects to live performance.

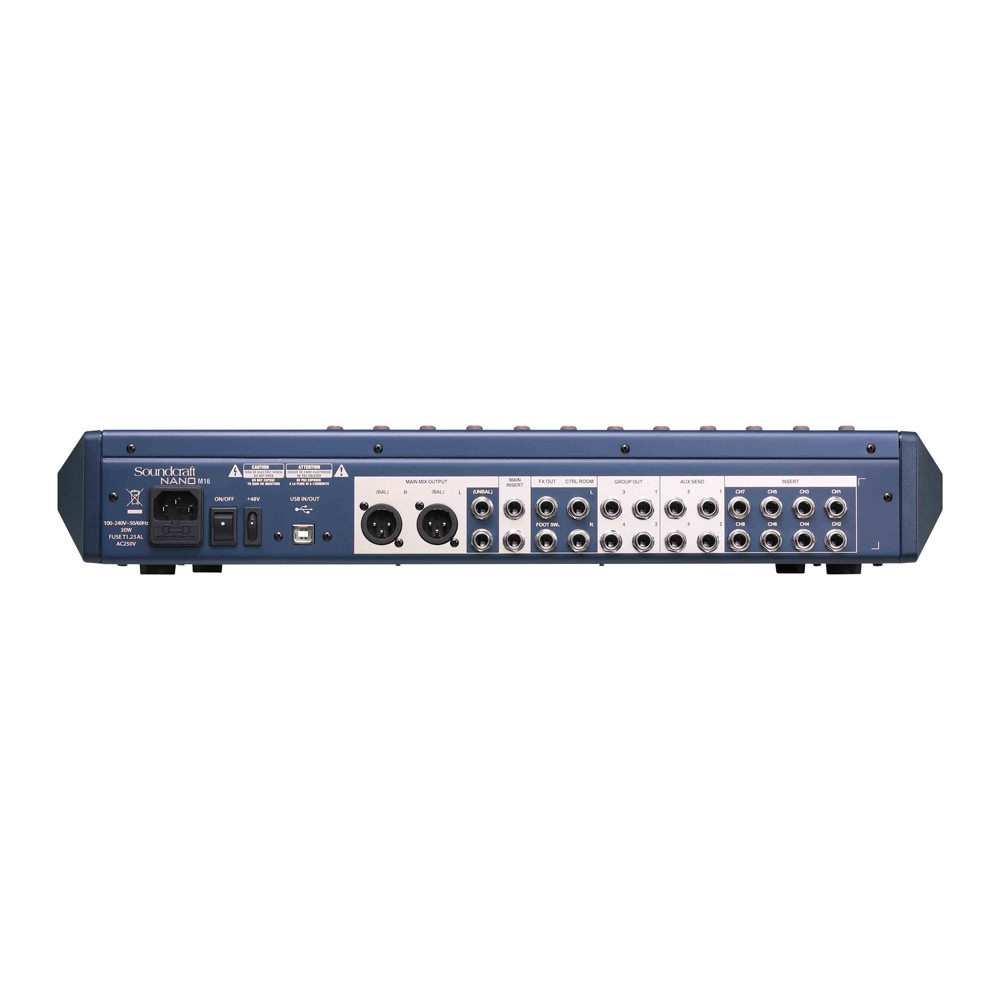

Mặt sau Soundcraft Nano M16 gồm các cổng kết nối âm thanh, cổng nguồn và công tắc nguồn

Specifications of SOUNDCRAFT NANO M16

• Hum & noise:
• Crosstalk:
• Frequency Response (Mic/Line Input to any output, 20 Hz-20 kHz): <1dB
• THD + N (Mic sens. -30 dBu, +20 dBu at all outputs @ 1 kHz): <0,006%
• CMRR
• • Typical @ max gain @ 1 kHz: >80dB
  • Typical @ any gain @ 50 Hz: >60dB
• Input & Output Impedance:
• • Mic Input: 1.8 kΩ
  • Line Input: 23.6 kΩ
  • Stereo Input: 20 kΩ
  • Mix, Aux and Insert Sends: 120Ω
• Input & Output Levels
• • Mic Input max. level: +20 dBu
  • Line Input max. level: +30 dBu
  • Stereo Input max. level: +30 dBu
  • Headphones (@ 200 Ω): 150 mW
• Compressor
• • Gain: 0 - 9 dB
  • Threshold: 20 dB →↓5 dB
• USB 2.0 (Standard B)
• • Inputs / Outputs: 2 in, 2 out
  • Bit Depth: 16 bit
  • Sampling rate: 32 kHz / 44.1 kHz / 48 kHz
• USB Player
• • Inputs / Outputs: 2 in, 2 out
  • Record sampling rate: 44.1 kHz
• Power Consumption
• • Mains voltage: 100 V-240 VAC, 50/60 Hz, universal input
• Physical
• • Net weight: 6.59 kg
  • Gross weight: 8.2 kg
  • Dimensions: 504.62 x 425.00 x 88.34 mm
