Product Highlights

• Premium boutique-class preamps with a high gain, low noise, and mic/line/instrument combo inputs
• Customizable mixer with RGB color coding
• Extensively programmable SMART pads for launching sounds, shows, mixer actions, and more
• Two built-in wireless receivers (one on each mic channel) compatible with the Wireless GO II and Wireless ME transmitters
• iOS-ready dual USB Type-C ports to connect multiple computers or mobile devices
• Advanced high-quality Bluetooth input/output, Wi-Fi, Ethernet, and integrated wireless receivers for Series IV transmitters

2 High-End Preamps

• Built to compete with pricey boutique microphone preamplifiers, the Revolution preamps deliver transparency and detail with ultralow noise (just -131.5 dBV) and incredible gain up to 76 dB, which enables ideal recording levels, even for low-output dynamic mics—no mic boosters, lifters, or normalization needed.

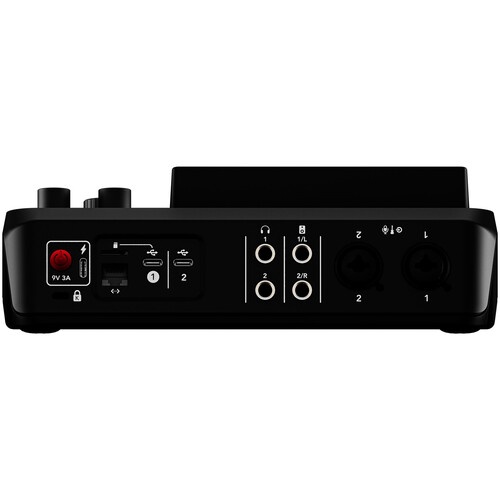

• Pro-grade Neutrik XLR-1/4" combo jacks provide connection points for microphones (+48V phantom power is available for condenser mics), line-level sources, or instruments such as electric guitar and bass. Pairs of the analog input channels can be linked to easily record stereo mic setups, synths, DJ mixers, or outboard gear.

Studio-Quality Processing and Effects

• Authentic emulations of classic APHEX hardware processors are onboard—Aural Exciter elevates clarity and sheen, Big Bottom adds warm and deep low-frequency punch, and Compellor glues it all together with compression/leveling—as well as other widely used processors including a reverb, delay, pitch shifter, equalizer, high-pass filter, noise gate, de-esser, robot effects, and more.
• Use the VoxLab editor to quickly manipulate parameters on several processors via three intuitive controls, or access the advanced editor (onscreen or with a computer) for intricate editing. Use presets, save your own presets, and load them at any time to immediately call up your favorite settings.

6 Programmable SMART Pads

• Each SMART pad can trigger audio files such as music or sound bites, activate special effects, send MIDI commands to software or hardware, or execute mixer functions like fades, music ducking, and bleeping.
• Bank switching buttons beneath the pads for a plethora of unique actions.
• Select the color of your choice for the pad illumination, a convenient way to remember which effect is on which pad.

Customizable Multichannel Mixer

• The 7-channel mixer features 4 channels with full-size broadcast-quality physical faders and three virtual channels, with the option to expand via digital hosting and hardware integrations with future updates.
• Physical faders and virtual channels are freely assignable to the two analog inputs, USB and Bluetooth interfaces, and SMART pads.
• Each channel offers a pan control, mute button, and listen button (pre- or after-fader solo). With channel-specific color coding on the RODECaster Duo, you'll be able to quickly identify your sources.

Stereo or Multitrack Recording

• Record stereo or individual multitrack files to a microSD card or USB storage such as an external drive.
• Choose uncompressed WAV format for maximum audio quality or MP3 format to save storage space and extend recording time.
• Use the RODECaster Duo as a high-quality USB audio interface to stream/record to a computer with ultrafast data transfer.
• RODECaster Duo runs at 24-bit / 48 kHz, the industry standard for video production.
