Mini Converter HDMI to SDI 4K

Công ty TNHH TMĐT Chu Vũ chuyên cung cấp Blackmagic Design Chính hãng giá tốt. Quý khách có nhu cầu vui lòng liên hệ: 0939 24 0939 để được tư vấn sản phẩm và giá tốt nhất tại thời điểm mua hàng.

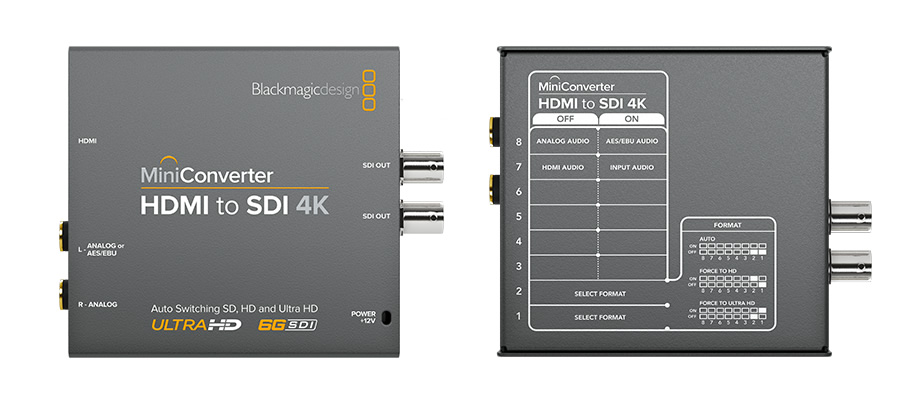

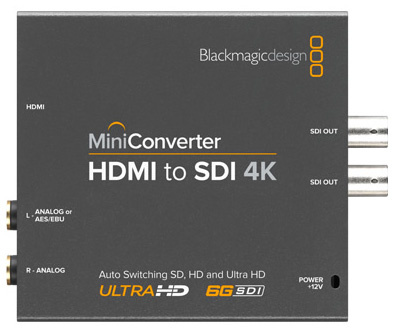

Blackmagic Design Mini Converter HDMI to SDI 4K

Description

Convert from HDMI devices to SD, HD, 3G and 6G-SDI video in SD, HD and Ultra HD video formats. Easily embed SDI audio from HDMI, AES/EBU or balanced analog audio inputs. Get the perfect solution to convert HDMI consumer cameras to SDI, or add SDI outputs to computers with HDMI connections!

Connections

• SDI Video Output: Automatically matches the SD, HD and 6G-SDI HDMI video input.
• Analog Audio: 2 channels of professional balanced analog audio with standard 1/4 inch jack connections.
• AES/EBU Digital Audio: 2 channels of professional balanced digital with standard 1/4 inch jack connections.
• HDMI: HDMI type A in
• Multi Rate Support: Auto detection of 6G-SDI, HD or standard definition SDI inputs.
• Updates and Configuration: Via USB 2.0 high speed. (480 Mb/s)
• Reclocking: Yes

Standards

• SD Format Support: 525/29.97 NTSC, 525/23.98 NTSC, 625/25 PAL
• HD Format Support: 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60,1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
• 2K Format Support: 2048x1080PsF23.98, 2048x1080p23.98, 2048x1080PsF24, 2048x1080p24, 2048x1080PsF25, 2048x1080p25
• 4K Format Support: 3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30, 4096x2160p24
• SDI Compliance: SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656 and ITU-R BT.601.
• SDI Video Rates: SDI video connections are switchable between standard definition and high definition.
• SDI Video Sampling: 4:2:2
• SDI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
• SDI Color Precision: 4:2:2
• SDI Color Space: YUV
• SDI Auto Switching: Automatically selects between SD SDI, HD-SDI and 6G-SDI.
• HDMI Format Support: 625/25 PAL, 525/29.97 NTSC, 525/23.98 NTSC, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2048x1080p23.98, 2048x1080p24, 2048x1080p25, 3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30, 4096x2160p24
• HDMI Color Space: YUV and RGB
• HDMI Color Precision: 4:2:2 and 4:2:2
• Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
• Format Conversion: HD scaler and SD down conversion

Software

• Software Control: Mac OS X™ and Windows™ software upgrade via USB.
• Internal Software Upgrade: Via included updater application.
• Settings Control: Mini Switches or USB software.

Power Requirements

• Power Supply: +12V universal power supply included with international socket adapters for all countries. Cable tie point.
• Power Consumption: 4.44 Watts
• Operational Voltage Range: 12 - 31 Vdc

Environmental Specifications

• Operating temperature: 0° to 40° C (32° to 104° F)
• Storage temperature: -20° to 45° C (-4° to 113° F)
• Relative Humidity: 0% to 90% non-condensing

What's Included:

• Mini Converter HDMI to SDI
• Software CD
• 12V universal power supply with international socket adapters

Warranty

• 1 Year Limited Manufacturer's Warranty.
