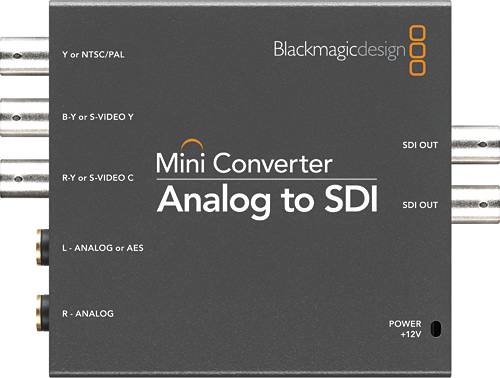

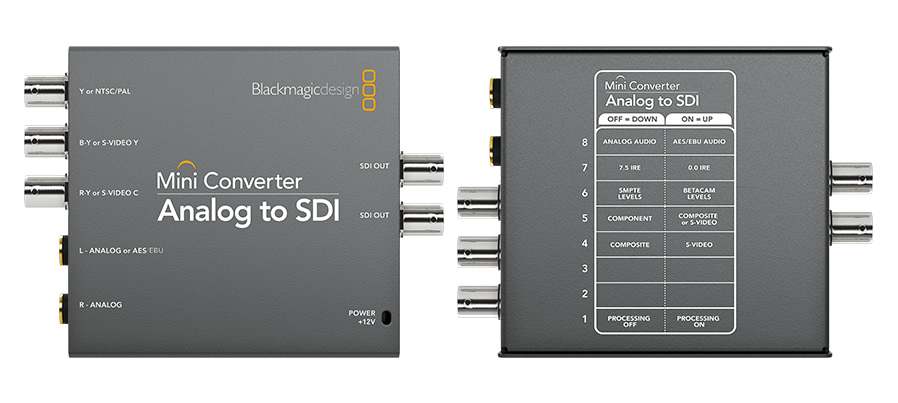

Mini Converter Analog to SDI

Technical Specifications

Description

The ideal solution for converting analog component, s-video, NTSC/PAL composite to SDI video. Audio can be embedded from balanced analog or AES/EBU inputs. Now you can convert analog devices such as Betacam SP, VHS, set top boxes, gaming consoles and HDV cameras to incredible quality SD/HD-SDI video.

Connections

SDI Video Output

Automatically matches the SD and HD video input.

Analog Audio

2 channels of professional balanced analog audio with standard 1/4 inchjack connections.

Analog Video

Component SD/HD, NTSC, PAL and
S-Video.

AES/EBU Digital Audio

2 channels of professional balanced digital with standard 1/4 inch jack connections.

Multi Rate Support

Auto detection of HD or standard definition inputs.

Updates and Configuration

USB

Reclocking

Yes

Standards

SDI Compliance

SMPTE 292M, SMPTE 259M,SMPTE 296M, SMPTE 424M-­‐B,ITU-R BT.656 and ITU-R BT.601.

SDI Video Rates

SDI video connections are switchable between standard definition and high definition.

SDI Video Sampling

4:2:2

SDI Audio Sampling

Television standard sample rate of48 kHz and 24 bit.

SDI Color Precision

4:2:2

SDI Color Space

YUV

SDI Auto Switching

Automatically follows format of analog input.

SDI Format Support

625/25 PAL, 525/23.98 NTSC, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94, 720p60.

Analog Format Support

625/25 PAL, 525/23.98 NTSC,525/29.97 NTSC, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60.

Analog Color Space

YUV

Analog Color Precision

4:2:2

Software

Software Control

Mac OS X™ and Windows™ software upgrade via USB.

Internal Software Upgrade

Via included updater application.

Operating Systems

Mac OS X 10.10 Yosemite,
Mac OS X 10.11 El Capitan or later.

Windows 8.1 or Windows 10.


Settings Control

Mini Switches or USB software.

Power Requirements

Power Supply

+12V universal power supply included with international socket adapters for all countries. Cable tie point.

Power Consumption

6.50 Watts

Operational Voltage Range

12 - 31 V DC

Physical Specifications

Environmental Specifications

Operating temperature

0° to 40° C (32° to 104° F)

Storage temperature

-20° to 45° C (-4° to 113° F)

Relative Humidity

0% to 90% non-condensing

What's Included

Mini Converter Analog to SDI

Software CD

12V universal power supply with international socket adapters

.
