Màn hình Lilliput TM1018/S 10.1 inch Camera top monitor

TM1018/S 12.000.000₫ 10.700.000₫
Công ty TNHH TMĐT Chu Vũ chuyên cung cấp Màn hình Lilliput chính hãng giá tốt. Quý khách có nhu cầu vui lòng liên hệ : 0939 24 0939 để được tư vấn sản phẩm và giá tốt nhất tại...
- +

Công ty TNHH TMĐT Chu Vũ chuyên cung cấp Màn hình Lilliput chính hãng giá tốt. Quý khách có nhu cầu vui lòng liên hệ: 0939 24 0939 để được tư vấn sản phẩm và giá tốt nhất tại thời điểm mua hàng.

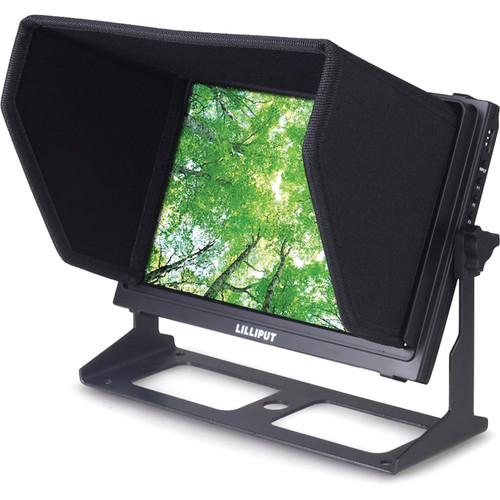

TM-1018S is a professional camera-top monitor specifically for photography, which features 10.1″ 1920× 800 resolution screen with fine picture quality and good color reduction. It’s interfaces support SDI and HDMI signals inputs and loop outputs; And also supports SDI/HDMI signal cross conversion.For the advanced camera auxiliary functions, such like waveform, vector scope and others, all are under professional equipment testing and correction, parameters accurate, and comply with industry standards.Aluminum main body with silicon rubber case, which effectively improves monitor durability.









Lilliput creatively integrated waveform, vector scope, video analyser & touch control into on-camera monitor, which provides Luminance/Color/RGB histograms, Luminance/RGB parade/YCbCr parade Waveforms, Vector scope and other waveform modes; And measurement modes such as Peaking, Exposure & Audio level meter. These assist users to accurately monitor when shooting, making and playing movies/videos.
Level meter, Histogram, Waveform & Vector scope can be displayed horizontally at the same time; Professional waveform measurement & color control to realise and record Natural color.

Advanced Functions:


Histogram consist of RGB, Color & Luminance histograms.

l  RGB histogram: shows the red, green, and blue channels in overlay histogram.

l  Color histogram: shows histograms for each of the red, green, and blue channels.

l  Luminance histogram: shows the distribution of brightness in an image as a graph of luminance.

camera monitors

The 3 modes can be selected to meet users’ best needs and view visually the exposure of whole and each RGB channels. Users have the full contrast range of video for easy color correction during post production.


Waveform monitoring consist of Luminance, YCbCr parade & RGB parade Waveforms, which used for measuring the brightness, luminance or chroma values from a video input signal. It not only can warn the user for out-of-range conditions such as overexposure errors, but also assist with colour correction & camera white and black balance.

on camera

Note: Luminance waveform can be enlarged horizontally on the bottom of display.

Vector scope

Vector scope shows how saturated the image is and where the pixels in the image land on the color spectrum. It can also be displayed in various sizes & positions, that allows users to monitor color gamut range in real time.


Audio Level Meter

The Audio Level Meters provide numerical indicators and headroom levels. It can generate accurate audio level displays to prevent errors during monitoring.


> Camera Mode > Center Marker > Screen Marker  > Aspect Marker > Aspect Ratio> Check Field >  Underscan > H/V Delay > 8×Zoom > PIP > Pixel-to-Pixel > Freeze Input > Flip H / V> Color Bar


Touch Control Gestures

1. Slide up to active the shortcut menu.

2. Slide down to hide the shortcut menu.
