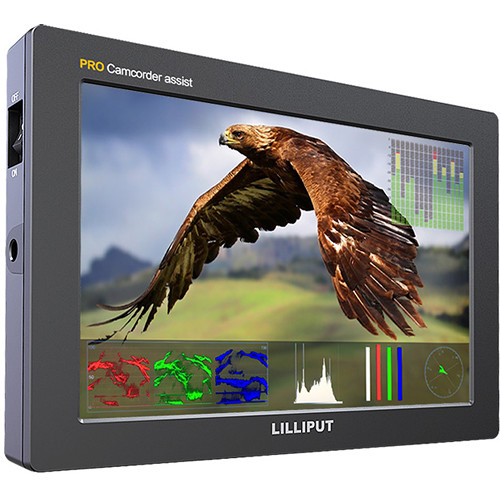

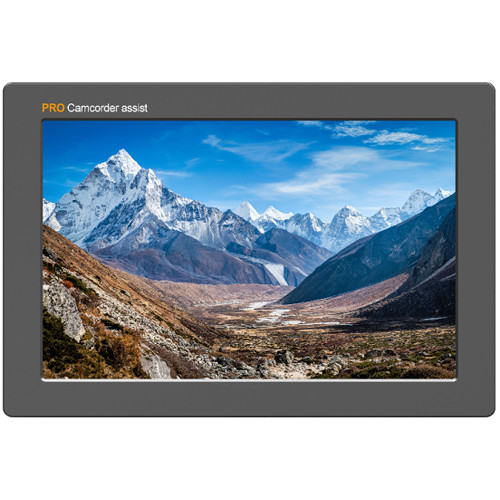

Màn hình Lilliput Q7 PRO _ 7 inch Camera-top full hd SDI monitor

Q7 PRO is a professional on camera monitor specifically for photography and film maker. The 7 inch SDI dslr camera monitor with 1920×1200 FullHD native resolution screen with fine picture quality and good color reduction, and the interface support HDMI and SDI signals inputs and loop outputs ,also support SDI/HDMI signal cross conversion.The top camera montor come with camera auxiliary functions, such like waveform, vector scope and others, all are under professional equipment testing and correction, parameters accurate, and comply with industry standards.Aluminum housing design, which effectively improves monitor durability.

A Better Camera & camcorder Assist

Q7 PRO matches with world-famous 4K / FHD camera & camcorder brands, to assist cameraman in better photography

experience for variety of applications, i.e. filming on site, broadcast live action, making movies and post-production, etc.

Metal Housing Design

Compact and firm metal body, which make great convenient for cameraman in outdoor environment.

Adjustable color space & Accurate color calibration

Native, SMPTE-C, Rec. 709 and EBU are optional for color space.A specific calibration to reproduce the colors

of the image color space.Color calibration supports the PRO/LTE version of LightSpace CMS by Light Illusion.

HDR and Gamma

When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearly.

Effectively enhancing the overall picture quality. Select the appropriate gamma mode among of 1.8, 2.0, 2.2, 2.35, 2.4, 2.6 and 2.8.

Note: The Gamma menu becomes activated when the HDR is set to Off. The Gamma menu becomes deactivated when the color space is set to Native.

3D-LUT

Wider color gamut range to make precise color reproduction of Rec.  709 color space with built-in 3D LUT,

featuring 8 default logs and 6 user logs.Supports loading the .cube file via USB flash disk.

SDI and HDMI cross conversion

The HDMI output connector can actively transmit an HDMI input signal or output an HDMI signal that has been converted

from an SDI signal. In short, signal transmits from SDI input to HDMI output and from HDMI input to SDI output.

Camera Auxiliary Functions & Easy-to-use

Q7 pro provides plenty of auxiliary functions for taking photos and making movies, such as peaking, false color and audio level meter.

F1 and F2user-definable buttons to custom auxiliary functions as shortcut, such as peaking, underscan and checkfield. Use the Dial

to select and adjust the value among of sharpness, saturation, tint and volume, etc. EXIT Single press to activate mute function under

non menu mode; Single press to exit under menu mode.
