Màn hình Lilliput FS7 _ 7 inch 4K Camera-top monitor

Compact, nice and professional on-camera monitor matches with FHD/4K camcorder and DSLR camera.  The 7 inch 1920×1200 Full HD native resolution screen features with fine picture quality and good color reproduction. The SDI ports support 3G-SDI signal input and loop output, HDMI ports support up to 4094×2160 4K signal input and loop output. For the advanced camera auxiliary functions, such like peaking filter, audio lever meter and others, all are under professional equipment or software testing and calibration, parameters accurate, and comply with industrial standards. Aluminum housing design, which effectively improves monitor durability. This is so-called a better camera assist.

A Better Camera Assist

FS7 matches with world-famous 4K / FHD camera brands, to assist cameraman in better photography experience

for variety of applications, i.e. filming on site, broadcast live action, making movies and post-production, etc.

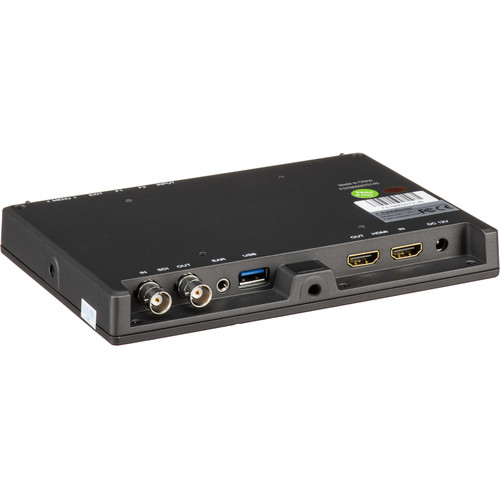

4K HDMI / 3G-SDI Input & Loop Output

SDI format supports 3G-SDI signal, 4K HDMI format supports 4096×2160 24p / 3840×2160 (23/24/25/29/30p).

HDMI / SDI signal can loop output to the other monitor or device when HDMI / SDI signal input to FS7.

Excellent Display

Creatively integrated the 1920×1200 native resolution into a 7 inch 8 bit LCD panel, which is far beyond from retina identification.

Features with 1000:1, 500 cd/m2 brightness & 170° WVA; With full lamination technology, see every detail in massive FHD visual quality.

Camera Auxiliary Functions & Easy-to-use

FS7 provides plenty of auxiliary functions for taking photos and making movies, such as peaking, false color and audio level meter.

F1 & F2 user-definable buttons to custom auxiliary functions as shortcut, such as peaking, underscan and checkfield. Use the Dial

to select and adjust the value among of sharpness, saturation, tint and volume, etc.

Metal Housing Design

Compact and firm metal body, which make great convenient for cameraman in outdoor environment.

Battery F-series Plate Bracket

VESA 75mm mount design allows A11 to power up with a external SONY F-series battery on its back.F970 can

work continuously for more than 4 hours. Optional V-lock mount and Anton Bauer mount are also compatible with.
