Focusrite Pro RedNet A16R

Công ty TNHH TMĐT Chu Vũ chuyên cung cấp Sound card thu âm Focusrite Scarlett Chính hãng giá tốt. Quý khách có nhu cầu vui lòng liên hệ: 0939 24 0939 để được tư vấn sản phẩm và giá tốt nhất tại thời điểm mua hàng.

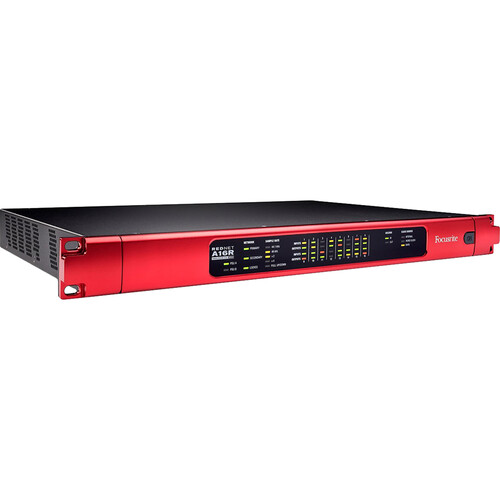

Equip your Dante audio network with 16 channels of premium analog line-level I/O with the Focusrite RedNet A16R MkII, a rackmount 16x16 Dante analog audio interface offering adjustable levels, high-performance 24-bit / 192 kHz converters, and comprehensive remote control options for professional engineers in every environment from broadcast and touring applications, to the studio, to the dub stage.

With DB25 connectors providing 16 channels of balanced analog line-level audio to and from the Dante audio network, the A16R MkII is ideal for merging external mic preamps, mixer channels, and cue systems with a Dante network. Primary and secondary Dante connectivity is available on dual locking etherCON ports.

In addition to the main analog inputs and outputs, the RedNet A16R MkII features stereo AES3 I/O on XLR jacks and dual sample rate converters for the AES3 inputs. To allow synchronization with a wide range of external sources and hardware, the interface includes BNC wordclock input and output ports and support for DARS (Digital Audio Reference Signal) through the XLR input.

The RedNet A16R MkII is fitted with two separate power supplies with auto-switchover capability to maintain reliable operation in the event of a failure. Plus, locking IEC inlets on the rear of the unit prevent unintended power cable disconnection at the interface. Power-supply status is indicated both remotely and on the front panel. Additionally, the interface features a rugged, roadworthy exterior that occupies just 1 RU of rack space.

A premium bonus is the Brainworx bx_console Focusrite SC channel-strip plug-in, a stellar digital emulation of the legendary and rare Focusrite Studio Console. Only 10 of the consoles were ever produced, but you can access its famed sound directly in your DAW.

16x16 Analog I/O with Independent Level Control

The RedNet A16R MkII is a 16-channel analog line-level interface for Dante audio-over-IP networks (AES67, AES70 and SMPTE 2110 compliant). The 1 RU rackmount device features individual input/output channel level control and calibration available in ±1 dB increments via digital trim faders with mute and dim functions, allowing for precise calibration and control of all input and output levels using RedNet Control software.

Top-of-the-Line Converters

The RedNet A16R MkII is outfitted with high-performance AD/DA converters that support up to 24-bit / 192 kHz resolution. With 119 dB dynamic range and a flat frequency response (±0.15 dB from 20 Hz to 20 kHz), the interface ensures no-compromise recording and audio playback. Level alignment can be set to +18 or +24 dBu via the software.

Redundant Dante and Power

Featuring power-supply and Ethernet redundancy with auto switchover, the RedNet A16R MkII can provide continued operation in the event of a failure at the main power and audio lines, ensuring silent fail-over during power or network outages.

Flexible I/O

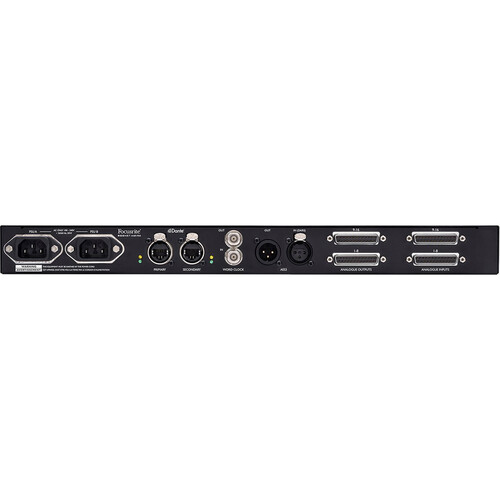

Various connection options make RedNet A16R MkII a flexible addition to any audio-over-IP system. Four DB25 multipin connectors (AES59 standard configuration) are provided to bring balanced analog line-level signals into and out of the interface, while XLR ports enable two-channel digital AES3 connections to be made. All connectors lock and remain terminated even under stress, providing worry-free installation and peace of mind once situated in a rack.

Tight Synchronization

Sample rate conversion on both AES3 inputs enables external equipment to operate at different sample rates, and DARS signals are accepted on the XLR connector. Wordclock I/O on BNC connectors allow synchronization to a house clock or from external equipment to the Dante network.

Powerful Remote Control

The interface boasts full operability with Focusrite RedNet and Red interfaces, plus all Dante devices from hundreds of manufacturers. Take advantage of remote routing and control using RedNet Control and Dante Controller software on a Mac or Windows computer.

Informative Indicators

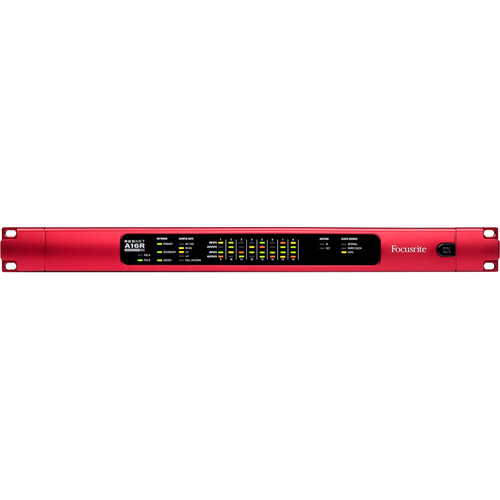

LED indicators are presented on the front panel for PSU, network, sample-rate, signal-presence, and clock-source status, keeping you informed of the interface's critical functions at a glance. Metering for all inputs and outputs can also be found on the front panel of the RedNet A16R MkII.
