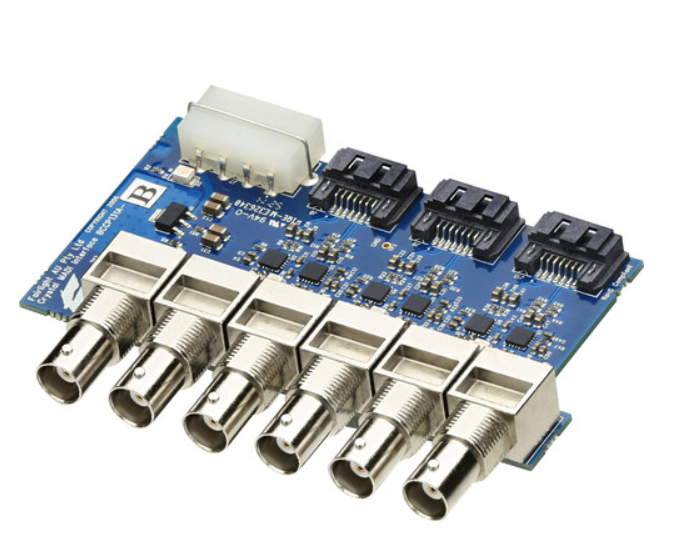

Connected to your Fairlight Audio Accelerator, the Blackmagic Design Fairlight PCIe Audio MADI Upgrade adds 192 channels of MADI I/O to your DaVinci Resolve 17 system, raising the total MADI channel count to 256 inputs and outputs. This half-length card uses no additional PCIe bandwidth and hooks up to the Fairlight Audio Accelerator (required and available separately) through the supplied SATA cables.
The Fairlight Audio MADI Upgrade operates at 24-bit / 48 kHz resolution. It features three 75-ohm BNC MADI inputs and three 75-ohm BNC MADI outputs to provide extreme channel counts while using minimal physical space.
MADI Inputs
Three MADI inputs via 75-ohm BNC jacks
MADI Outputs
Three MADI outputs via 75-ohm BNC jacks
Audio Channels
Total of 192 inputs and outputs
Bit Depth and Sample Rate
24 bit / 48 kHz
PCI Form Factor
Single half-length PCIe x4 board
Power
4-pin computer power cable connector
Hardware Requirements
Requires Fairlight Audio Accelerator (available separately)
PCIe Requirements
Requires connection to Fairlight Audio Accelerator using three supplied SATA cables; uses no additional PCIe bandwidth
