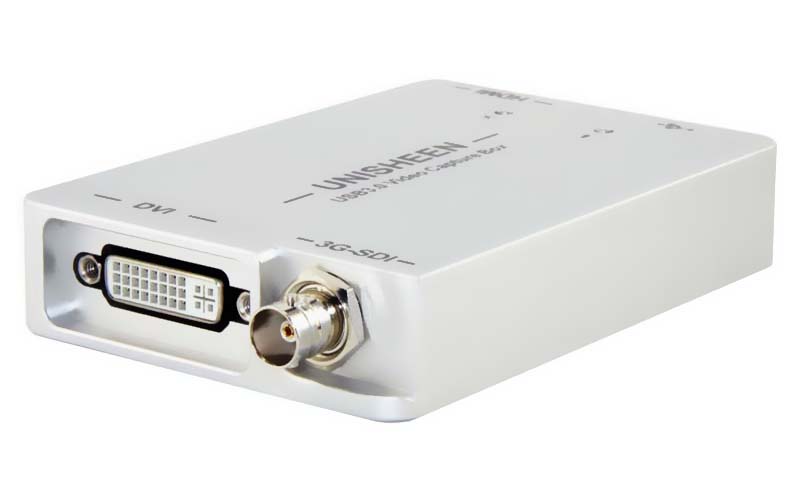

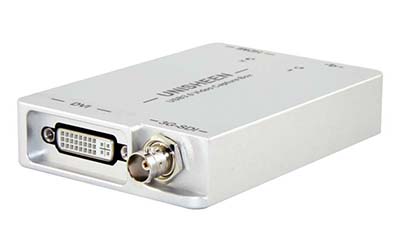

Card Capture Unisheen UC3500B hổ trợ input cổng HDMI và SDI và DVI. Kết nối với máy tính qua cổng USB 3.0.
| Interface | |
| USB interface | USB3.0，360MB/s Bandwidth(Compatiable USB2.0) |
| Input interface | 1xSDI,1xHDMI,1xDVI-I, |
| Output interface | N/A |
| Video input | 1080P50/60,1080I50/60,720P50/60,576P,576I,480P,480I |
| Audio input | HDMI/SDI embedded |
| System | Windows (7, 8, 8.1,10), Linux (kernel version 2.6.38 and above), OS X (10.8 and above) |
| Standard | |
| HDMI input format | HDMI 1.4a compliance，Support 1080P/60HZ 8-bit,(RGB,YUV) SD/HD/3G-SDI，SMPTE-259/274/296/372/424/425/292 compliance |
| Transmission speed | HDMI:165MHZ,SDI:1.485Gb/s，2.97Gb/ |
| Video capture | UVC |
| Audio capture | UAC |
| Output color space | YUY2 |
| General | |
| Operation system | Support version x86 & x64 from Windows 7、8.1、10，Windows Server 2008 R2 |
| Compatible software | vMix,wirecast,OBS,Xsplit,Windows Media Encoder, ,Adobe Flash Media Live Encoder, Real Producer Plus, VLC, Wire cast, AMCAP etc.… |
| Compatible development interface | DirectShow (Windows), DirectSound (Windows) |
| Update | Firmware can be updated by USB port |
| Dimension | 110x78x22mm |
| Consumption | <= 3.5 W |
| Working Temperature | 0-50 degree |
| Storage temperature | -20-70 degree |
| Storage humidity | 5%-90% |
