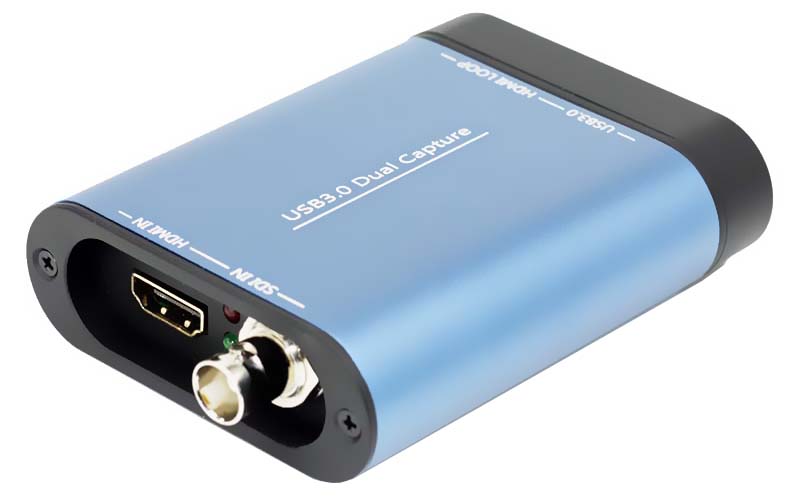

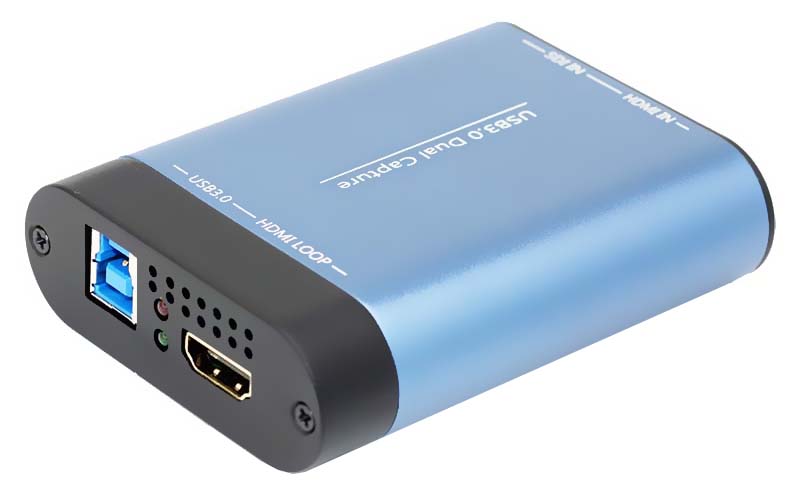

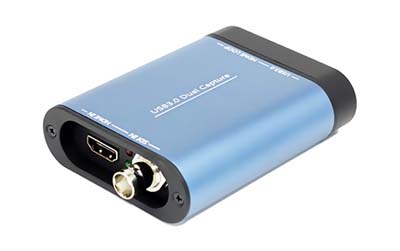

Card Capture Unisheen UC3300hs hổ trợ input 2 cồng HDMI và SDI cùng một lúc phù hợp cho việc livetreme hay dành cho 2 camare. Kết nối với máy tính qua cổng USB 3.0.
| Interface | |
| USB interface | USB3.0，360MB/s Bandwidth(Compatiable USB2.0) |
| Input interface | 1xSDI,1xHDMI(Dual Channel Input) |
| Output interface | Only 1xHDMI Loop（this loop output don't support SDI in) |
| Video input | 1080P50/60,1080I50/60,720P50/60,576P,576I,480P,480I |
| Audio input | HDMI/SDI embedded |
| Standard | |
| HDMI input format | HDMI 1.4a compliance，Support 1080P/60HZ 8-bit,(YUV) SD/HD/3G-SDI，SMPTE-259/274/296/372/424/425/292 compliance |
| Transmission speed | HDMI:165MHZ,SDI:1.485Gb/s，2.97Gb/ |
| Video capture | UVC (USB video class) compliance |
| Audio capture | UAC (USB audio class) compliance |
| Output color space | YUV2 NV12 |
| Recording Mode | Software Compression, Real-Time Mode |
| General | |
| Operation system | Support version x86 & x64 from Windows 7、8.1、10，Windows Server 2008 R2 Linux |
| Compatible software | Windows Media Encoder, ,Adobe Flash Media Live Encoder, Real Producer Plus, VLC, Wire cast, AMCAP etc.… |
| Compatible development interface | DirectShow (Windows), DirectSound (Windows) |
| Update | Firmware can be updated by USB port |
| Dimension | 69x90x24mm |
| Box Dimension | 100x146x53mm |
| Net/Gross Weight | 0.2/0.3kg |
| Consumption | <= 3.5 W |
| Working Temperature | 0-50 degree |
| Storage temperature | -20-70 degree |
| Storage humidity | 5%-90% |
| Included in package | *USB Grabber 1pcs *USB3.0 Cable 1pcs *User Manual 1pcs |
| Note: Due to the limit of the USB3.0 Bus speed in chipset ,when you take HDMI and SDI input at the same time,it can only run 1080p30. | |
