Uncompressed 1080p60 for the pros.

ExtremeCap UVC is created for DSLR or prosumer-grade video camcorder to improve your streaming. If you are looking for premium-quality images with maximum clarity, ExtremeCap UVC lets you capture any HDMI video source in purely unaltered 1080p60 without any lossy compression.

Superb third-party software support.

One other benefit of ExtremeCap UVC is its high compatibility with existing third-party streaming software like OBS, Wirecast, XSplit, Adobe Flash Media Live Encoder, and many more.

Pro streaming on the go.

Simply connect a DSLR to your cell phone* through ExtremeCap UVC, open a streaming app** that supports USB camera, and you’re ready to stream high quality videos up to 1080p60 at live conferences and events.。

*Android only ** CameraFi Live (Supported devices)

Checking camera compatibility

1. Find your Camera’s HDMI OUT port

Step 1

Step 2

Step 3

CONNECTIONS

SPECIFICATIONS

• Specifications

  Interface: USB 3.0 (plug and play, UVC)

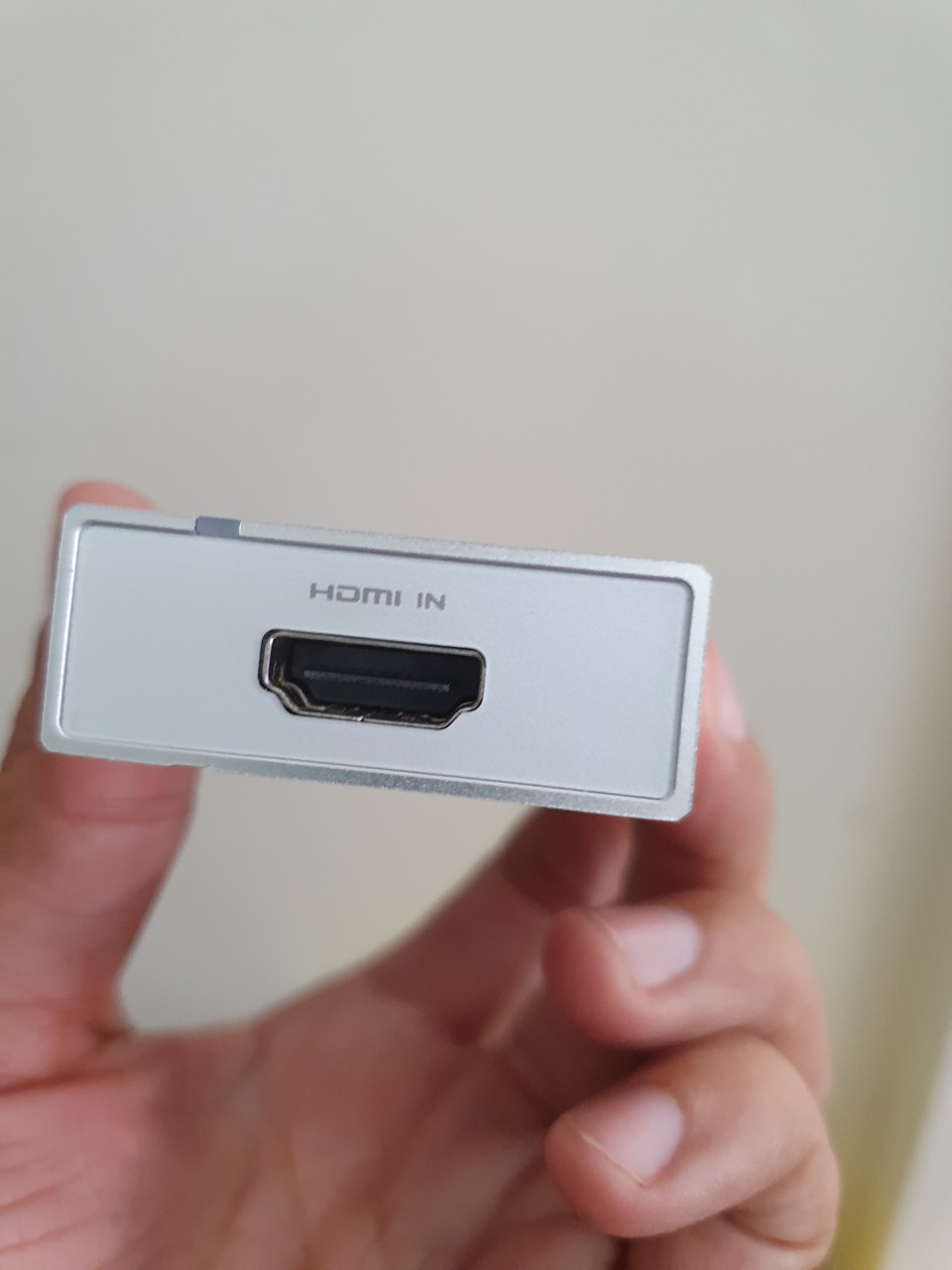

  Input: HDMI
  Output: USB 3.0 Type-C (USB 2.0 compatible)
  Output format : MJPEG, YUY2
  Audio sampling rate: 48 KHz PCM over HDMI
  Resolutions: 640x480, 720x480, 720x576, 800x600, 1024x768,
  1280x720, 1280x1024, 1600x1200, 1920x1080
  Dimensions (W x D x H): 85 x 43 x 17 mm
  Weight: 82 g



  System Requirements

  Windows® 10 / Windows 8.1 / Windows 7 (SP1)
  Desktop: Intel® Core™ i5-4440 3.10 GHz + NVIDIA® GeForce® GTX 660 or above
  Laptop: Intel Core i7-4810MQ + NVIDIA GeForce GTX 870M or above
  4 GB RAM (8 GB recommended)

  Compatibility

  Operating system:

  1. Windows 10 / Windows 8.1 / Windows 7 (x86, x64)
  2. OS X (10.10 or above)
  3. Linux Ubuntu 14.04

  Software (including but not limited to):

  1. OBS (Windows, Mac)
  2. XSplit (Windows)
  3. Wirecast (Windows, Mac)
  4. Adobe Flash Media Live Encoder (Windows)
  5. Edius Pro 8 (Windows)
  6. vMix (Windows)
  7. QuickTime Player (Mac)
  8. VLC (Mac)
  9. Skype (Mac)

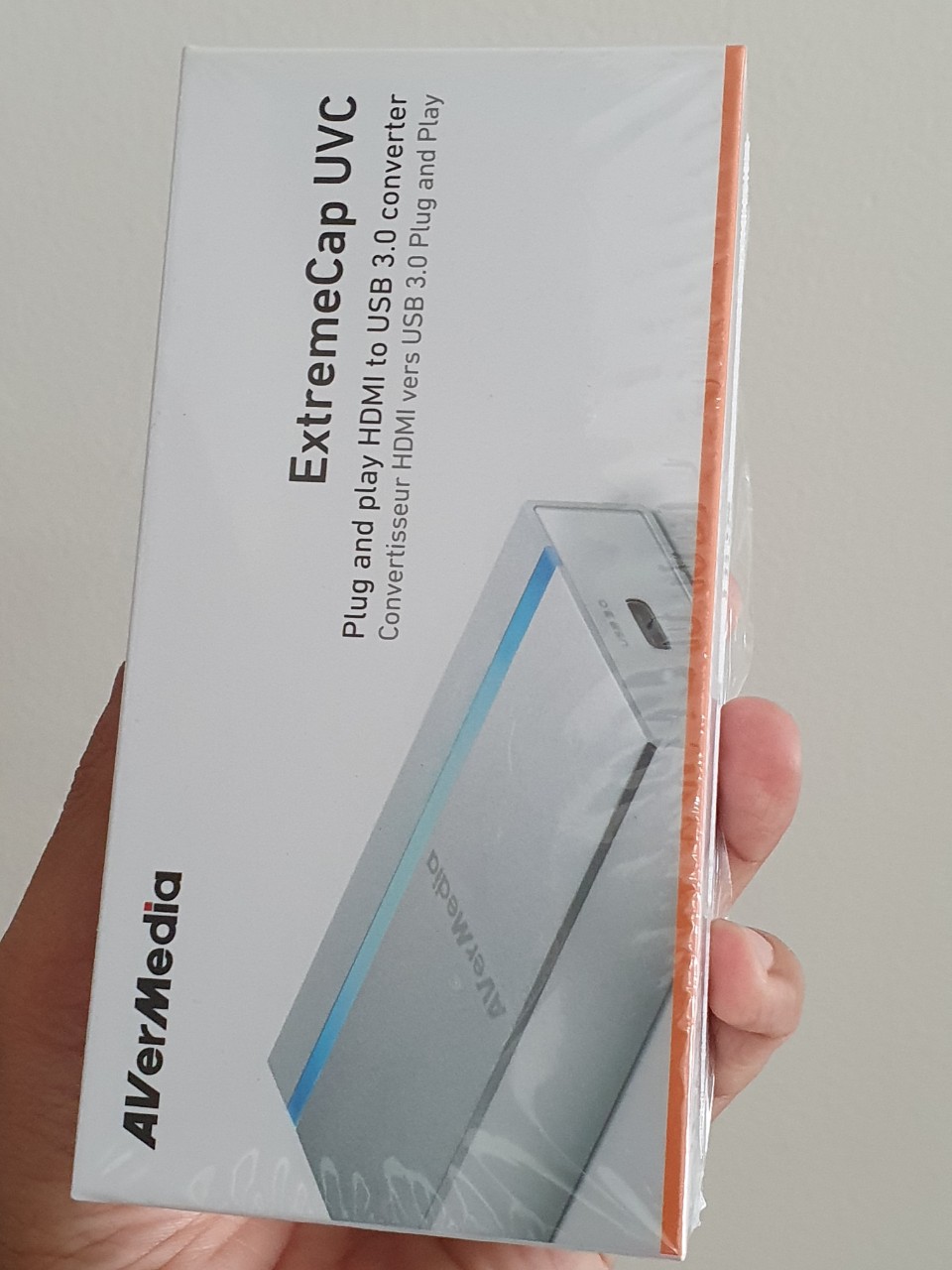

  In the Box

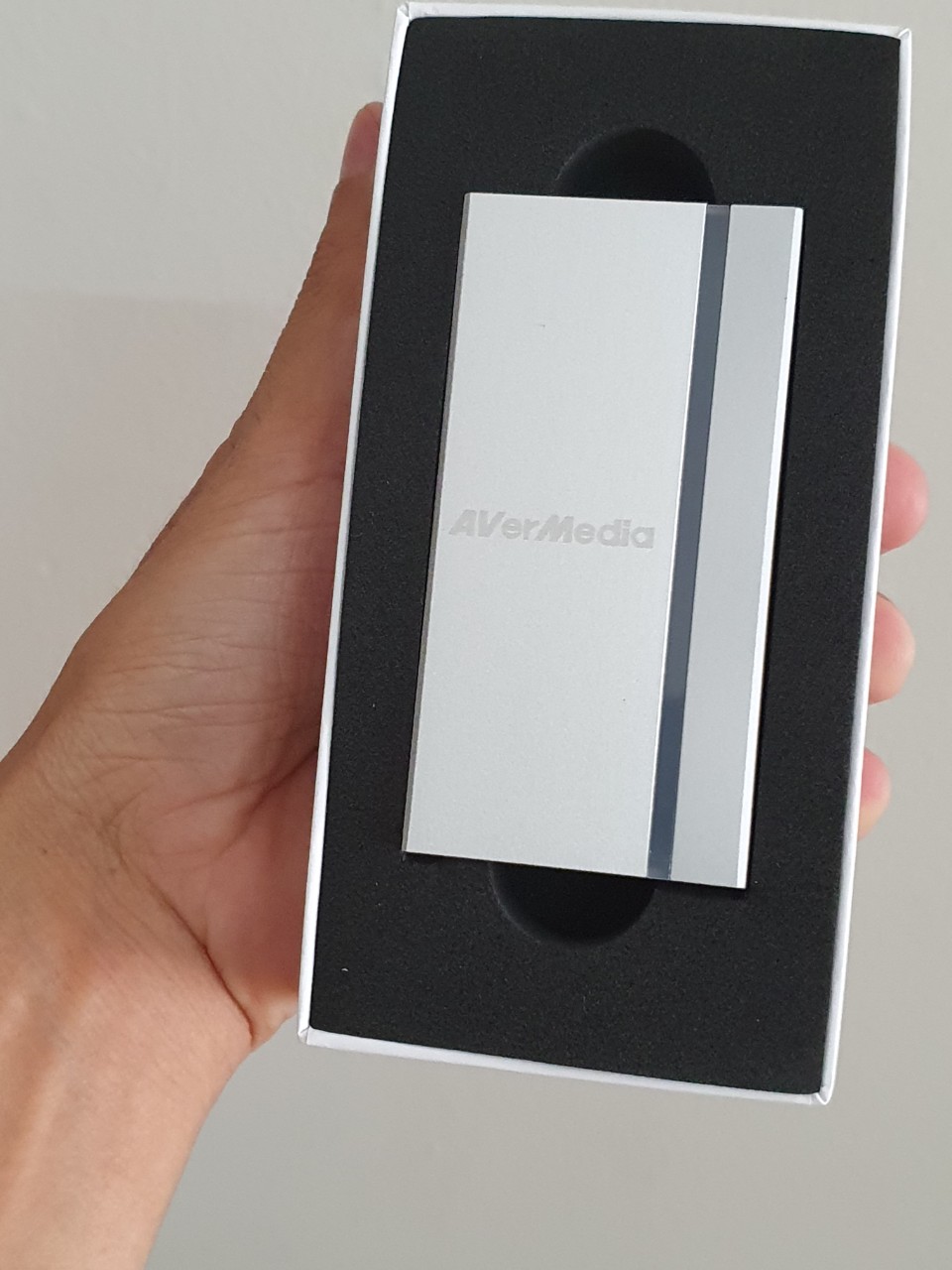

  ExtremeCap UVC

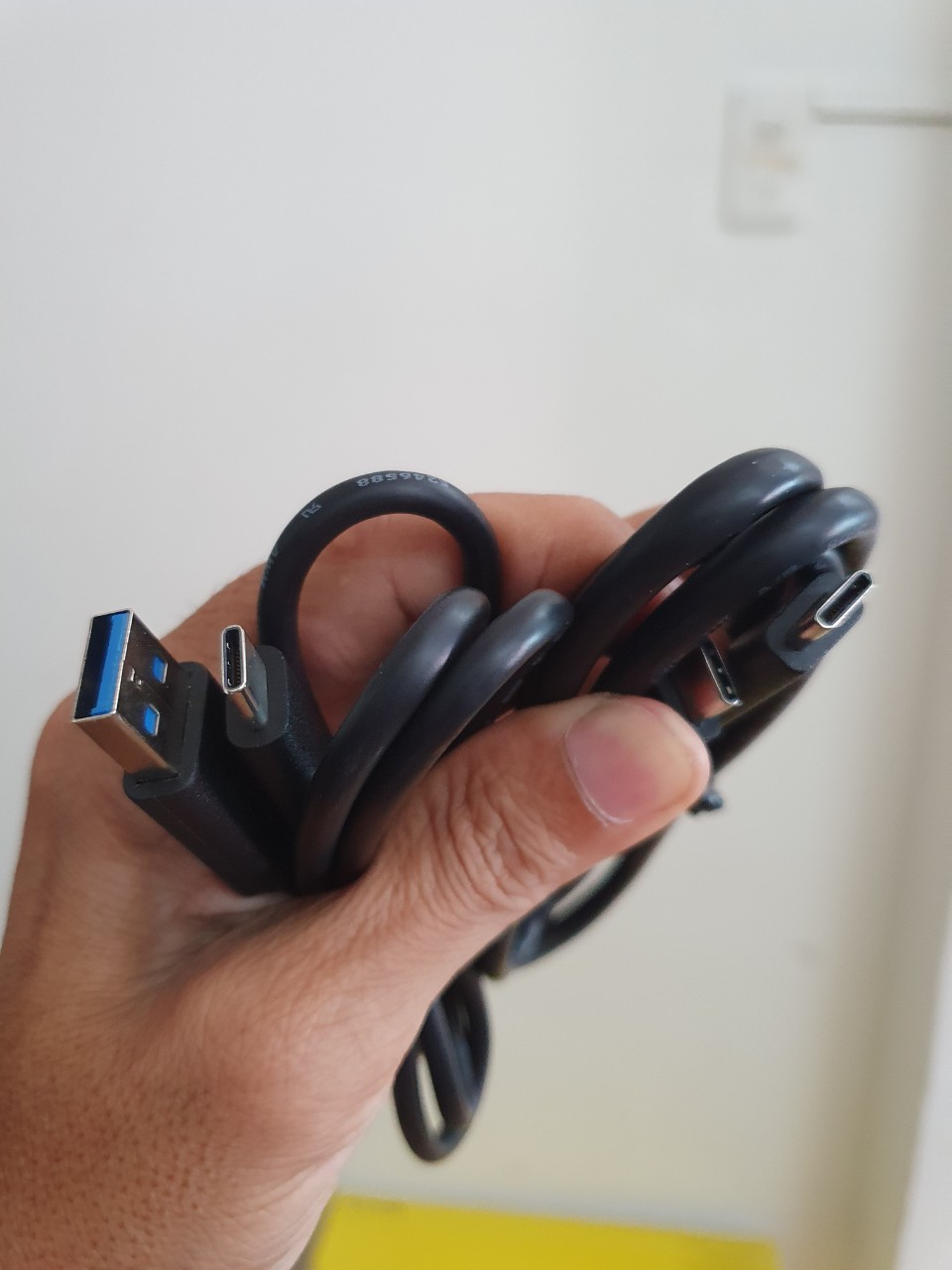

  USB Type-C cable
  Quick guide
