FEATURES:
1080P HD Resolution:
HD86A: Apply SONY 1/2.8” Progressive CMOS sensor, 2.07 Megapixels, can reach max.1920×1080 high resolution with frame rate up to 60fps.
HD86R: Apply SONY 1/2.8” Progressive CMOS sensor, 2.07 Megapixels, can reach max.1920×1080 high resolution with frame rate up to 60fps.
Abundant Outputs:
Support HDMI, 3G-SDI, LAN, USB3.0 HD 1080P output in sync.
Ultra High Frame Rate:
video output frame rate can reach 1080P 60fps.
Optical zoom can choose:
HD86A: 20x optical zoom+16x digital zoom
HD86R: 12x optical zoom+16x digital zoom
Low Light:
Brand new CMOS image sensor with ultra high S/N Ratio can effectively reduce image noise in low light conditions. Applying 2D&3D Digital noise reduction at the same time, it reduces image noise greatly, even in ultra low light conditions, it could still remain the frame clean and clear, S/N Ratio of the image is higher than 55dB.

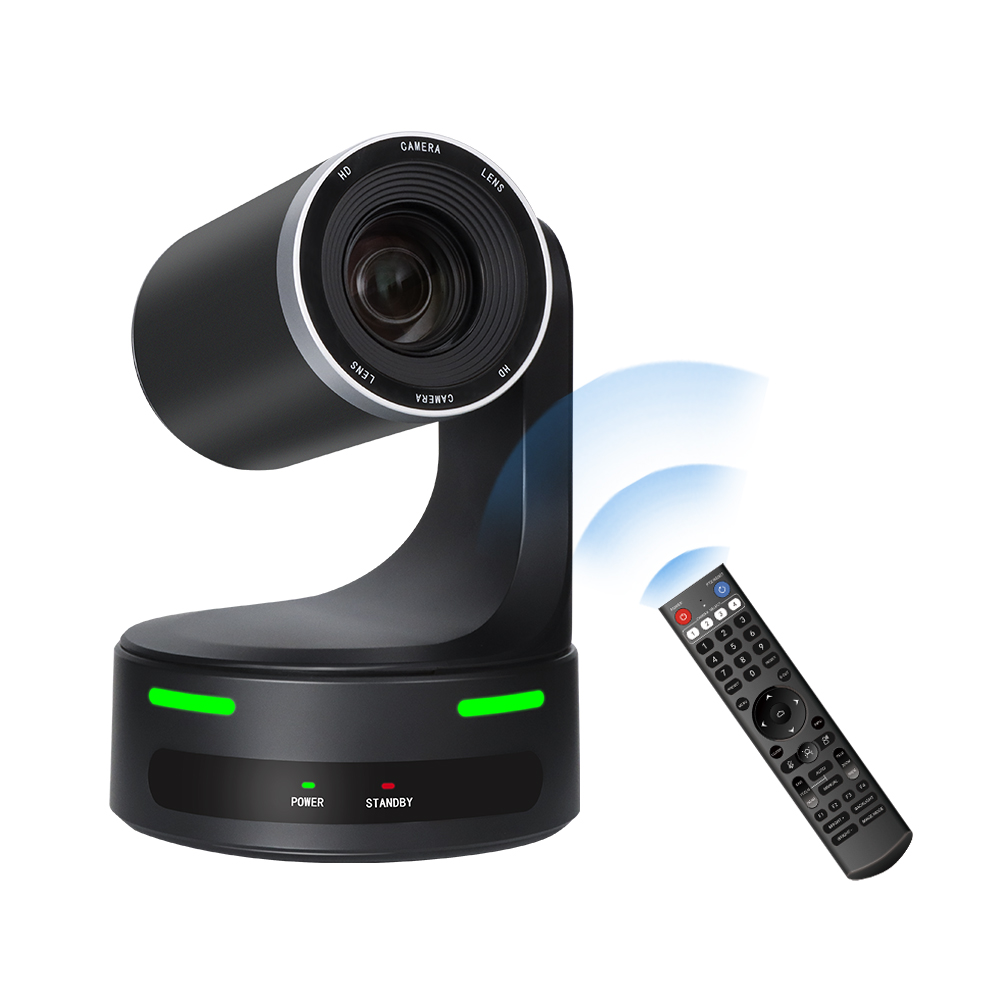

Remote Control:

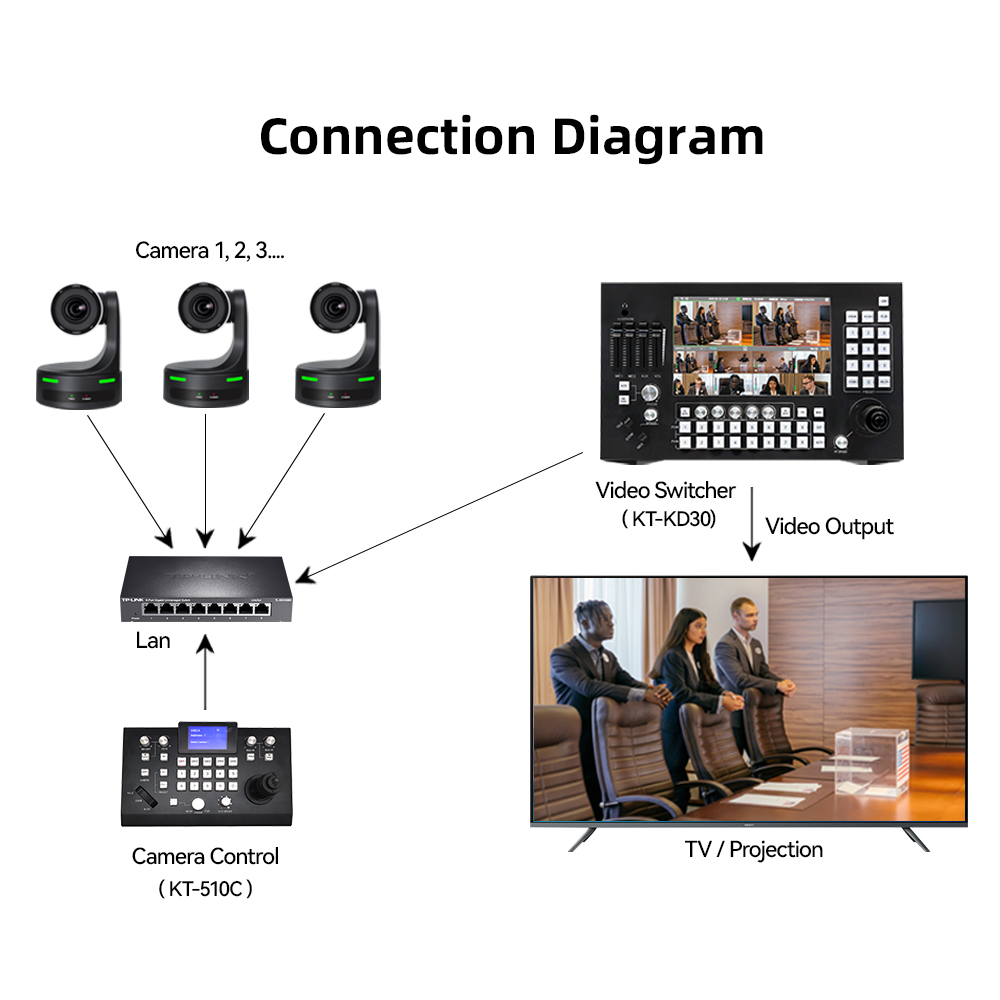

Use RS232, RS422/RS485 serial ports to control multiple cameras with daisy chain.
Signal transparent transmission function of infrared remote controller:
Apart from receiving its own infrared remote controller’s signals, it can also receive signals of the consumer’s infrared remote controller and send to video conference terminal via VISCA IN port.
Multi-installation Methods:
Wall mounting, desktop or ceiling mounting.
Specifications
| Camera | |
| Resolution | 1080p60/50, 1080p59.94/29.97, 1080p30/25, 1080i60/50, 1080i59.94, 720p60/50 |
| Image Sensor | SONY 1/2.8” Progressive CMOS |
| Scan Mode | Line by line |
| Lens | HD86A 20X optical zoom, f=5.2mm(w)~104mm(f)
HD86R 12X optical zoom, f=3.9mm(w)~46.8mm(f) |
| Focus System | Auto/Manual |
| Minimum Illumination | 0.5 Lux @ (F1.8, AGC ON) |
| Shutter Speed | 1/25s~1/10000s |
| White Balance | Auto/Manual/One-click/Indoor/Outdoor |
| Backlight
Compensation |
Support |
| Digital Noise
Reduction |
2D&3D Digital noise reduction |
| S/N Ratio | ≥55dB |
| Horizontal View Angle | HD86A 58.7°(W)～3.2°(T)
HD86R 72.5°(W)～6.5°(T) |
| Vertical View Angle | HD86A 33°~1.8°
HD86R 40.8°~3.7° |
| Horizontal Rotation Range | 355° |
| Vertical Rotation Range | -30°~+90° |
| Horizontal Rotation Speed Range | 1°~90°/s |
| Vertical Rotation Speed Range | 1°~90°/s |
| Electronic Flip | Support |
| Image Freeze | Support |
| POE Power Supply | 802.3af(optional) |
| Preset Position | 9 preset positions by IR remote controller, 200 preset positions by joystick controller or PC |
| Accuracy of Preset Position | 0.1°±10% |
| USB Features | |
| Protocol | UVC1.1, UAC1.0 |
| Operating System | Window7 and above, MacOS, Linux, Android |
| UVC Video Coding Format | YUY2, MJPEG, H.264, H.265 |
| UVC Video Resolution | 320×240, 640×480, 720×576, 800×600, 1280×720, 1920×1080, 3840×2160 and so on |
| UVC Video Frame Rate | Max.60 |
| Network Characteristics | |
| Code Stream | Main code stream*1，Auxiliary code stream*1 |
| Coding Format | H.264, H.265, MJPEG |
| Streaming Media Protocol | RTMP, RTSP, RTMPS, ONVIF, SRT, NDI|HX(optional) |
| Main Code Stream Resolution | 576P30, 720P25, 720P30, 720P50, 702P60, 1080P25, 1080P30, 1080P50, 1080P60 |
| Auxiliary Code Stream Resolution | 576P30, 720P25, 720P30 |
| Interface | |
| Video Output HD | 1 Line, HDMI: Version1.4
1 Line, 3G-SDI: SMPTE-274M(Level A), SMPTE-296M |
| USB Interface | 1 Line, USB 3.0, Type-B Socket |
| Network Interface | 1 Line, RJ45: 10M/100M Ethernet port |
| Other Input | 1 Line, Line In, 3.5mm AUDIO-IN |
| Control Mode | 1 Line, RS232 IN: 8 Pin Mini Din, up to 30 meters, VISCA/Pelco-D/Pelco-P Protocol |
| 1 Line, RS232 OUT: 8 Pin Mini Din, up to 30 meters, VISCA/Pelco-D/Pelco-P Protocol | |
| 1 Line, RS422/485 IN/OUT: Nine-core Phoenix Interface, up to 1200 meters, VISCA/Pelco-D/Pelco-P Protocol | |
| Power Interface | DC 12V IEC60130-10(JEITA Standard RC-5320A) TYPE4 |
| General Specifications | |
| Input Voltage | DC 12V |
| Input Current | Max.1.0A |
| Power Consumption | Max.12W(DC 12V) |
| Operating Temperature | 0~40℃ |
| Storage Temperature | -10-60℃ |
| Camera Dimensions | (L)161×(W)133×(H)181mm |
| Color | Black |
| Weight | 1200g |
| Accessories | DC 12V power adapter, IR Remote, Operation manual, RS-232C Cable, HDMI Cable, USB3.0 Cable, Ceiling bracket (Wall bracket optional) |
