Bộ điều khiển camera AVMATRIX PKC3000

Công ty TNHH TMĐT Chu Vũ chuyên cung cấp Sản phẩm AVMatrix Chính hãng giá tốt. Quý khách có nhu cầu vui lòng liên hệ: 0939 24 0939 để được tư vấn sản phẩm và giá tốt nhất tại thời điểm mua hàng.

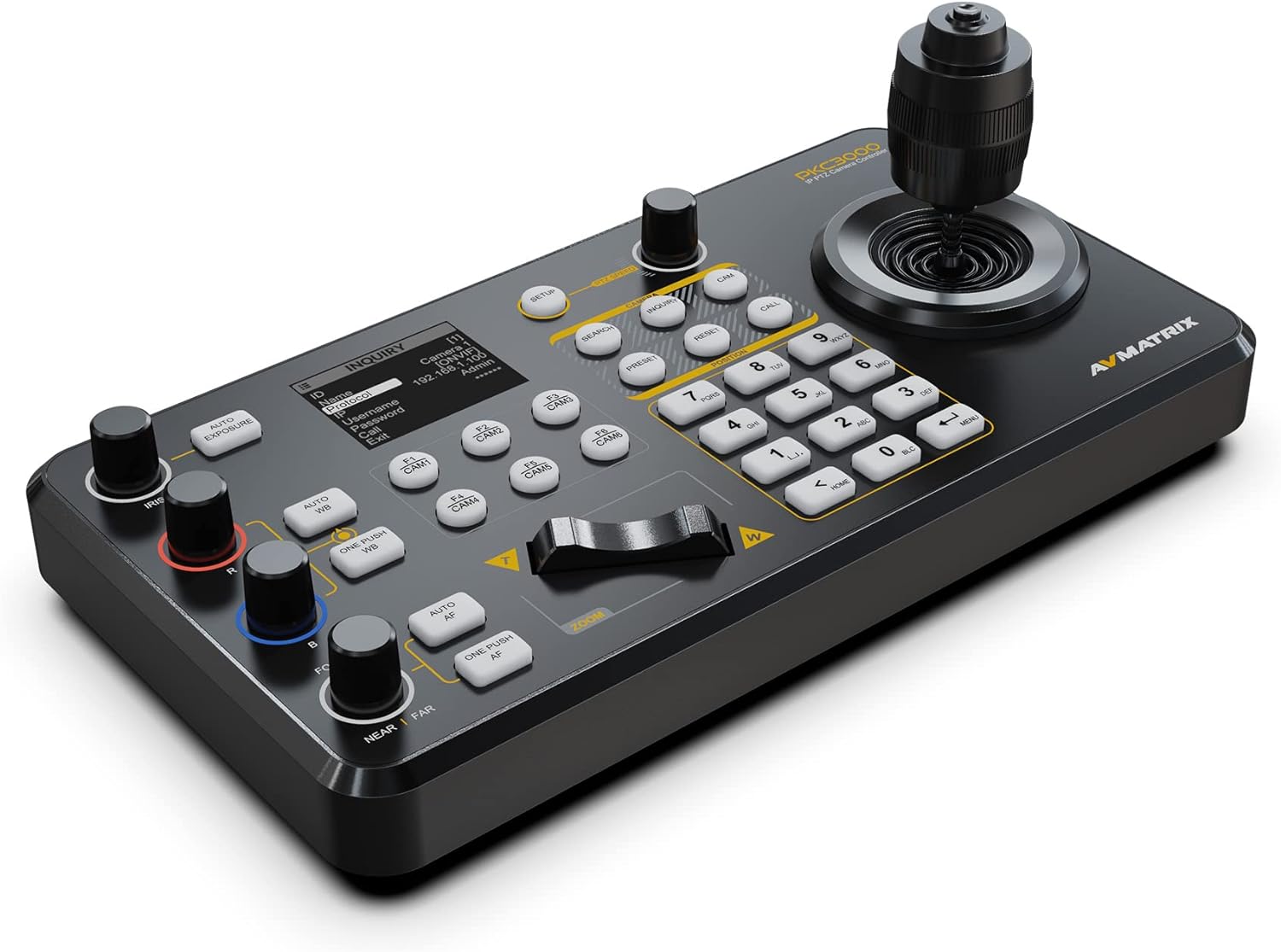

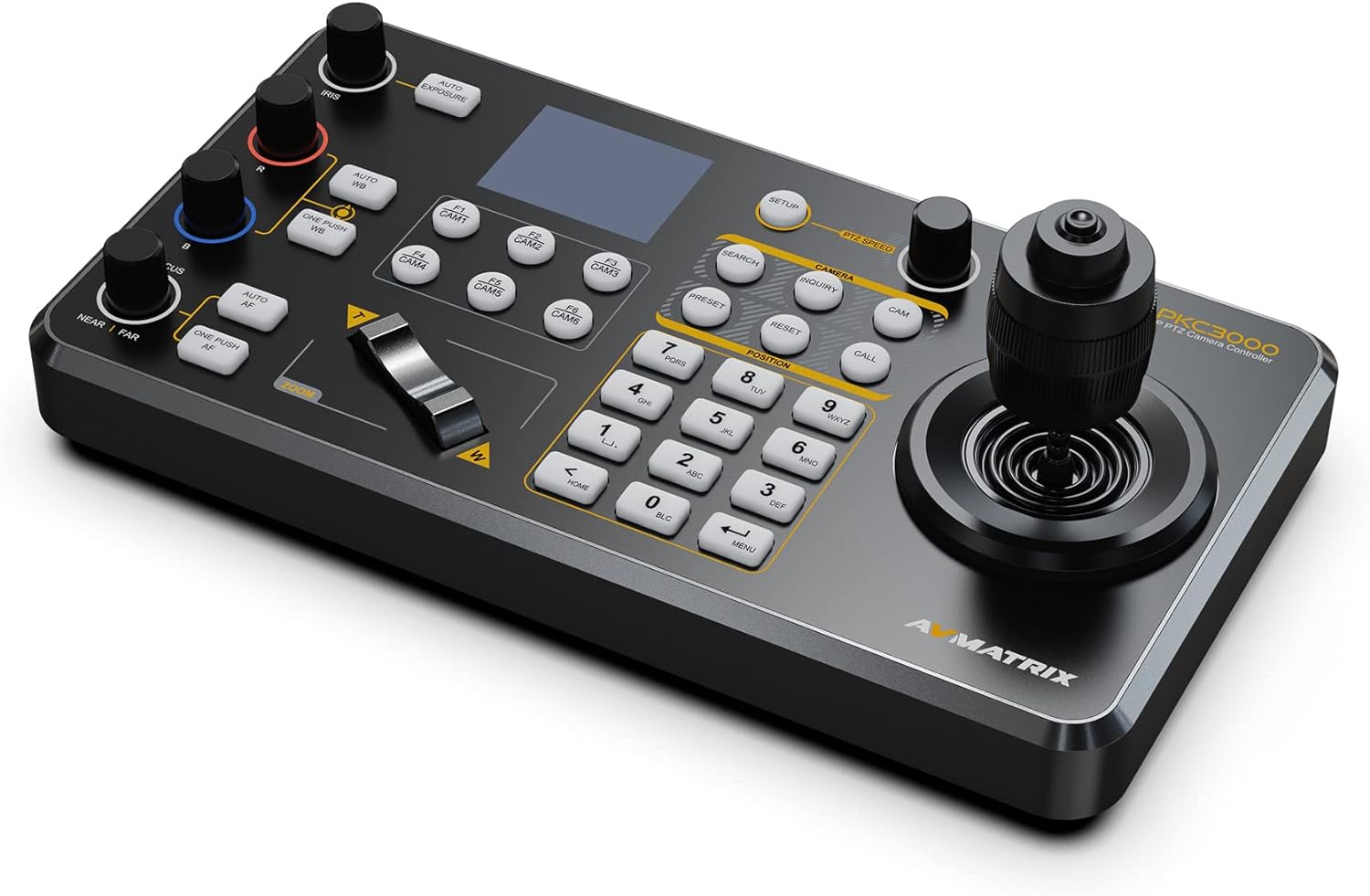

PKC3000 - Overview

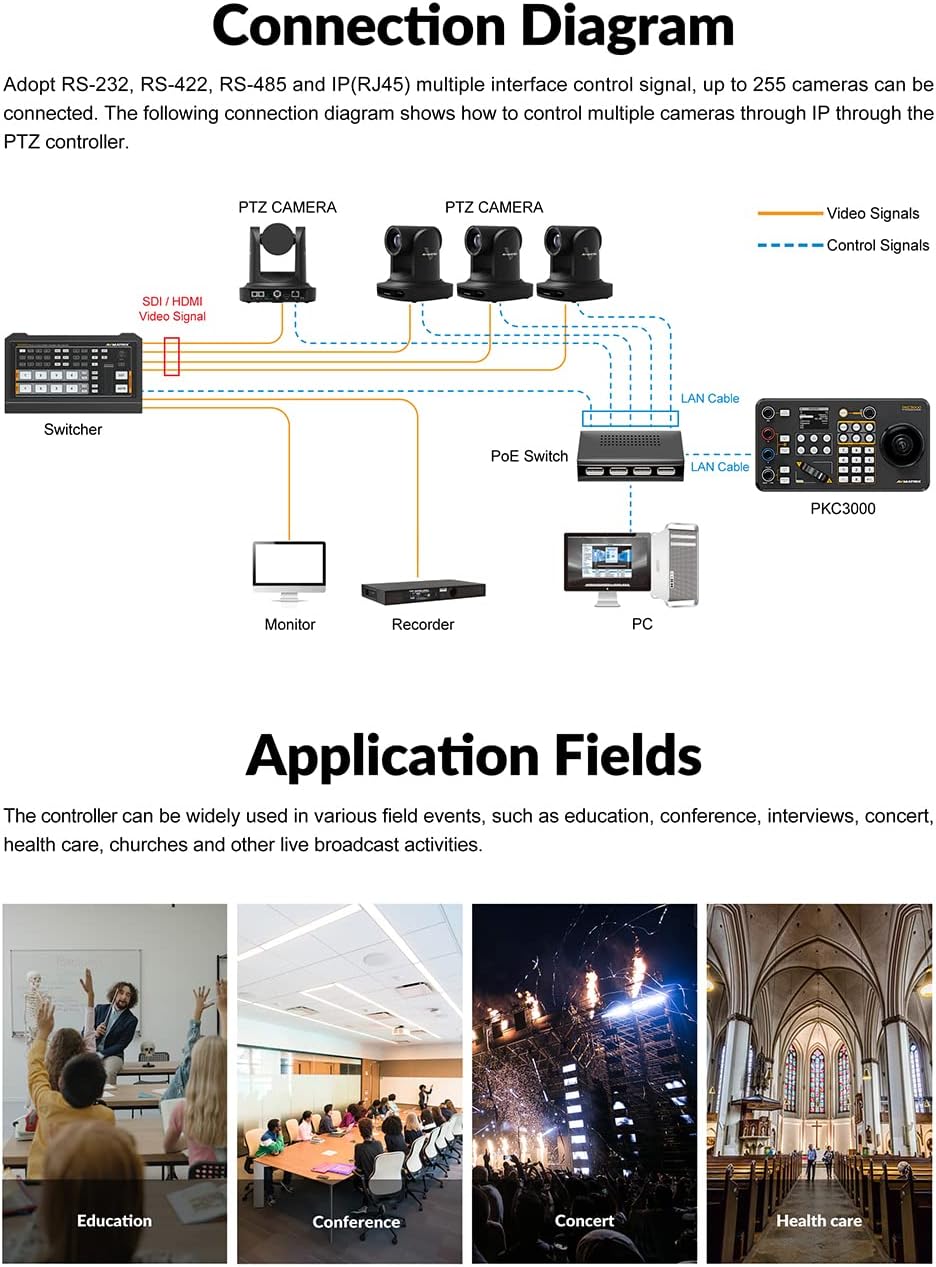

The AVMATRIX PKC300 has a variety of control interfaces including IP, RS-422/RS-485/RS-232. The rich control interface makes it easy to match camera connections of different interfaces. It offers cross protocol mix-control on one controller operating Protocol by VISCA, VISCA over IP, and Pelco P&D, as well as ONVIF. Control multiple different PTZ camera brands simultaneously, including AVMATRIX HuddleCamHD, PTZOptics, Sony, BirdDog, and NewTek.

• Features:

  • Cross protocol mix control with IP/ RS 422/ RS 485/ RS 232
  • Control protocol by VISCA, VISCA Ove r IP, Onvif and Pelco P&D
  • Control up to 255 IP cameras on one single network
  • 3 camera quick call up keys, or 3 user-assignable keys
  • Tactile feel with professional rocker/seesaw switch for zoom controling
  • Auto search available IP cameras in one network and assign IP addresses easily
  • Multi color key illumination indicator directs operation to specific functions
  • Tally GPIO output for indicating the camera be currently controlled

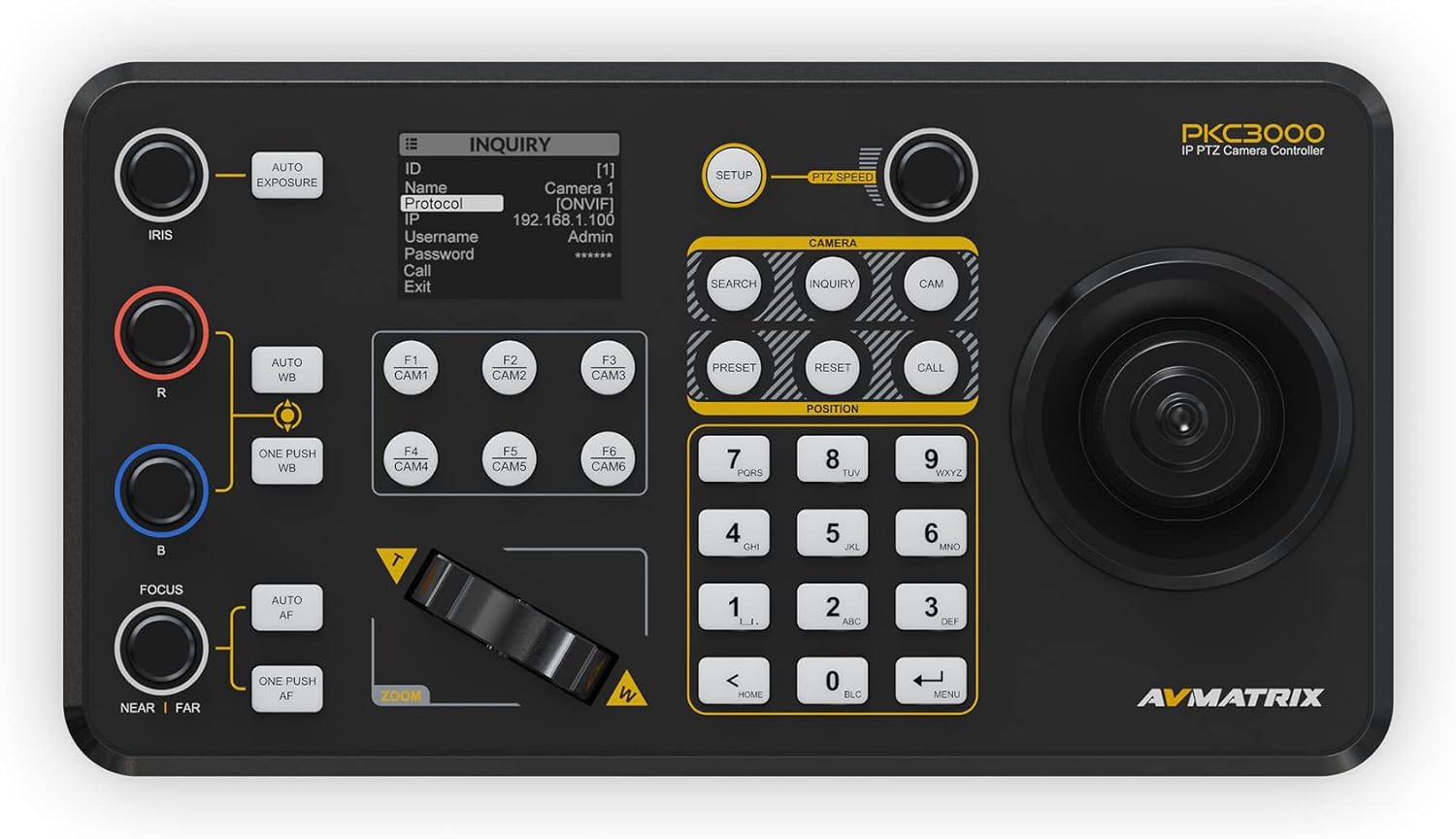

  • Aluminum alloy housing with 2.2 inch LCD display, joystick, 5 rotation button
  • Supports both PoE and 12V DC power supplies



• Specifications:

  • Interfaces: IP (RJ45), RS-232, RS-485/RS-422
  • Control Protocol: IP Protocol ONVIF, VISCA over IP, Serial Protocol Pelco-D, PELCO-P, VISCA
  • Serial Baud Rate: 2400, 4800, 9600, 19200, 38400 bps
  • Display: 2.2 inch LCD
  • Joystick: 4D joystick (Pan/Tilt/Zoom/Lock)
  • Camera Shortcut: 6-channel
  • Keyboard: User-assignable keys x6, rotation button x5, rocker x1, seesaw x1
  • Camera Address: Up to 255
  • Preset: Up to 255
  • Power: PoE/DC 12V
  • Power Consumption: PoE: 5W, DC: 5W
  • Working Temperature: -20°C ~ 60°C
  • Storage Temperature: -40°C ~ 80°C
  • Dimensions: 270mm x 145mm x 29.5mm / 270mm x 145mm x 106.6mm (with joystick)
  • Weight: 1181g



• Item Includes:

  • 1x AVMATRIX PKC3000 IP & Serial PTZ Camera Joystick Controller
