SDI Video Inputs
4 x bi-directional 12Gb/s SD/HD/2K/4K/8K. Supports single, dual link and quad link 4:2:2/4:4:4. 2D/3D switchable.
Công ty TNHH TMĐT Chu Vũ chuyên cung cấp Blackmagic Design Chính hãng giá tốt. Quý khách có nhu cầu vui lòng liên hệ: 0939 24 0939 để được tư vấn sản phẩm và giá tốt nhất tại thời điểm mua hàng.
Card Capture & playback Decklink được sử dụng rộng rãi trong các đài truyền hình , các filmstudio hiện nay
TÍNH NĂNG NỔI BẬT
DeckLink 8K Pro có bốn kết nối 4G-SDI liên kết quad và hoạt động ở tất cả các kích thước khung hình SDI HD, Ultra HD, 4K và 8K DCI. Bạn nhận được hỗ trợ cho 8 và 10-bit YUV 4: 2: 2, cũng như 10 và 12-bit RGB 4: 4: 4 với đầy đủ Rec. 2020 màu. Ngoài ra, bạn có thể làm việc với tốc độ lên đến 60 khung hình / giây ở HD, 4K và 8K. Bốn kết nối 12G-SDI hỗ trợ 16 kênh âm thanh nhúng mỗi kênh, tổng cộng 64 kênh. DeckLink 8K Pro là hoàn hảo cho thế hệ tiếp theo của độ phân giải cao, tốc độ khung hình cao!

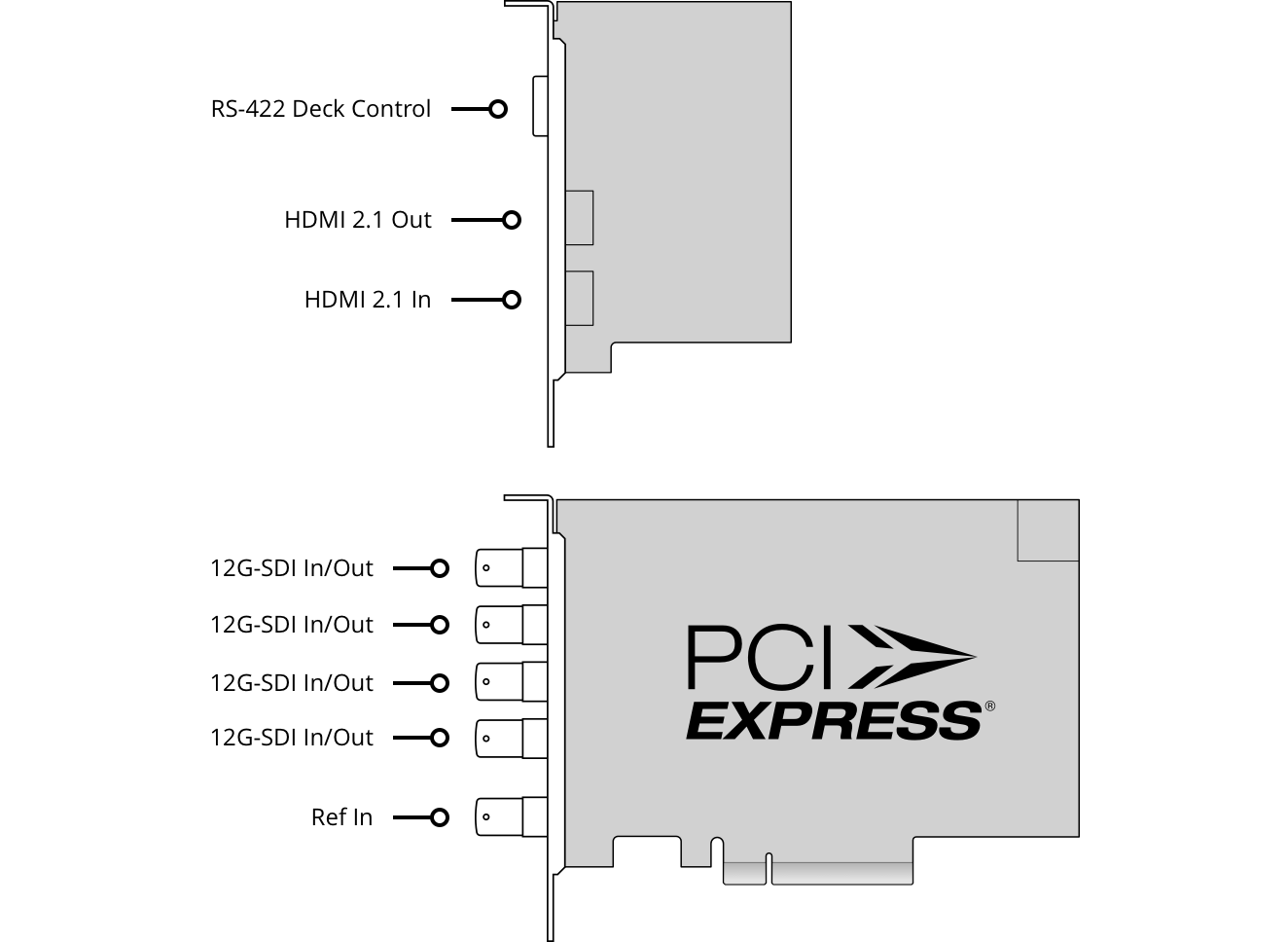

Connections
SDI Video Outputs
4 x bi-directional 12Gb/s SD/HD/2K/4K/8K. Supports single, dual link and quad link 4:2:2/4:4:4. 2D/3D switchable.
SDI Audio Inputs
16 Channels embedded in SD/HD/2K.
64 Channels embedded in 4K/8K.
SDI Audio Outputs
16 Channels embedded in SD/HD/2K.
64 Channels embedded in 4K/8K.
Sync Input
Tri-Sync or Black Burst.
Computer Interface
PCI Express 8 lane generation 3, compatible with 8 and 16 lane PCI Express slots.
Supported Codecs
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.
Software
Software Included
DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Internal Software Upgrade
Firmware built into software driver. Loaded at system start or via updater software.
Physical Installation
PCI Express 8 lane generation 3, compatible with 8, 16 lane PCI Express slots on Mac OS, Windows and Linux. Please check the Support pages to see the full system requirements.
Software Applications
DaVinci Resolve
Fusion
Final Cut Pro X
Adobe Premiere Pro CC
Avid Media Composer
Adobe After Effects CC
Avid Pro Tools
Steinberg Cubase
Autodesk Smoke
Adobe Photoshop CCOther supported applications include: The Foundry Nuke, Grass Valley Edius, Steinberg Nuendo, Sony Catalyst Production Suite, Tools On Air Just: Play & Live & In, Softron MovieRecorder & MReplay, Adobe Flash Media Live Encoder, Telestream Wirecast, Livestream Producer, Resolume Arena, Magix Vegas Pro & Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink PowerDirector, Vidblaster X & Studio & Broadcast, Uniplay One & CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster, DevTek Easy Media Suite, Metus Ingest, Boinx Software MimoLive, Cinegy Capture Pro, vMix Live, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard & Coral CG, Glookast Capturer, Open Broadcaster Software Studio, Nautilus NEMO3D.
8K playback and capture is application dependent, check with your software vendor.
Video Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2K Video Standards
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 29.97p, 2K DCI 30p, 2K DCI 50p, 2K DCI 59.94p, 2K DCI 60p
2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF, 2K DCI 29.97PsF, 2K DCI 30PsF
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4K Video Standards
4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p, 4K DCI 29.97p, 4K DCI 30p, 4K DCI 50p, 4K DCI 59.94p, 4K DCI 60p
8K Video Standards
8K 23.98p, 8K 24p, 8K 25p, 8K 29.97p, 8K 30p, 8K 50p, 8K 59.94p, 8K 60p
8K DCI Video Standards
8K DCI 23.98p, 8K DCI 24p, 8K DCI 25p, 8K DCI 29.97p, 8K DCI 30p, 8K DCI 50p, 8K DCI 59.94p, 8K DCI 60p
3D SDI Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 29.97p, 2K DCI 30p, 2K DCI 50p, 2K DCI 59.94p, 2K DCI 60p
2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF, 2K DCI 29.97PsF, 2K DCI 30PsF
4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p, 4K DCI 29.97p, 4K DCI 30p, 4K DCI 50p, 4K DCI 59.94p, 4K DCI 60p
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M SMPTE 372M, SMPTE 425M, SMPTE 435, SMPTE 2081, SMPTE 2082, ITU-R BT.656 and ITU-R BT.601.
SDI Metadata Support
RP 188/SMPTE 12M-2 and closed captioning.
Audio Sampling
Television standard sample rate of 48 kHz at 24-bit.
SDI Video Sampling
4:2:2, 4:4:4
SDI Color Precision
8, 10, 12-bit RGB 4:4:4 in all modes up to 8K DCI 30p, and 8, 10-bit YUV 4:2:2 in all modes.
Color Space
REC 601, REC 709, REC 2020.
Multiple Rate Support
SDI video connections are switchable between SD/HD/2K/4K and 8K.
Processing
Colorspace Conversion
Hardware based real time on output.
3D Processing
Left eye/right eye dual stream capture & playback.
Real Time Effects
DaVinci Resolve, Final Cut Pro X internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
Physical Specifications
Operating Systems
macOS 10.12 Sierra,
macOS High Sierra 10.13 or later.
Windows 7, 8.1 and 10, all 64-bit.
Linux
Power Requirements
Power Consumption
19 Watt
EMC Certifications
EMC, FCC, CE, KCC and C-Tick
Environmental Specifications
Operating Temperature:
5° to 50° C (41° to 122° F)
Storage Temperature:
-20° to 60° C (-4° to 140° F)
Relative Humidity:
0% to 90% non-condensing

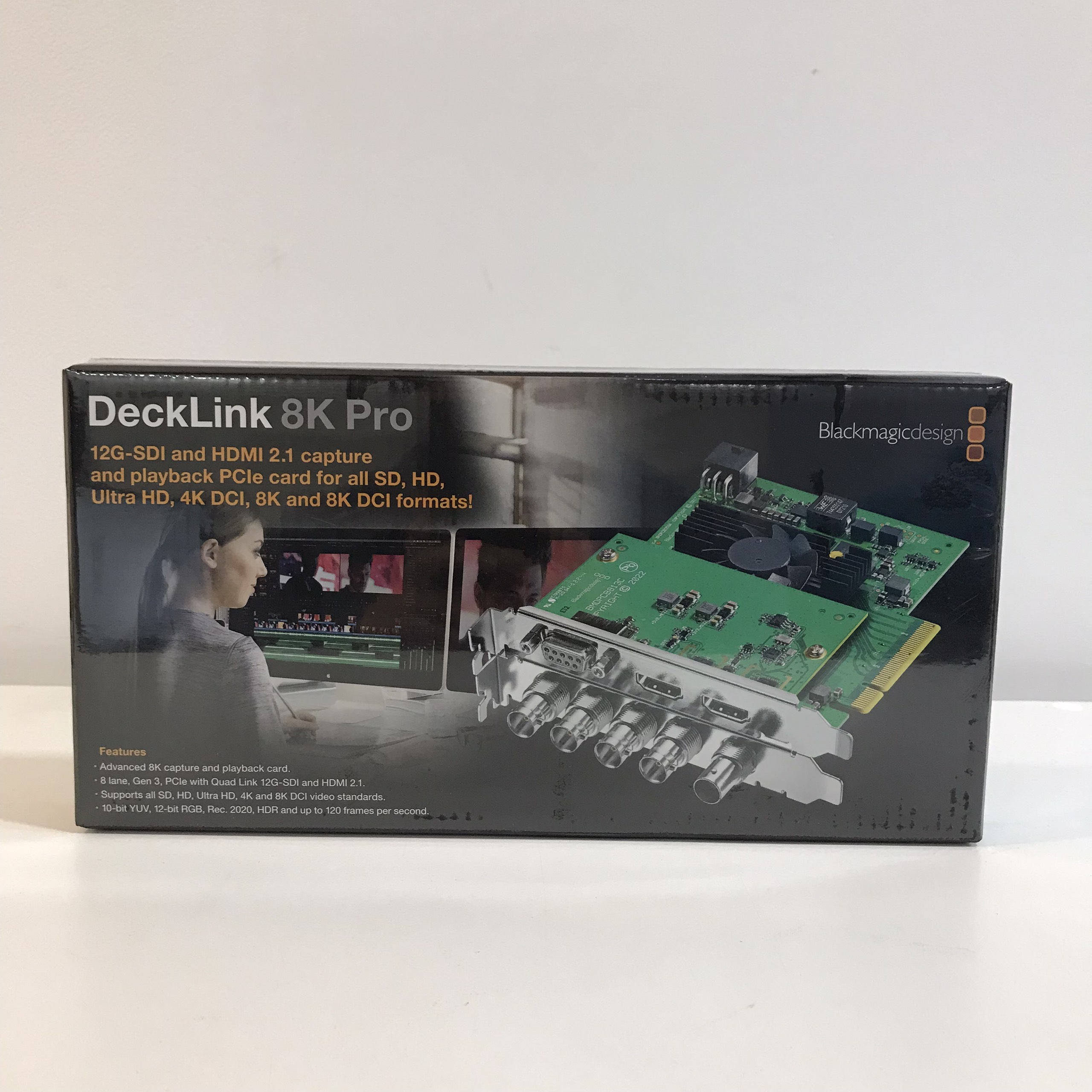

What's Included
DeckLink 8K Pro
SD card with software and manual
