- Bàn trộn video Devicewell HDS7305
Công ty TNHH TMĐT Chu Vũ chuyên cung cấp Bàn trộn video DevicewellChính hãng Quý khách có nhu cầu vui lòng liên hệ: 0939 24 0939 để được tư vấn sản phẩm và giá tốt nhất tại thời điểm mua hàng.
Speaking of webcasting, everyone is already familiar with it. Today, the development of webcasting has gradually built a huge live broadcast system, and national live broadcasts have swept across the country. From the initial Tiktok and Kuaishou short video performance entertainment, to the later Taobao live broadcast, Tiktok live broadcast network delivery, corporate display, education and training and other performance behaviors. Today, the national live broadcast has evolved into a combination of leisure and entertainment, sales promotion, and image display. It has become an indispensable way of life in our lives. So how to use a lower cost to create a professional live broadcast studio, presumably this is the concern of many anchors and businesses. A professional live broadcast room can help the anchor play a multiplier role in the live broadcast.

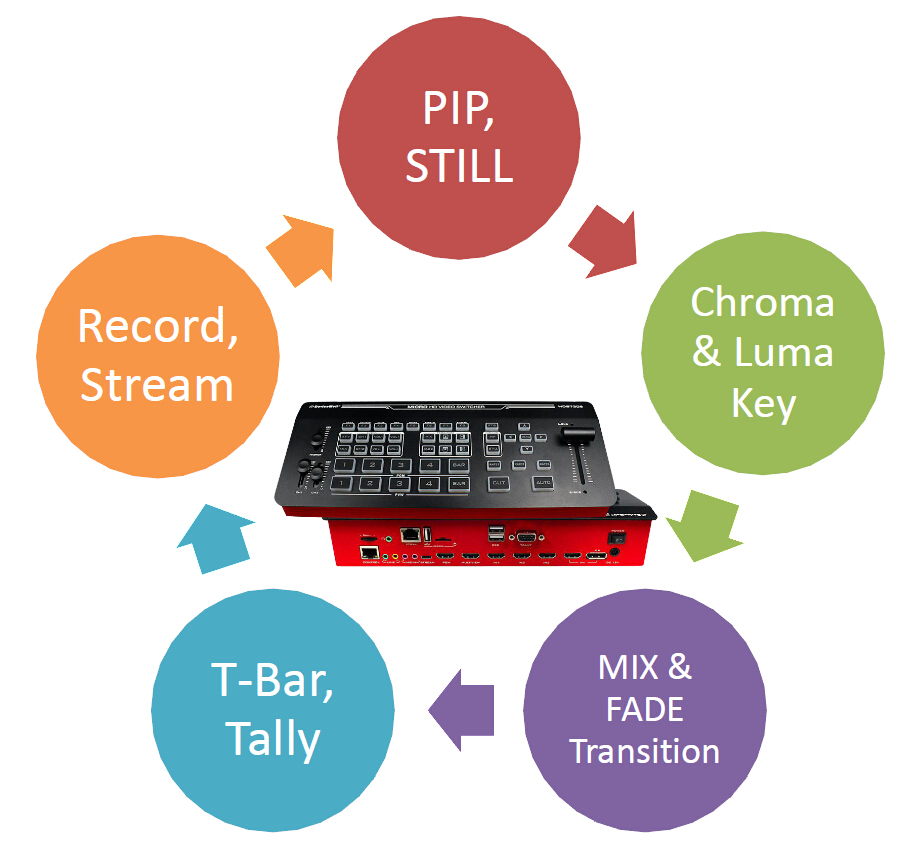

The live studio artifact introduced to you today is based on the needs of small live studios to create a director switcher that integrates video recording, keying, and network port push. It is easy to operate, does not need to know a lot of professional knowledge, put aside tedious software operation skills, only need to switch control according to the most intuitive buttons, you can easily create a live broadcast feast.

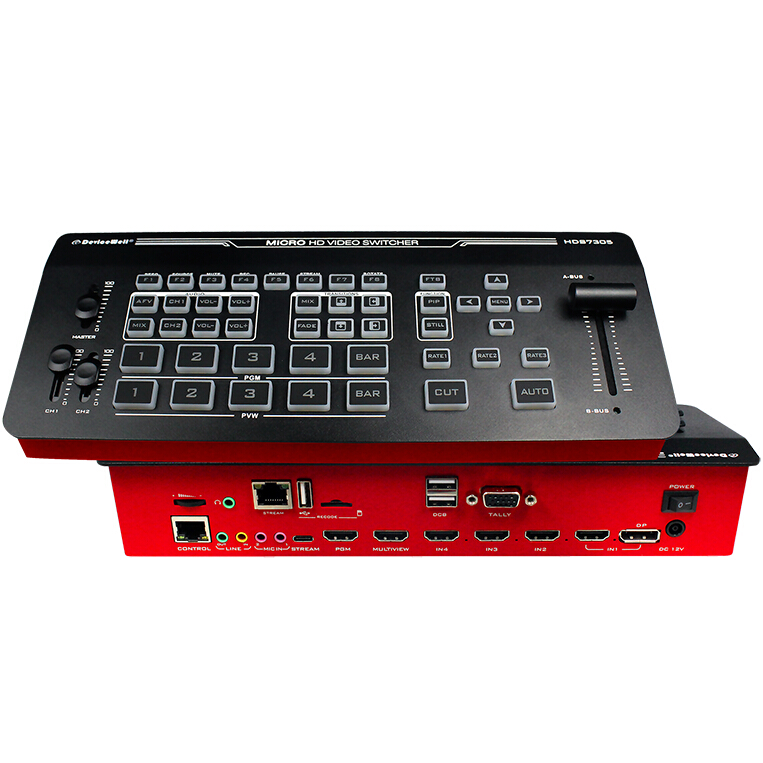

HDS7305 supports 4 HDMI + 1 DP signal input, a total of 5 input video signals. It can output 1 HDMI external multiview signal synchronously. HDS7305 5-channel switcher supports HDMI embedded audio + external analog audio, which can be embedded in the output HDMI signal after mixing. It can also be output from the analog port. HDS7305 5-channel director switcher supports audio follow and audio assignment mode optional. The resolution of all input signals is automatically adapted, and the output signal resolution can be selected as required, and the operation is quite flexible.

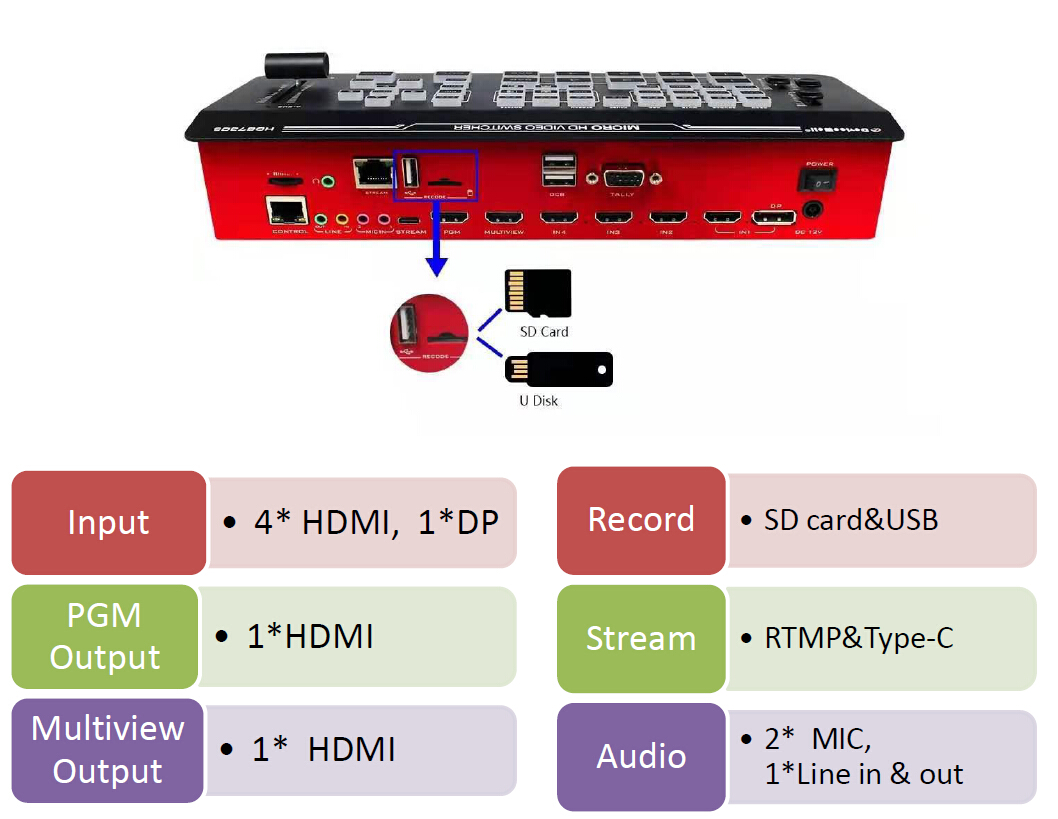

PRODUCT INTERFACES:
INTERFACE DESCRIPTION:
1. Supports two streaming methods: network port and USB port. Users can choose one of two methods to push the network through the network port or USB interface.
2. Support 1 HDMI multiview, understand the latest situation of each signal through multiview, switch to more exciting camera playback in time, and refuse blind cutting.
3. Support TALLY call system (a group of TALLY interface), support DCB control, you can use the DCB interface to connect Devicewell wireless TALLY lights, or you can cascade the equipment through the DCB interface, use this function to cascade 2 units with the same DCB function Other models of switchers. (Currently, only Devicewell series switchers with DCB interface function are supported for cascading)

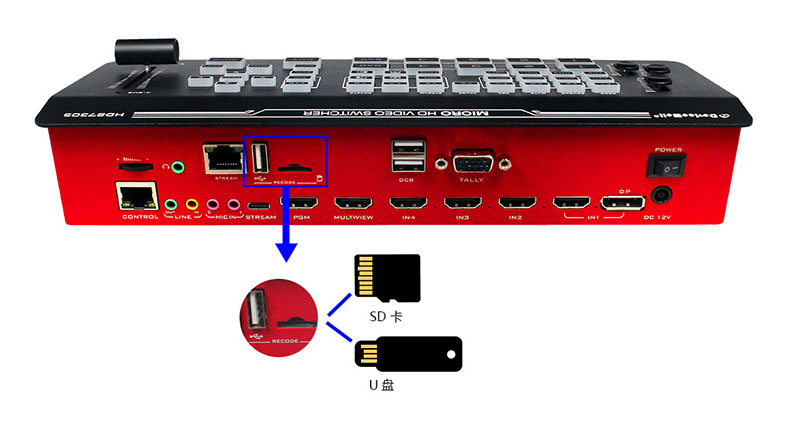

4. Support SD card or U disk recording. Use this function to save live video to SD card or U disk. The recording method provides SD card or U disk recording, which is convenient for users to choose. The video function is more convenient for users to save video materials.
5. Support audio monitoring, the device has an audio monitoring port, which is convenient for users to adjust the volume and monitor live sound effects independently.
6. Support RJ45 network port upgrade. When HDS7305 has a new program update, users can use the network port to connect to the computer for one-click upgrade, which is convenient and fast.

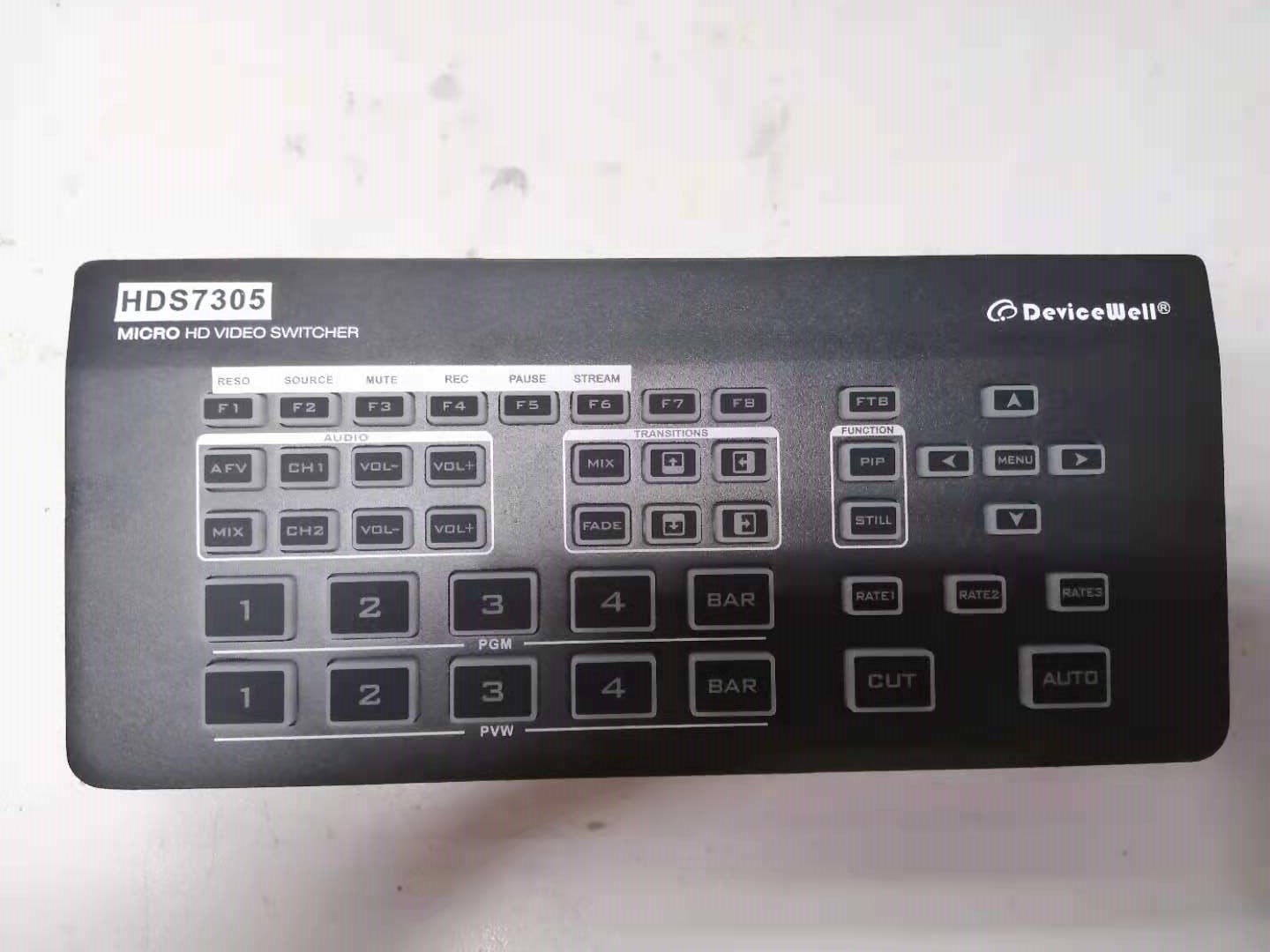

CONTROL PANEL:
