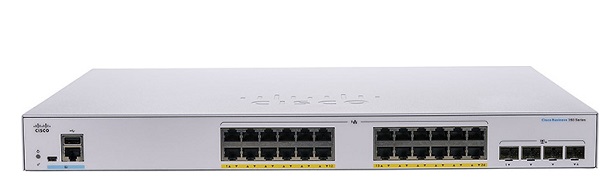

Thiết bị mạng Cisco CBS350-24FP-4X-EU

CBS350-24FP-4X-EU ~~33.900.000₫~~ 26.300.000₫

24-Port Gigabit Ethernet + 4-Port 10G SFP+ PoE Managed Switch CISCO CBS350-24FP-4X-EU - Support 24 10/100/1000 PoE+ ports with 370W power budget and 4 10Gigabit SFP+. - Switching Capacity: 128Gbps. - Stacking: Up to 4 units in a stack. Up to 192 ports managed as a single system with hardware failover. - Jumbo frames:...

Số lượng:

- +

24-Port Gigabit Ethernet + 4-Port 10G SFP+ PoE Managed Switch CISCO CBS350-24FP-4X-EU

- Support 24 10/100/1000 PoE+ ports with 370W power budget and 4 10Gigabit SFP+.

- Switching Capacity: 128Gbps.

- Stacking: Up to 4 units in a stack. Up to 192 ports managed as a single system with hardware failover.

- Jumbo frames: Frame sizes up to 9K bytes. The default MTU is 2K bytes.

- MAC table: 16K addresses.

- Cabling type: Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T.

- Flash: 256 MB.

- CPU: 800MHz ARM.

- DRAM: 512MB.

- Dimensions (W x D x H): 445 x 345 x 44 mm.

- Weight: 4.6kg.

Đặc tính kỹ thuật

Model	CBS350-24FP-4X-EU
Performance
Capacity in millions of packets per second (mpps) (64-byte packets)	95.23 mpps
Switching capacity	128Gbps
Stacking
Hardware stacking	Up to 4 units in a stack. Up to 192 ports managed as a single system with hardware failover
High availability	Fast stack failover delivers minimal traffic loss. Support link aggregation across multiple units in a stack
Plug-and-play stacking configuration/management	Active/standby for resilient stack control Autonumbering Hot swap of units in stack Ring and chain stacking options, auto stacking port speed, flexible stacking port options
High-speed stack interconnects	Cost-effective high-speed 10G fiber interfaces
General
Jumbo frames	Frame sizes up to 9K bytes. The default MTU is 2K bytes
MAC table	16K addresses
Hardware
Total System Ports	24 x Gigabit Ethernet + 4 x 10G
RJ-45 Ports	24 x Gigabit Ethernet
Combo Ports (RJ45 + Small form-factor pluggable [SFP])	4 x SFP+
Number of Ports That Support PoE	24
Power Dedicated to PoE	370W
Console port	Cisco standard mini USB Type-B/RJ45 console port
USB slot	USB Type-A slot on the front panel of the switch for easy file and image management
Buttons	Reset button
Cabling type	Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T
LEDs	System, Link/Act, PoE, Speed
Flash	256 MB
CPU	800 MHz ARM
DRAM	512 MB
Packet buffer	1.5 MB
Power consumption (worst case)
System Power Consumption	110V=47.14W 220V=47.01W
Power Consumption (with PoE)	110V=451.8W 220V=437.4W
Heat Dissipation (BTU/hr)	1,544.34
Environmental
Unit dimensions (W x D x H)	445 x 345 x 44 mm
Unit weight	4.6 kg
Power	100-240V 50-60 Hz, internal, universal
Certification	UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Operating temperature	-5° to 50°C
Storage temperature	-25° to 70°C
Operating humidity	10% to 90%, relative, noncondensing
Storage humidity	10% to 90%, relative, noncondensing
Acoustic noise and Mean Time Between Failure (MTBF)
FAN (Number)	1
Acoustic Noise	25°C: 34.8 dBA
MTBF at 25°C (hours)	698,220
